Marathon Electric X216

B0042GF3YG

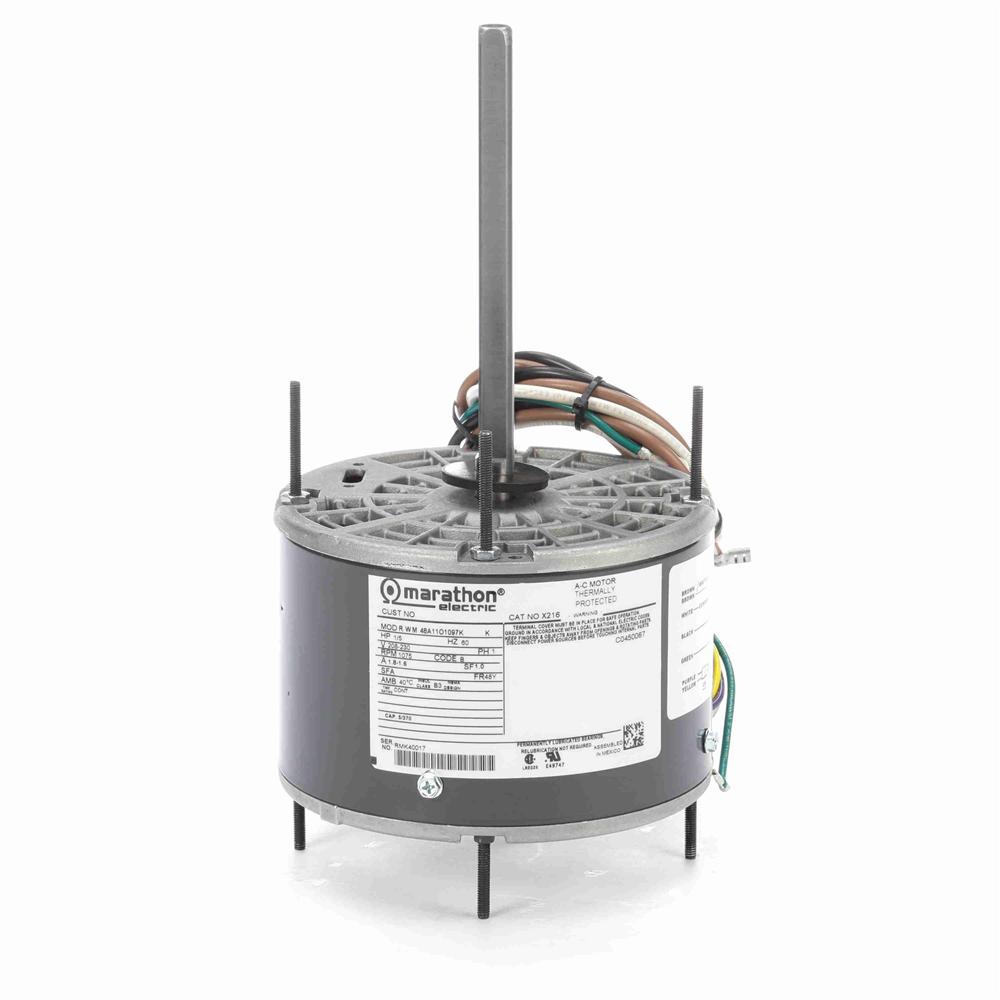

Marathon X216 48Y Frame OEM Rheem/Ruud Motor, Single Phase PSC, Thru-Bolt Mount, Open Air Over, Shaft Dimension 1/2" x 6", 1.6 amp, 1/5 hp, 1075/1 RPM, 208-230V

Marathon X216 48Y Frame OEM Rheem/Ruud Motor, Single Phase PSC, Thru-Bolt Mount, Open Air Over, Shaft Dimension 1/2" x 6", 1.6 amp, 1/5 hp, 1075/1 RPM, 208-230Vzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1097
Amps1.8-1.6
BearingsBall
Capacitor5MFD/370VAC Required
Current Rating1.8 to 1.6 A
Duty CycleContinuous
Efficiency55, 0.55
EnclosureOPAO
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Frame48Y
Frequency60 Hz
Gross Weight10 lbs
Horsepower Rating0.20 HP
HP1/5
Hz60
Insulation ClassB
Insulation TypeClass B
Manufacturer Model #048A11O1097
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor Shell Length3.25"
MountingStud
Mounting OrientationHorizontal
Mounting TypeRound - Extended Studs
Number of Speeds1
Overall Length9.81"
Phase1, 1 Phase
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1075 RPM, 1075
Service Factor1
Shaft Diameter1/2"
Shaft Length6.06"
Ship Weight10 lbs.
Special FeaturesService Factor - 1
StandardsUL Recognized
Supply Voltage208-230 VAC
Thermal ProtectionAutomatic
TypePermanent Split Capacit.
UPC Code722856048912
Voltage208-230
Volts208, 230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoX216-MARA45.9675In StockMarathon Electric10.045.96 @ 75
thumbzoomMRO Supply226794946.22In StockMarathon Electric46.2 @ 2
us.rs-online.com7223824156.551In StockMarathon Motors56.55 @ 1
thumbzoomemotorpro.comX216108.271In StockMarathon10.0108.27 @ 1
thumbzoomelectricmotorwholesale.comX216141.012MARATHON141.0 @ 1
thumbzoomGuardianMARSX216173.881In StockMarathon173.88 @ 1
industrialmotors.comX216251.4135MARATHON ELECTRIC251.4 @ 1
