Schneider Electric Square D 9080GR6

B000E2FY0A

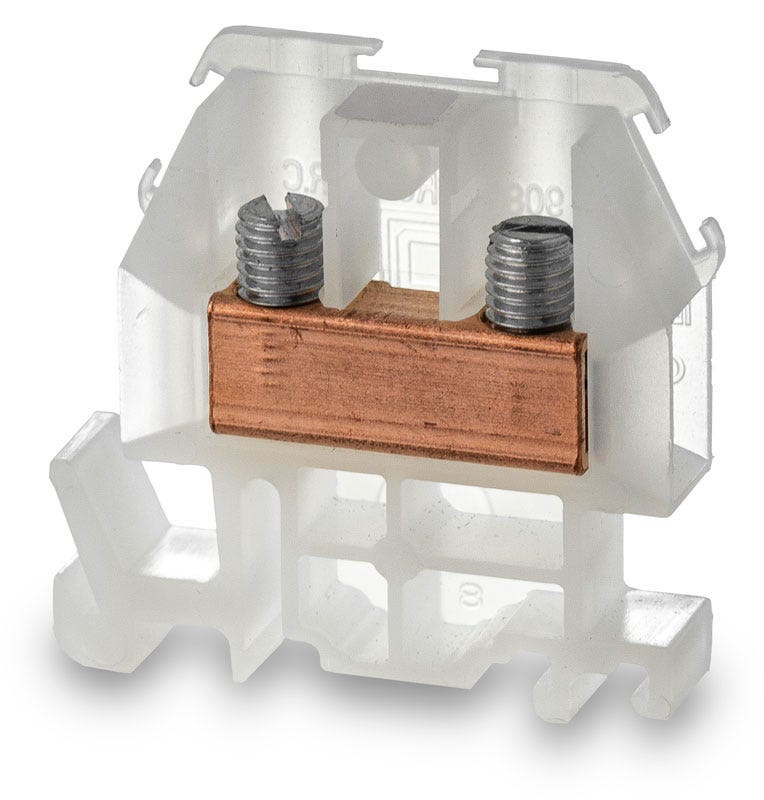

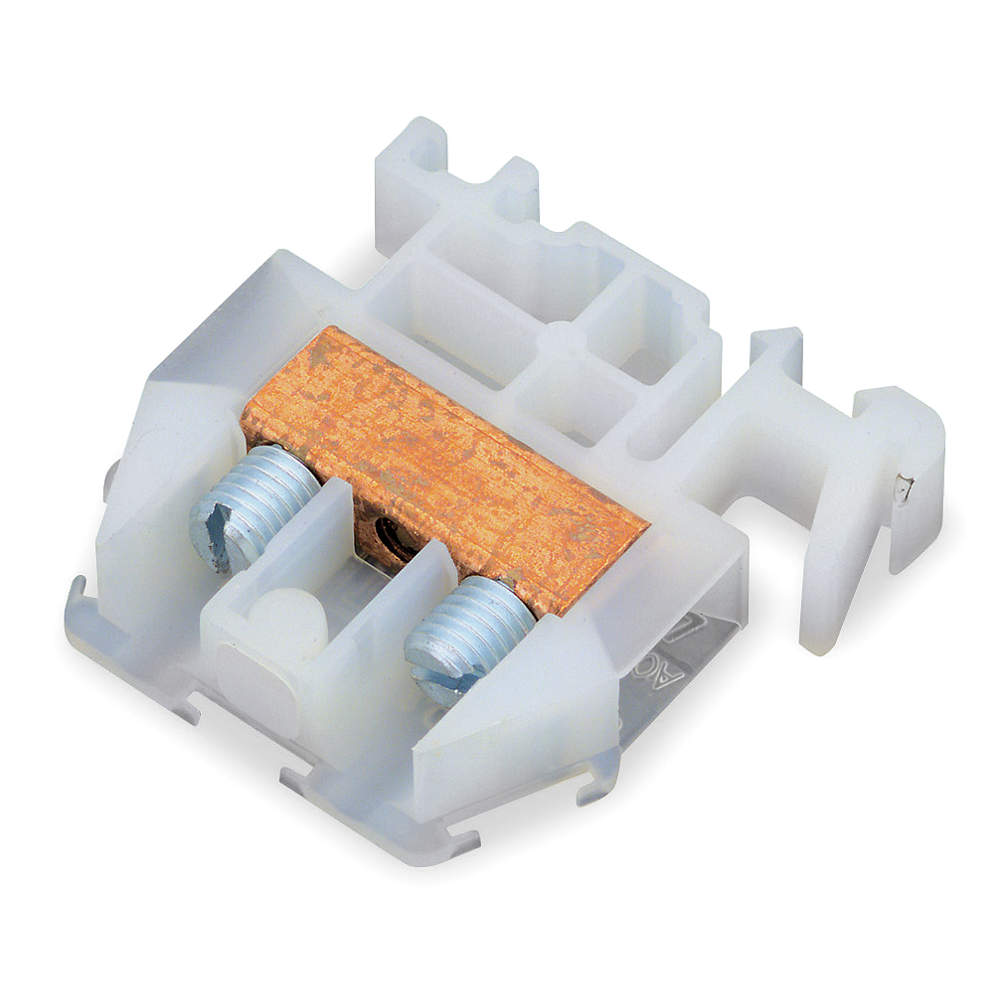

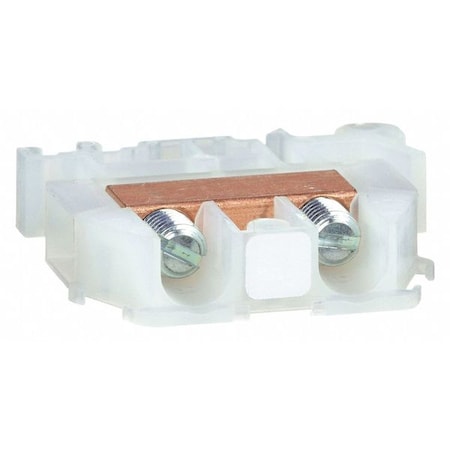

Square D 9080GR6 Terminal Block, 60 Amp

Square D 9080GR6 Terminal Block, 60 Ampzoom

Attributes

Key Value
[Ue] Rated Operational .600 V AC/DC
Ambient Air Temperature.-40-257 ?F
Amperage60
Amps60 A
Application9080G,GM6B
Awg GaugeAWG 22...AWG 8 copper
AWG Range22 - 8
Block MaterialNylon
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog Number9080GR6
CategoryConnectors, Interconnec.
Channel Size35mm/GH
China Rohs RegulationPro-active China RoHS d.
ColorNatural
Color FamilyNatural
ConditionNew
ConnectionLug copper 18-20 lbf.in.
Connection TypeScrew Clamp
Connections - Terminals.AWG 22...AWG 8 copper)
Country of OriginMX - Mexico, Mexico
Current - UL60 A
Current Rating60 A
Depth1.72 in, 0.35 in
DescriptionTERMINAL BLOCK 600V 60A.
Detailed DescriptionTerminal Block Connecto.
Digi-Key Part Number4008-9080GR6-ND
Disconnect Type-
ECCNEAR99
Electrical Connectioncopper box lugs
Enclosure MaterialNylon block
End Barrier5B361
Eu Rohs DirectiveCompliant
Family SeriesSquare D Miscellaneous
Features-
For Channel Rail Size35 mm
For Fuse Diameter3 1/32 in
For Maximum Wire Size8 AWG
For Minimum Wire Size22 AWG
Fuse Type-
Gross Weight0 lbs
GTIN00785901000716
Gtin785901000716
Height1.82 in
Height (in)0.35
ItemTerminal Block
Item Number9080GR6
Item TypeTerminal block;GM6B
Length (in)1.82
Line Rated Current60-60 A UL || 60-60 A C.
Localisation On Devicestandard
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number9080GR6
Manufacturer Product Nu.9080GR6
Manufacturer Standard L.1 Weeks
MaterialNylon block, Nylon
Material - InsulationPolyamide (PA), Nylon
Material Flammability R.-
Max Wire Size8 AWG
Max. Wire Size8 AWG
Mercury FreeYes
MfrSchneider Electric
Min Wire Size22 AWG
Min. Wire Size22 AWG
MountingDIN Rail
Mounting Support35 mm DIN rail || 9080G.
Mounting TypeDIN Rail
Net Weight0.01 kg, 0 lbs
Number of Connections2
Number of Levels1
Number of Poles1
Number of Positions1, 2
Number Of Terminal Bloc.34 per foot
Overall Depth0.35 in
Overall Length1.82 in
Overall Width1.72 in
PackageBox
Pin Spacing8.89 mm
Poles1
Primary TypeDIN Rail Mount
Product CertificationsUL recognized E60616 CC.
Product CompatibilityGM6B
Product Or Component Ty.Terminal Block
Product StatusActive
Protection Typefingersafe DIN 57470
Pvc FreeYes
Quantity Per Setset of 50
Range Of Product9080G
Rated Current60A
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesSquare D, 9080 Series
Size0.35
Special Featuresfingersafe DIN 57470
StandardUL recognized E60616 CC.
StandardsUL94V2, CE, CSA Approve.
Stripping Length-
Temperature Rating-40 Degrees to 275 Degr.
Terminal - Width8.0mm
Terminal ConnectionSolderless Box Lug
Terminal TypeSolderless Box Lug
Termination StyleScrew
Toxic Heavy Metal FreeYes
TypeFeed Through, Feed-Thro.
UNSPSC39121410
Upc785901000716
UPC785901000716
UPC Code785901000716
Voltage600 VAC/DC, 600V AC
Voltage - IEC-
Voltage - UL600V
Voltage Rating600 V AC/DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width1.72 in, 0.35 in, 43.69.
Width (in)1.72
Wire Gauge or Range - A.8-22 AWG
Wire Gauge or Range - m.-
Wire Size8 to 22 AWG, AWG 22...A.
Wire Size Ranges22 AWG - 8 AWG
Wire Termination TypeBox Lug

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Radwell9080-GR61.78505SCHNEIDER ELECTRIC1.78 @ 50
steinerelectric.com314182.1515Square D?2.15 @ 5
thumbzoomZoroG05902312.1915191Square D0.032.19 @ 5
Graybar882503332.251215Square D (Schneider Electric)2.2512 @ 5
thumbzoomGalco9080GR6-SQD2.3615Square D2.36 @ 5
thumbzoomindustrialrefrigerationparts.com9080GR62.4915Square D2.02.49 @ 5
us.rs-online.com700077462.61502Square D2.6 @ 5
thumbzoomsuperbreakers.com9080GR62.7815Square D2.78 @ 5
thumbzoomNewark11R79523.181165SQUARE D BY SCHNEIDER ELECTRIC3.18 @ 5
thumbzoomDigi-Key171524363.2894505Schneider Electric3.2894 @ 50
thumbzoommayerelectric.comSQD9080GR63.3415SQUARE D0.0223.34 @ 5
thumbzoommostelectric.com9080GR63.351179SQUARE D/TELEMECANIQUE3.35 @ 5
Grainger5B3583.5126130SQUARE D3.5 @ 5
thumbzoomsustainablesupply.comC12036333.7115Square D0.033.71 @ 5
thumbzoomcrescentelectric.com1591864.141224Square D4.14 @ 5
thumbzoomRaptor SuppliesAG7CGY5.02807515SQUARE D5.028075 @ 5
thumbzoomNational Supply Network696822016.14815Square D6.148 @ 5
AmazonTPB000E2FY0A10.37152Square D10.37 @ 5

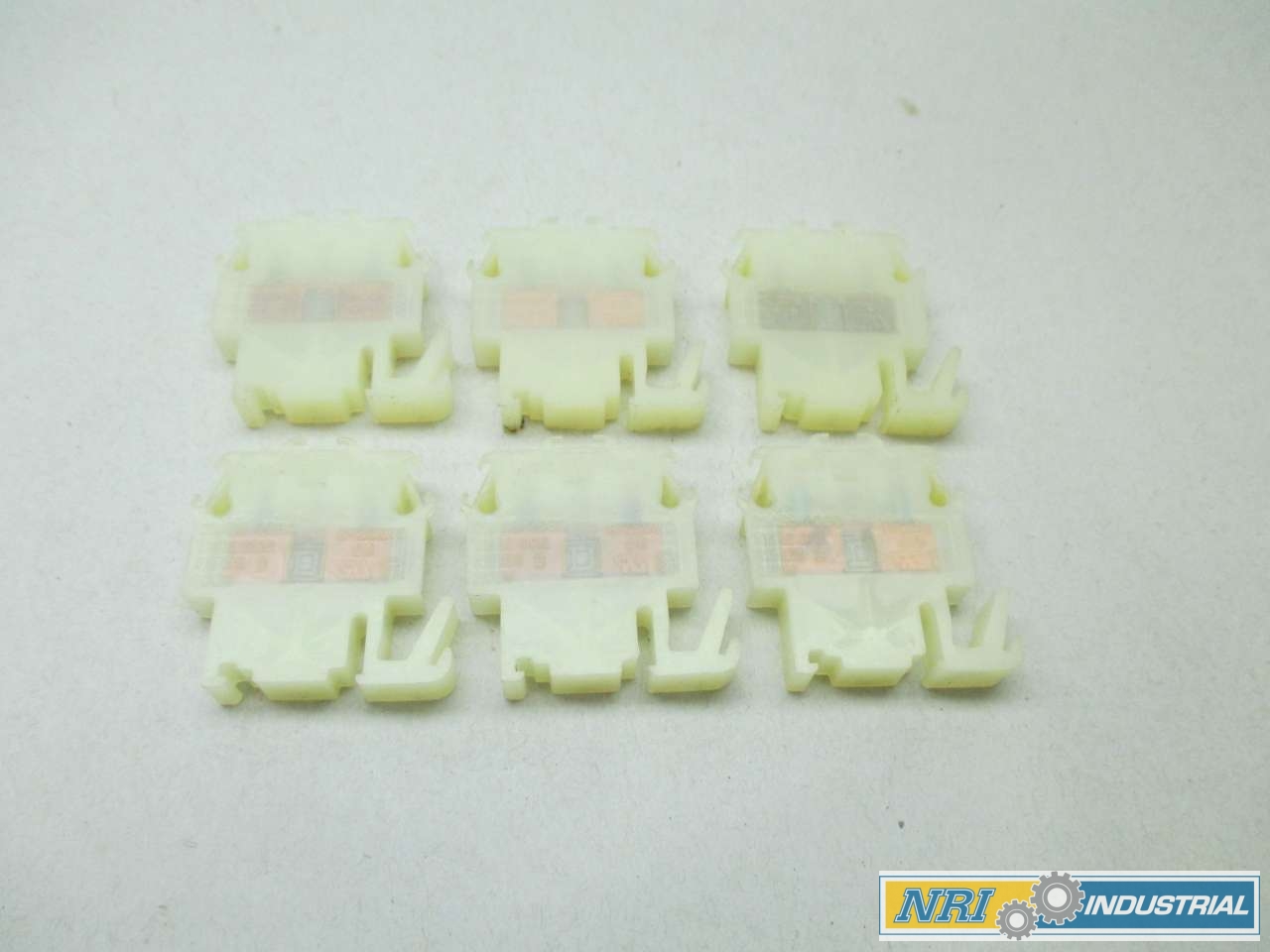

thumbzoomNRI IndustrialD44252327.4815SQUARE D27.48 @ 5
