- mpnRA18-6FL
- brandname: Sta-Kon
- manufacturername: Sta-Kon

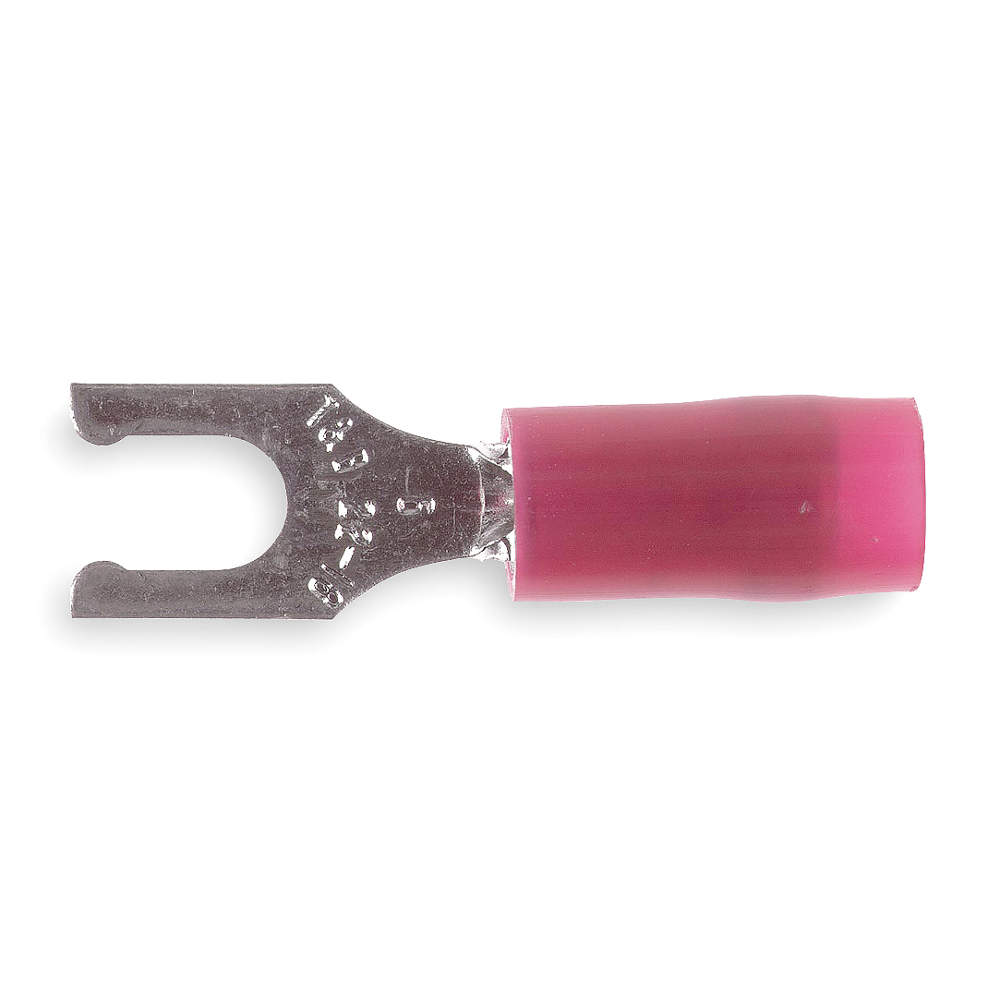

Fork Terminal, Lockng, 6 Stud, Red, PK100
- Brand: Sta-Kon
- PartNumber: RA18-6FL
- Model: RA18-6FL
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: STA-KON
- Label: STA-KON
Attributes
| Key | Value |
|---|
| Barrel Length | 0.46 in |
| Barrel Style | Insulation Grip |
| Compatible Grainger Par. | 3KH46, 3KH52, 4XMR5 |
| Compatible Manufacturer. | ERG4001, WT112M, WT145A. |
| Compatible with Product. | Crimper, Ratchet Crimper |
| Compatible with Series | RA2213 |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| For Wire Size | 16 AWG, 18 AWG, 20 AWG,. |
| Insulation Color | Red |
| Insulation Colour | Red |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Item | Fork Terminal |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Operating Tempe. | 221 Degrees F |
| Maximum Voltage | 600V |
| Maximum Wire Size | 16 AWG |
| Minimum Wire Size | 22 AWG |
| Overall Length | 0.86 in |
| RoHS Compliant | No |
| Seam | Overlapped |
| Seam Style | Brazed |
| Special Features | Locking Fork Terminals . |
| Standards | UL, CSA, CSA Certified,. |
| Stud Size | #6 |
| Terminal Connection | Crimp |
| Terminal Shape | Locking Fork |
| Terminal Type | Locking |
| Termination Style | Crimp |
| Tongue Length | 0.00 - 0.50 inches, 0.4. |
| Tongue Width | 0.25 in |
| Tongue Width - Wire Con. | 0.25 in |
| UPC Code | 786210887302 |
| Wire Range | 22 to 16 AWG |
| Wire Size Range | 22 AWG - 16 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| us.rs-online.com | 72250441 | 0.93 | 10 | 3120 | | Sta-Kon by ABB | | 0.93 @ 100 |
| grainger.ca | TBSRA18-6FL | 1.79274082 | 1 | 100 | | STA-KON | 0.2 | 1.79274082 @ 100 |
 | Zoro | G2668066 | 65.69 | 1 | 108 | | Sta-Kon | 0.2 | 65.69 @ 100 |
 | sustainablesupply.com | C1194626 | 69.61 | 1 | 100 | | Sta-Kon | 0.2 | 69.61 @ 100 |
| Grainger | 3KG14 | 99.95 | 1 | 100 | 50 | STA-KON | | 99.95 @ 100 |
 | Raptor Supplies | AC9UTJ | 142.618554 | 1 | 100 | | STA-KON | | 142.618554 @ 100 |
