Walter Tools VCMT160408-FM4 WSM10S

B08XNYWXB4

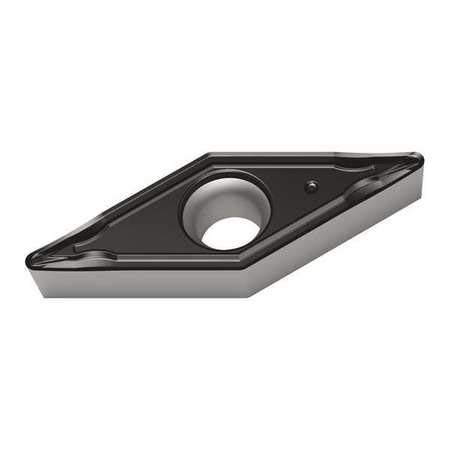

Diamond Turning Insert,VCMT,Carbide

Diamond Turning Insert,VCMT,Carbidezoom

Attributes

Key Value
ANSI CodeVCMT332-FM4 WSM10S
ANSI NumberVCMT331
Cast Iron (K) Compatibi.No
Chip-BreakerYes
Chip-Breaker CodeFM4
Clearance Angle7 Degrees
CoatingPVD
Corner Radius2
Country of Origin (subj.Germany
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length16.00mm
Depth of Cut0.10 to 1.50mm
Finish - MachiningTiAlN+Al2O3+Al
For Use WithToolholders, Boring Bars
GradeWSM10S
Hardened (H) Compatibil.No
Included Angle35 Degrees
Inscribed Circle3
Insert ApplicationFinishing
Insert CodeVCMT332
Insert Holding Type40 Degrees to 60 Degre.
Insert MaterialCarbide
Insert ShapeDiamond
Insert Size332
Insert StyleVCMT
Insert Thickness0.1880"
ISO NumberVCMT160408-FM4 WSM10S
ItemDiamond Turning Insert
Manufacturer GradeWSM10S
MaterialCarbide
Material - MachiningCarbide
Measurement SystemFractional Inch
Mounting Hole Dia.0.173"
Mounting StyleScrew
No. of Edges2
Non Ferrous (N) Compati.No
Nose Radius0.0310"
Number of Cutting Edges2
Primary Material Applic.Nickel, Stainless Steel.
Primary Material Applic.M, S
RakePositive
Relief Angle7 Degrees
ShapeRhombic
Stainless (M) Compatibi.Yes
Steel (P) CompatibilityYes
Super Alloy (S) Compati.Yes
Thickness3
Workpiece CompatibilityStainless (M), Steel (P.
