Baldor Electric CEM3116T

B08VDTB3G1

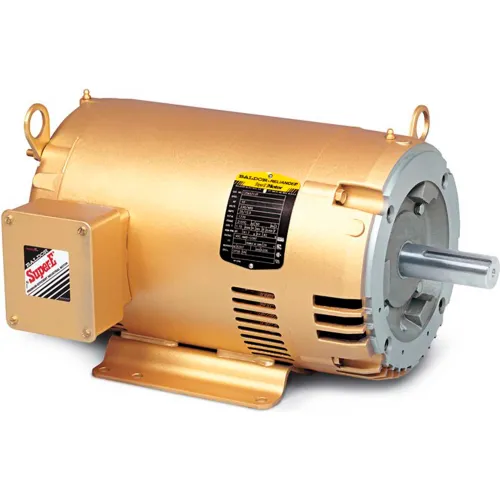

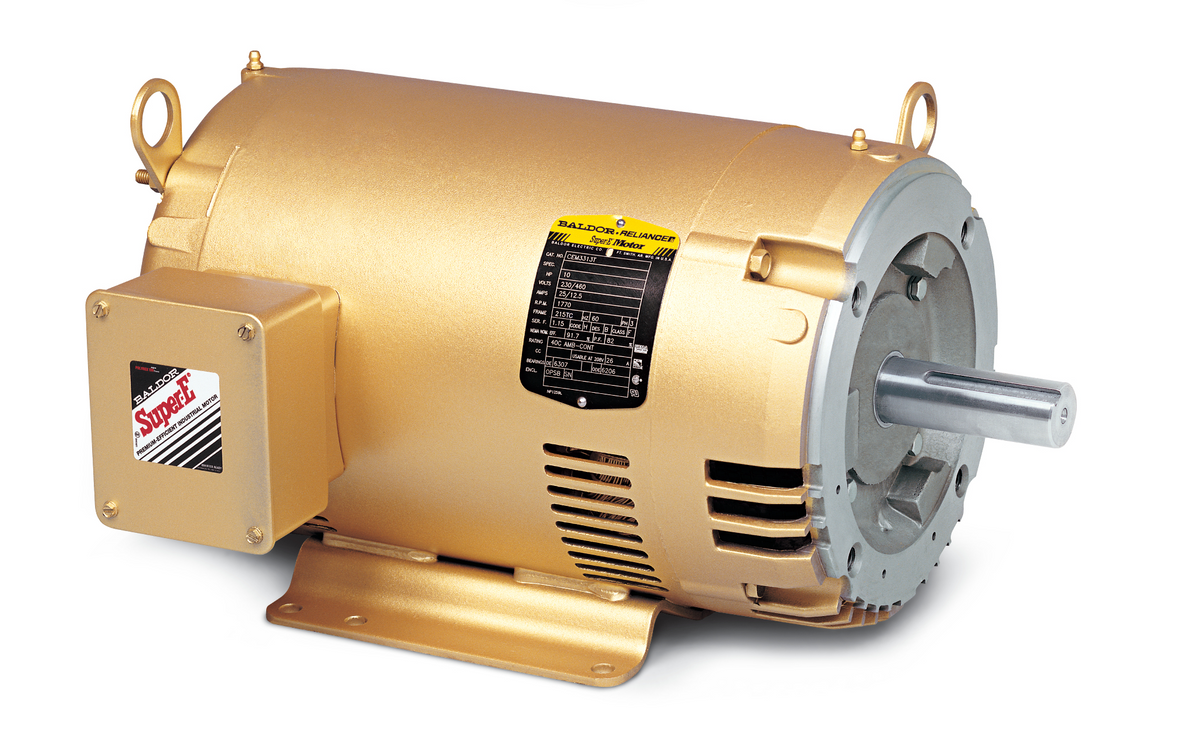

Baldor Electric 1 HP General Purpose Motor, 3-Phase, 1760 Nameplate RPM, Voltage 208-230/460, Frame 143TC - CEM3116T

Baldor Electric 1 HP General Purpose Motor, 3-Phase, 1760 Nameplate RPM, Voltage 208-230/460, Frame 143TC - CEM3116Tzoom

Attributes

Key Value
Amps3.1/3/1.5
ApplicationGeneral Purpose
BearingsBall
Capacitor RequiredNo
CC NumberCC010A
Comments60 Hz
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.United States
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency85.5%
Efficiency %85.5 %
EnclosureOPSB, Open
Enclosure MaterialSteel
Enclosure TypeOPSB, OPSB (Open Slotte.
Estimated Weight35.00
Family NameThree Phase Open Family
Family SeriesBaldor Motors
FL Amps3.1-3/1.5
FL Efficiency85.5
Footnotes1, 30
Frame143TC
Frame MaterialSteel
Frequency60 Hz
Full Load Amps3.0/1.50
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
IncludesConduit Box
Ins. ClassF
Insulation ClassF
Inverter DutyYes
Inverter RatedNo
ItemGeneral Purpose Motor
Item NumberCEM3116T
Length Less Shaft9 1/2 in
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #35BB102G004G1
Manufacturers Warranty .3 yr
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, C-Face/Rigid
Mounting TypeFoot Mount
Nameplate RPM1,760
NEMA DesignB
NEMA Frame143TC
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency85.5 %
Nominal Voltage208 VAC
Number of Speeds1
Overall Length11 5/8 in, 11.62"
Part NumberCEM3116T
Phase3, Three, 3 Phase
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1760 RPM, 1760, 1770, 1.
RPM Group1701-1800
RPM Range1,701-1,800
SeriesGO3 Series
Service Factor1.15
Shaft Dia.7/8 in
Shaft Diameter0.875"
Shaft Length2 3/16 in
Ship Weight35 lbs.
Speed (RPM)1760
StandardsCSA, CSA EEV, UR
UPC Code781568541951
Usable @ 200VNo
Usable @ 208VYes
Voltage208V, 230V, 460V, 208-2.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Weight35 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB00AED4VL2469.91In StockBaldor469.9 @ 1
AmazonTPB00AED4VL2523.061In Stock2Baldor523.06 @ 1
thumbzoomelectricmotorwholesale.comCEM3116T527.31In StockBaldor527.3 @ 1
thumbzoomMRO Supply699246665.121In StockBaldor665.12 @ 1
thumbzoomemotorpro.comCEM3116T701.291In StockBaldor35.0701.29 @ 1
thumbzoomGalcoCEM3116T-BLDR775.971In StockBaldor775.97 @ 1
thumbzoomWalker IndustrialCEM3116T775.971In StockBaldor775.97 @ 1
thumbzoomGlobal IndustrialWBB909473779.01In Stock15Baldor-Reliance779.0 @ 1
thumbzoomZoroG8157073781.161In Stock26Baldor-Reliance35.0781.16 @ 1
motorsandcontrol.comCEM3116T808.31In StockBaldor Reliance35.0808.3 @ 1
thumbzoomPurvisCEM3116T818.661In StockBaldor-Reliance818.66 @ 1
thumbzoompumpproducts.comCEM3116T918.51In StockBaldor918.5 @ 1
cbtcompany.comCEM3116T919.521In StockBaldor Reliance919.52 @ 1
us.rs-online.com71943896969.971In StockBaldor-Reliance969.97 @ 1
kirbyrisk.com24149591017.451In StockBaldor1017.45 @ 1
motionindustries.com044953721119.611In StockBaldor-Reliance1119.61 @ 1
thumbzoomsustainablesupply.comC14890161178.811In StockBaldor Electric35.01178.81 @ 1
thumbzoomRaptor SuppliesAJ6PMF1267.4101051In StockBALDOR MOTOR1267.410105 @ 1
