Baldor-Reliance EM3665T

B07ZQLQ1TS

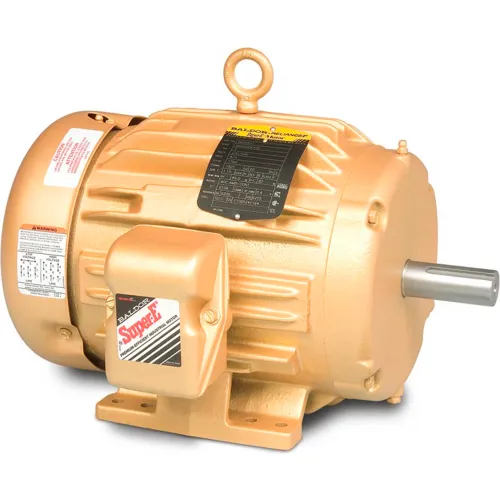

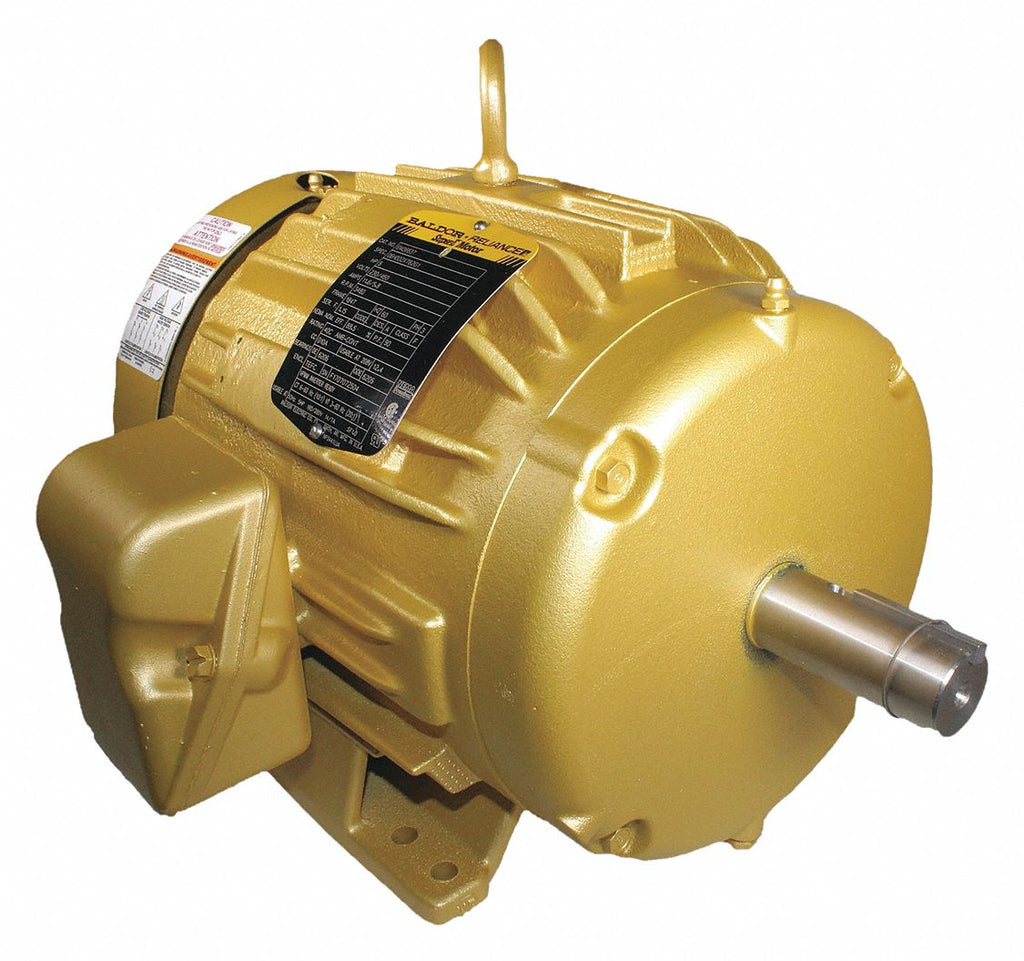

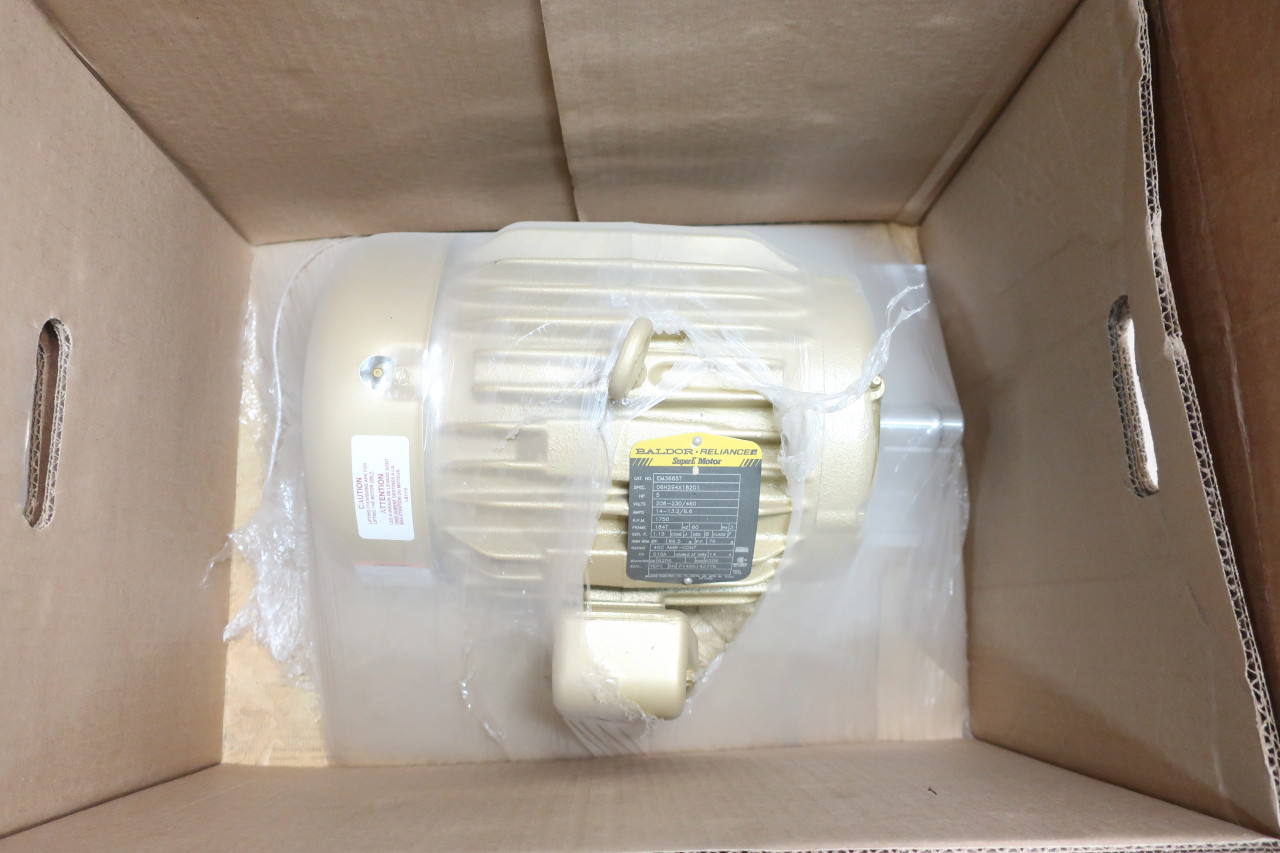

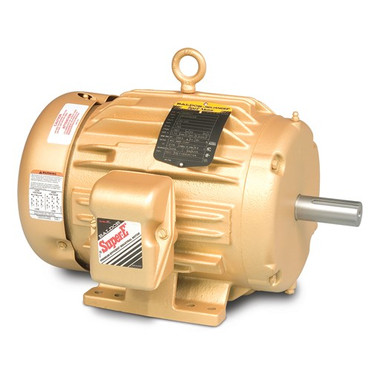

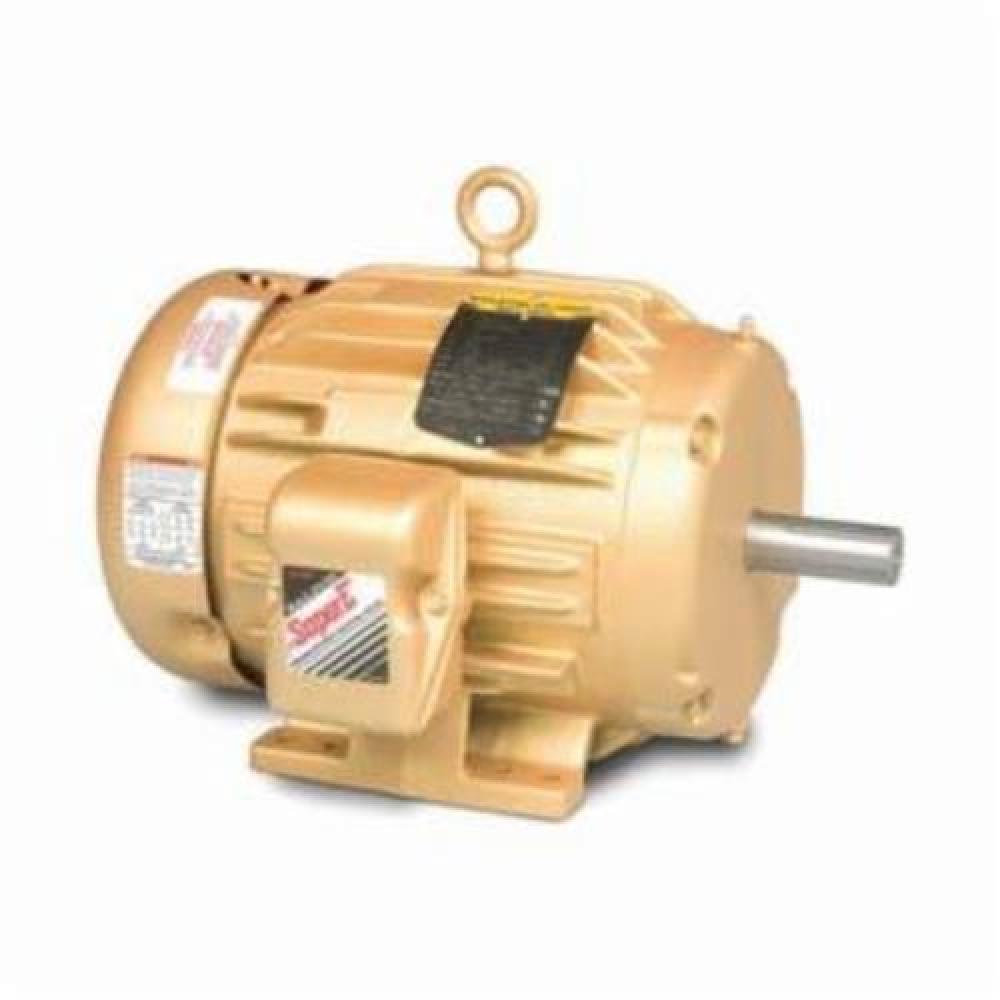

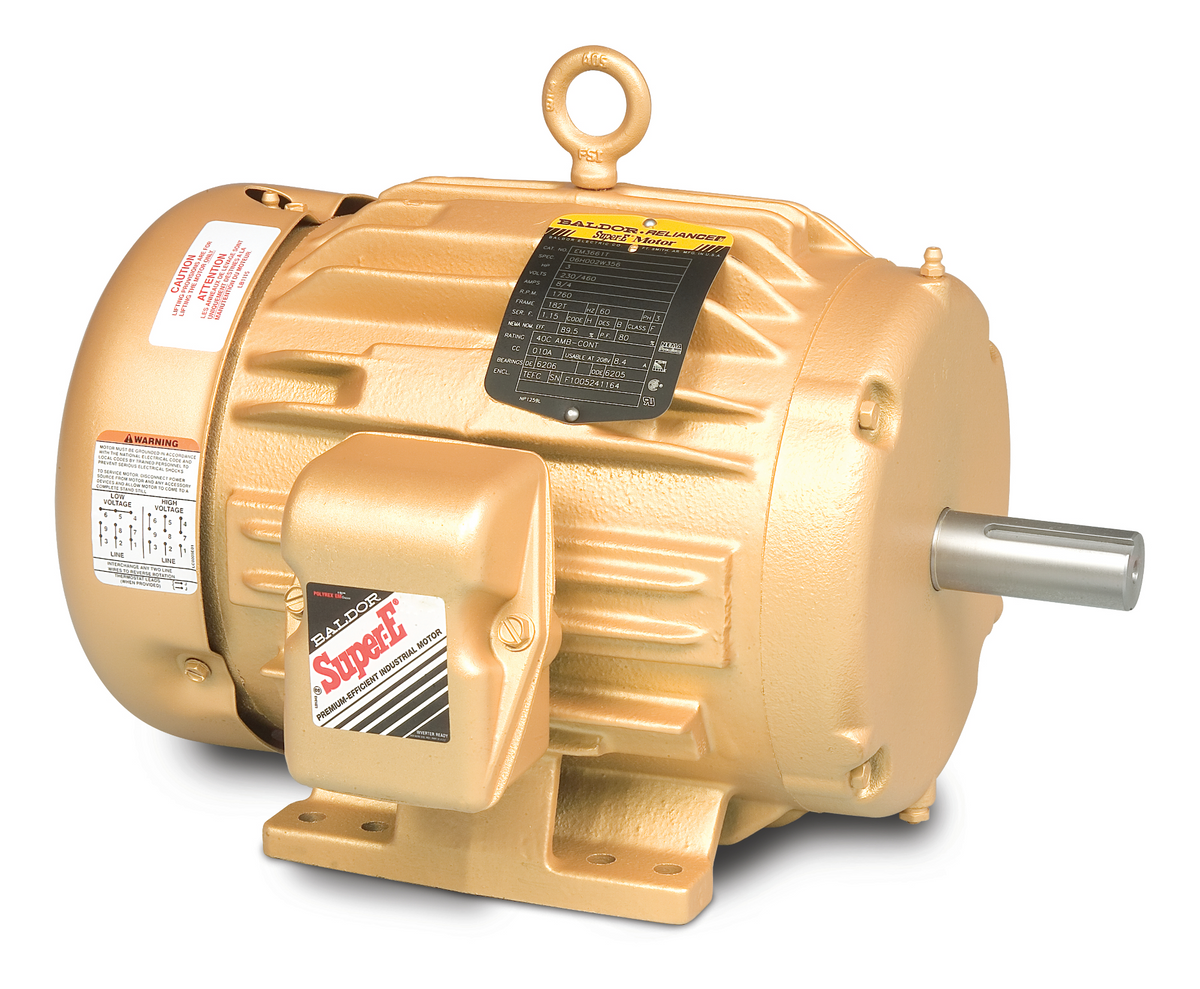

EM3665T MULTIPHASE AC Motor ; 5HP 184T FRM 1800RPM 230/460VAC

EM3665T MULTIPHASE AC Motor ; 5HP 184T FRM 1800RPM 230/460VACzoom

Attributes

Key Value
Amps6.6/14/13.2
ApplicationGeneral Purpose
Baldor Type0643M
BaseRG
Bearing TypeBall
BearingsBall
Catalog NumberEM3665T
CompositionCast Iron
ConstructionRolled Steel
DE Bearing6206
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency89.5%
Efficiency %89.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialIron
Enclosure TypeTEFC
Estimated Weight107.00
Family NameThree Phase Enclosed Fa.
Family SeriesBaldor Motors, M Series
FL Amps14-13.2/6.6
FL Efficiency89.5
Frame184T
Frame Size184T
Full Load Amps13/6.5
Full Load Efficiency90.2
Gross Weight107 lbs
Hertz60
Horsepower5 hp
HP5
Hz60
Insulation ClassF
Inverter DutyYes, No
ItemGeneral Purpose Motor
Item NumberEM3665T
Length Less Shaft12 1/2 in
Locked Rotor CodeK
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #06C101X182G9
Manufacturer Part NumberEM3665T
Manufacturers Warranty .3 yr
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionAll Angle
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingF1, Rigid, Foot Mount
Mounting TypeFooted, Foot Mount, Rig.
Nameplate RPM1,750
NEMA Design CodeB
NEMA Frame184T
Net Weight107 lbs
No. of Speeds1
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
ODE Bearing6205
Overall Length15.24 ", 15 1/4 in, 15..
Overload ProtectionNone
Part NumberEM3665T
Phase3
Power Factor80
Product SeriesM
Product TypeGeneral Purpose, Three .
Rating40C AMB-CONT
RotationReversible
RPM1,800 RPM, 1750
RPM Range1,701-1,800
SeriesGE3 Series
Service Factor1.15
Shaft Dia.1 1/8 in
Shaft Diameter1.125"
Shaft Length2 3/4 in
Ship Weight107 lbs.
Specification Number06H294W567E7
Speed (RPM)1750
StandardsCSA, CSA EEV, UR
UPC Code781568102596
Usable at 208 Volts13.7
Voltage208V, 230V, 460V, 208-2.
Voltage (AC)208-230 VAC, 460 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
motionindustries.com0054255550.271In StockBaldor-Reliance50.27 @ 1
thumbzoomelectricmotorwholesale.comEM3665T811.711In StockBaldor811.71 @ 1
thumbzoomNRI IndustrialD743621822.891In StockBALDOR822.89 @ 1
Onlinecomponents.comEM3665T886.8511BALDOR MOTORS886.85 @ 1
thumbzoomcappusa.com21351611015.731In StockBaldor1015.73 @ 1
thumbzoomgalesburgelectric.comEM3665T1071.111In StockBaldor1071.11 @ 1
thumbzoomemotorpro.comEM3665T1080.081In StockBaldor107.01080.08 @ 1
factorysupplyoutlet.comOU94RJ1183.161In StockBaldor-Reliance1183.16 @ 1
thumbzoomGalcoEM3665T-BLDR1187.191In StockBaldor107.01187.19 @ 1
thumbzoomWalker IndustrialEM3665T1195.111In StockBaldor1195.11 @ 1
motorsandcontrol.comEM3665T1244.91In StockBaldor Reliance107.01244.9 @ 1
thumbzoomPurvisEM3665T1260.231In StockBaldor-Reliance1260.23 @ 1
thumbzoomGlobal IndustrialWBB3900371283.01In StockBaldor-Reliance1283.0 @ 1
thumbzoomstandardelectricsupply.com22983221295.281In StockBaldor Electric1295.28 @ 1
thumbzoomZoroG89847441305.991In StockBaldor-Reliance114.01305.99 @ 1
thumbzoompumpproducts.comEM3665T1413.51In StockBaldor1413.5 @ 1
us.rs-online.com719442221523.7511Baldor-Reliance1523.75 @ 1
kirbyrisk.com17748581567.021In StockBaldor1567.02 @ 1
thumbzoomsustainablesupply.comC14908761587.131In StockBaldor Electric114.01587.13 @ 1
AmazonTPB07ZQLQ1TS1741.851In Stock3BALDOR-RELIANCE1741.85 @ 1
thumbzoomRaptor SuppliesAJ6UDE2051.26465051In StockBALDOR MOTOR2051.2646505 @ 1
