- mpnC20440
- brandname: Cle-Line
- manufacturername: Cle-Line

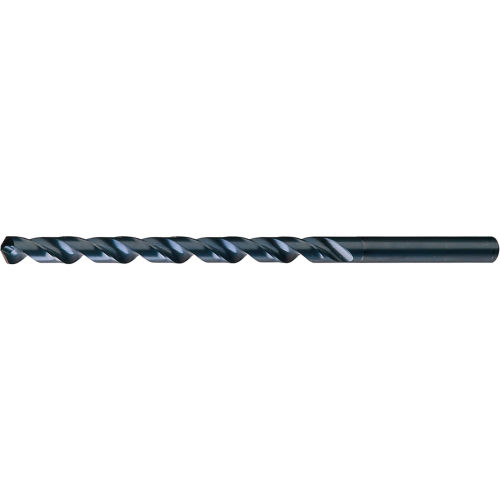

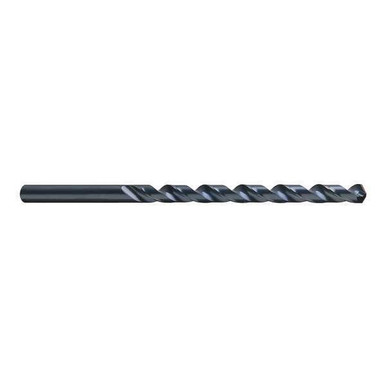

Cle-Line C20440 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 3/16" Drill Diameter
- Brand: Cle-line
- PartNumber: C20440
- Model: C20440
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Low Carbon, Stainless S. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 3 |
| Cutting Depth | 9 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1875 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1875" |
| Diameter (Fraction) | 3/16" |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 3/16 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.0563 in |
| Drill Size - Decimal In. | 0.1875 in |
| Drill Size - Fraction | 3/16 in |
| Drill Size System | Fractional |
| Drill Style | Extra Length Drill |
| Finish | Black Oxide/Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 9 in, 9.0000" |
| Flute Length (Metric) | 228.60mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Extra Long Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS |
| Maximum Drilling Depth | 3/4 in |
| Measurement System | Fractional Inch |
| Mpn | C20440 |
| Number of Flutes | 2 |
| Overall Length | 12 in, 12.0000" |
| Overall Length (Metric) | 304.80mm |
| Point Angle | 118 deg, 118? |
| Point Style | Notched |
| Point Type | Notched |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1806 |
| Shank Configuration | Straight |
| Shank Dia. | 3/16 in |
| Shank Length | 3.0000", 3 in |
| Shank Length (Metric) | 76.20mm |
| Shank Size | 3/16 in, 0.1875" |
| Shank Size (Metric) | 4.76mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G4958795, C20440 |
| Standards | ASME B94.11M |
| Style | 1806 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 3/16" |
| Type | General Purpose Heavy D. |
| UPC | 697334204404, 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C20440 | 11.96 | 1 | In Stock | | Cle-Line | | 11.96 @ 1 |
 | heavydutydepot.com | C20440 | 11.96 | 9 | In Stock | | Cle-Line | | 11.96 @ 9 |
 | Global Industrial | WBB2543641 | 13.0 | 1 | In Stock | | Cle-Line | | 13.0 @ 1 |
 | usmegastore.com | C20440 | 14.94 | 1 | In Stock | | Cle-Line | | 14.94 @ 1 |
 | Zoro | G4958795 | 15.35 | 1 | In Stock | 26 | Cle-Line | 0.08 | 15.35 @ 1 |
 | MRO Supply | 6123813 | 16.1 | 4 | In Stock | | Cle-Line | | 16.1 @ 4 |
 | simsupply.com | ZO-G4958795 | 23.01 | 1 | 3 | | Cle-Line | | 23.01 @ 1 |
 | imsbolt.com | C20440 | 26.53 | 1 | In Stock | | CLE-LINE | | 26.53 @ 1 |
