Cle-line C20442

mpnC20442
brandname: Cle-Line
manufacturername: Cle-Line

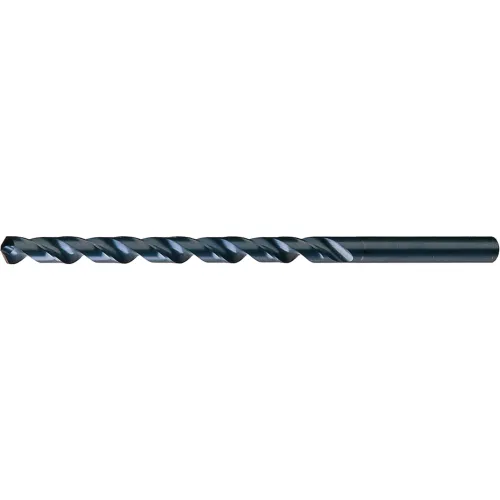

Cle-Line C20442 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 7/32" Drill Diameter

Cle-Line C20442 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 7/32" Drill Diameter

zoom

Brand: Cle-line
PartNumber: C20442
Model: C20442
Color: Black Oxide
PackageQuantity: 1
Binding: Misc.
Manufacturer: Cle-Line
Label: Cle-Line

Attributes

Key	Value
Applicable Materials	Low Carbon, Stainless S.
Coolant Fed	Non-Coolant Through
Coolant Through	No
Cutting Depth	9 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.2188
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.2188"
Diameter (Fraction)	7/32"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Size	7/32 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Extra Long
Drill Point Length	0.0657 in
Drill Size - Decimal In.	0.2188 in
Drill Size - Fraction	7/32 in
Drill Size System	Fractional
Drill Style	Extra Length Drill
Finish	Black Oxide/Steam Oxide
Flute Length	9 in, 9.0000"
Flute Length (Metric)	228.60mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Maximum Drilling Depth	7/8 in
Number of Flutes	2
Overall Length	12 in, 12.0000"
Overall Length (Metric)	304.80mm
Point Angle	118 deg, 118?
Point Style	Notched
Point Type	Notched
Series	1806
Shank Configuration	Straight
Shank Dia.	13/64 in
Shank Length	3.0000", 3 in
Shank Length (Metric)	76.20mm
Shank Size	7/32 in, 0.2188"
Shank Size (Metric)	5.56mm
Shank Type	Straight
Size	7/32"
SKU	C20442
Style	1806
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	7/32"
Type	General Purpose Heavy D.
UPC	6.97E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G7369890	15.39	1	45		Cle-Line	0.1	15.39 @ 1
	Global Industrial	WBB2543642	15.75	1	In Stock		Cle-Line		15.75 @ 1
	Megadepot	C20442	15.81	1	In Stock		Cle-Line		15.81 @ 1
	usmegastore.com	C20442	15.93	1	In Stock		Cle-Line		15.93 @ 1
	heavydutydepot.com	C20442	15.93	7	In Stock		Cle-Line		15.93 @ 7
	MRO Supply	6123814	17.42	3	In Stock		Cle-Line		17.42 @ 3
	imsbolt.com	C20442	28.7	1	In Stock		CLE-LINE		28.7 @ 1
