- mpnC20450
- brandname: Cle-Line
- manufacturername: Cle-Line

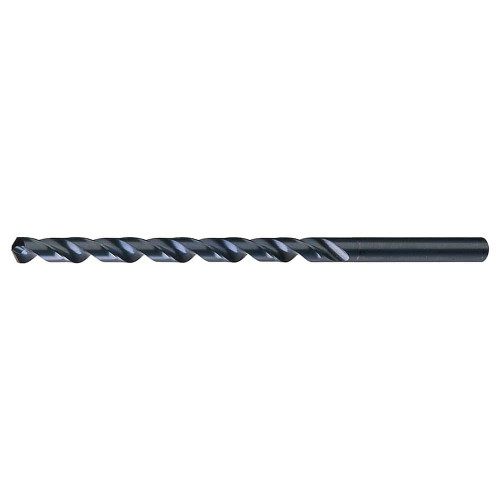

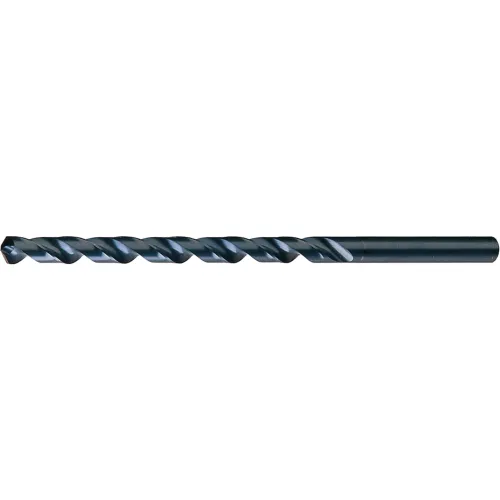

Cle-Line C20450 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 11/32" Drill Diameter
- Brand: Cle-line
- PartNumber: C20450
- Model: C20450
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Low Carbon, Stainless S. |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Depth | 9 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3438 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3438" |
| Diameter (Fraction) | 11/32" |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | 11/32 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.1033 in |
| Drill Size - Decimal In. | 0.3438 in |
| Drill Size - Fraction | 11/32 in |
| Drill Size System | Fractional |
| Drill Style | Extra Length Drill |
| Finish | Black Oxide/Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 9 in, 9.0000" |
| Flute Length (Metric) | 228.60mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Extra Long Drill Bit |
| Item? | 50AT41 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 63/64 in |
| Measurement System | Fractional Inch |
| Mfr. Model? | C20450 |
| Number of Flutes | 2 |
| Overall Length | 12 in, 12.0000" |
| Overall Length (Metric) | 304.80mm |
| Point Angle | 118 deg, 118? |
| Point Style | Notched |
| Point Type | Notched |
| Primary Material Applic. | Cast Iron, Steel, Cast . |
| Primary Material Applic. | K, P, K; P |
| Series | 1806 |
| Shank Configuration | Straight |
| Shank Dia. | 11/32 in |
| Shank Length | 3.0000", 3 in |
| Shank Length (Metric) | 76.20mm |
| Shank Size | 0.3438", 11/32 in |
| Shank Size (Metric) | 8.73mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | C20450 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1806 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 11/32" |
| Type | General Purpose Heavy D. |
| UNSPSC | 27112801 |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4958856 | 17.02 | 1 | In Stock | 26 | Cle-Line | 0.23 | 17.02 @ 1 |
 | Global Industrial | WBB2543716 | 17.75 | 1 | In Stock | | Cle-Line | | 17.75 @ 1 |
 | usmegastore.com | C20450 | 18.28 | 1 | In Stock | | Cle-Line | | 18.28 @ 1 |
 | Megadepot | C20450 | 18.28 | 1 | In Stock | | Cle-Line | | 18.28 @ 1 |
 | heavydutydepot.com | C20450 | 18.28 | 6 | In Stock | | Cle-Line | | 18.28 @ 6 |
 | MRO Supply | 6123818 | 19.92 | 3 | In Stock | | Cle-Line | | 19.92 @ 3 |
| Grainger | 50AT41 | 28.48 | 1 | In Stock | | CLE-LINE | | 28.48 @ 1 |
 | imsbolt.com | C20450 | 32.82 | 1 | In Stock | | CLE-LINE | | 32.82 @ 1 |
