Cle-line C20454

mpnC20454
brandname: Cle-Line
manufacturername: Cle-Line

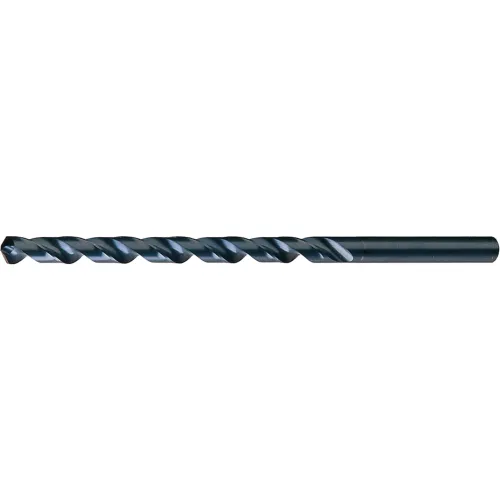

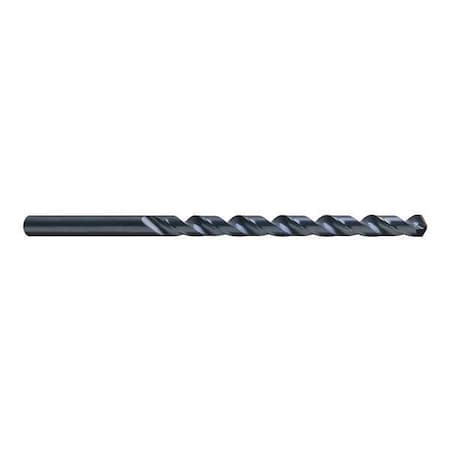

Cle-Line C20454 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 13/32" Drill Diameter

Cle-Line C20454 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 13/32" Drill Diameter

zoom

Brand: Cle-line
PartNumber: C20454
Model: C20454
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Low Carbon, Stainless S.
Coolant Fed	Non-Coolant Through
Cutting Depth	9 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.4062
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.4062"
Diameter (Fraction)	13/32"
Drill Bit Point Angle	118 Degrees
Drill Bit Size	13/32 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Extra Long
Drill Point Length	0.122 in
Drill Size - Decimal In.	0.4062 in
Drill Size - Fraction	13/32 in
Drill Size System	Fractional
Drill Style	Extra Length Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	9 in, 9.0000"
Flute Length (Metric)	228.60mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Maximum Drilling Depth	1 5/8 in
Measurement System	Fractional Inch
Number of Flutes	2
Overall Length	12 in, 12.0000"
Overall Length (Metric)	304.80mm
Point Angle	118 deg, 118?
Point Style	Notched
Point Type	Notched
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Series	1806
Shank Configuration	Straight
Shank Dia.	13/32 in
Shank Length	3.0000", 3 in
Shank Length (Metric)	76.20mm
Shank Size	0.4063", 13/32 in
Shank Size (Metric)	10.32mm
Shank Type	Straight
Shank Type - Machining	Straight
Standards	ASME B94.11M
Style	1806
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	13/32"
Type	General Purpose Heavy D.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G4958847	20.99	1	In Stock		Cle-Line	0.32	20.99 @ 1
	Global Industrial	WBB2543718	22.0	1	In Stock		Cle-Line		22.0 @ 1
	usmegastore.com	C20454	22.46	1	In Stock		Cle-Line		22.46 @ 1
	Megadepot	C20454	22.62	1	In Stock		Cle-Line		22.62 @ 1
	heavydutydepot.com	C20454	22.62	5	In Stock		Cle-Line		22.62 @ 5
	MRO Supply	6123820	25.0	2	In Stock		Cle-Line		25.0 @ 2
