- mpnC23153
- brandname: Cle-Line
- manufacturername: Cle-Line

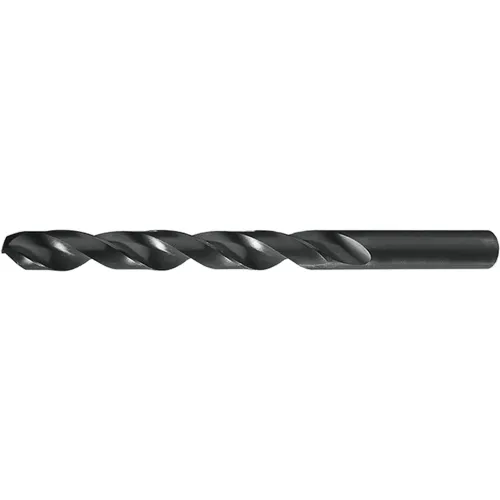

CLE-LINE Jobber Drill,1/2",HSS C23153
- Brand: Cle-line
- PartNumber: C23153
- Model: C23153
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.5000 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.5000", 0.5 |
| Diameter (Fraction) | 1/2" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 1/2 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1036 in |
| Drill Size - Decimal In. | 0.5 in |
| Drill Size - Fraction | 1/2 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 4-1/2 in, 4.5000", 4 1/. |
| Flute Length (Metric) | 114.30mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 3 3/8 in |
| Number of Flutes | 2 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 135 deg, 135?, 135 |
| Point Style | Split |
| Point Type | Split |
| Series | 1801 |
| Shank Configuration | Straight |
| Shank Dia. | 1/2 in |
| Shank Length | 1 1/2 in, 1.5000" |
| Shank Length (Metric) | 38.10mm |
| Shank Size | 0.5000", 0.5, 1/2 in Di. |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Straight |
| Style | 1801 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 1/2" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | usmegastore.com | C23153 | 7.63 | 1 | In Stock | | Cle-Line | | 7.63 @ 1 |
 | Megadepot | C23153 | 7.68 | 1 | In Stock | | Cle-Line | | 7.68 @ 1 |
 | heavydutydepot.com | C23153 | 7.68 | 14 | In Stock | | Cle-Line | | 7.68 @ 14 |
 | Global Industrial | WBB2543086 | 7.7 | 6 | In Stock | | Cle-Line | | 7.7 @ 6 |
 | MRO Supply | 6124676 | 8.72 | 5 | In Stock | | Cle-Line | | 8.72 @ 5 |
 | Zoro | G3454875 | 9.15 | 1 | 1451 | | Cle-Line | 0.25 | 9.15 @ 1 |
 | Raptor Supplies | AB9CNP | 12.1232475 | 1 | In Stock | | CLE-LINE | | 12.1232475 @ 1 |
 | sustainablesupply.com | C1465220 | 12.59 | 1 | In Stock | | Cle-Line | 0.25 | 12.59 @ 1 |
| AmazonTP | B000LEXHMS | 19.59 | 1 | In Stock | 2 | Cle-Line | | 19.59 @ 1 |
 | National Supply Network | 57607186 | 22.3 | 6 | In Stock | | Cle-Line | | 22.3 @ 6 |
