- mpnC23174
- brandname: Cle-Line
- manufacturername: Cle-Line

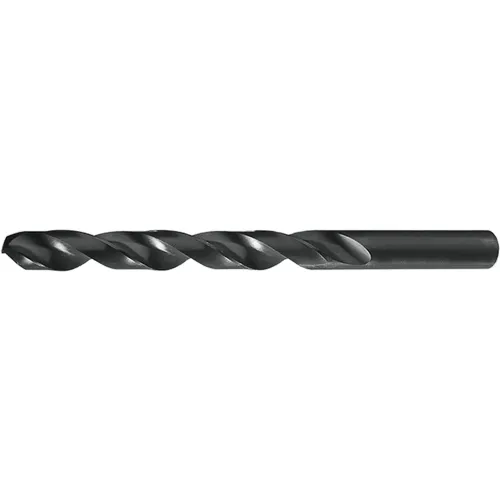

Jobber Bit, 40, High Speed Steel
- Brand: Cle-line
- PartNumber: C23174
- PackageQuantity: 1
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0980 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0980" |
| Diameter (Wire/Let) | 40 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black and Gold Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | #40 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0203 in |
| Drill Size - Decimal In. | 0.098 in |
| Drill Size - Wire | #40 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Black Oxide, Black and . |
| Flute Length | 1 3/8 in, 1.3750", 1-3/. |
| Flute Length (Metric) | 34.92mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 1/32 in |
| Number of Flutes | 2 |
| Overall Length | 2-3/8 in, 2 3/8 in, 2.3. |
| Overall Length (Metric) | 60.32mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1801 |
| Shank Configuration | Straight |
| Shank Dia. | 3/32 in |
| Shank Length | 1 in, 1.0000" |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 0.0980", 0.098 in Dia x. |
| Shank Size (Metric) | 2.49mm |
| Shank Type | Straight |
| Style | 1801 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | #40 |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543162 | 1.01 | 12 | 12 | | Cle-Line | | 1.01 @ 12 |
 | Megadepot | C23174 | 1.05 | 1 | 12 | | Cle-Line | | 1.05 @ 12 |
 | usmegastore.com | C23174 | 1.11 | 1 | 12 | | Cle-Line | | 1.11 @ 12 |
 | heavydutydepot.com | C23174 | 1.11 | 91 | 12 | | Cle-Line | | 1.11 @ 91 |
 | MRO Supply | 6124697 | 1.17 | 43 | 12 | | Cle-Line | | 1.17 @ 43 |
 | Zoro | G1669604 | 1.25 | 1 | 557 | | Cle-Line | 0.1 | 1.25 @ 12 |
 | sustainablesupply.com | C1465225 | 1.54 | 1 | 12 | | Cle-Line | 0.1 | 1.54 @ 12 |
 | Raptor Supplies | AD6WBL | 1.6201575 | 1 | 12 | | CLE-LINE | | 1.6201575 @ 12 |
