Cleveland Twist Drill C14653

mpnC14653
brandname: CLEVELAND
manufacturername: CLEVELAND

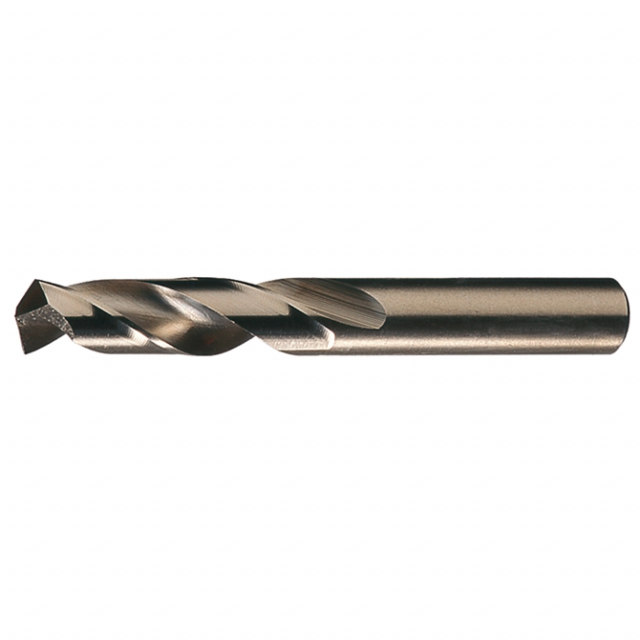

Cleveland Twist 17/64" Dia. 2-5/8" OAL Cobalt Screw Machine Drill

Cleveland Twist 17/64" Dia. 2-5/8" OAL Cobalt Screw Machine Drill

zoom

Brand: Cleveland Twist Drill
PartNumber: C14653
Model: C14653
Manufacturer: Cleveland Twist Drill
Label: Cleveland Twist Drill

Attributes

Key	Value
Applicable Materials	Carbon Steel, Cast Iron.
Bit Dia.	17/64"
Construction:	Heavy-Duty
Cutting Depth	1-7/16 in
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.2656
Decimal Equivalent:	0.2656"/6.75mm
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter Fractional:	17/64"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Straw/Bronze
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Size	17/64 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.055 in
Drill Size - Decimal In.	0.2656 in
Drill Size - Fraction	17/64 in
Drilling Length	1.438"
Finish	Straw/Gold Oxide
Flute Length	1 7/16 in, 1-7/16 in
Flute Type	Right Spiral, Spiral
Hand of Spiral Cut:	RHS / RHC
Item	Screw Machine Drill Bit
Length of Flute:	1.4375"/36.51mm
List Style:	2133
Material	M42 HSS-Co 8, HSS-CO 8%.
Material:	Cobalt
Maximum Drilling Depth	1 7/16 in
Number of Flutes	2
Overall Length	2 5/8 in, 2-5/8 in
Overall Length:	2.6250"/66.67mm
Point Angle	135 deg
Point Type	Split
Point:	135? Split
Series	2133
Shank Dia.	17/64 in
Shank Length	1 3/16 in
Shank Size	17/64 in Dia x 1-3/16 i.
Shank Size:	0.2656"/6.75mm
Shank Type	Straight
Shank:	Straight
Sizes Included	17/64"
Style	2133
Surface Condition	Straw
Surface Condition:	Straw/Gold Oxide
Tool Size	17/64"
Type	General Purpose Heavy D.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6111013	4.46	8	10		Cleveland		4.46 @ 10
	Megadepot	C14653	4.64	1	10		Cleveland		4.64 @ 10
	usmegastore.com	C14653	5.62	1	10		Cleveland		5.62 @ 10
	sustainablesupply.com	C2974889	5.68	1	10		Cleveland	0.03	5.68 @ 10
	Zoro	G3002190	6.6	1	25		Cleveland	0.35	6.6 @ 10
	bscsource.com	C14653	7.79	1	10		Cleveland		7.79 @ 10
	National Supply Network	63794176	8.769	1	10		Cleveland		8.769 @ 10
	Guardian	63794176	10.1	1	10		Cleveland		10.1 @ 10
