- mpn47A05LR25WP
- brandname: Dodge
- manufacturername: Dodge

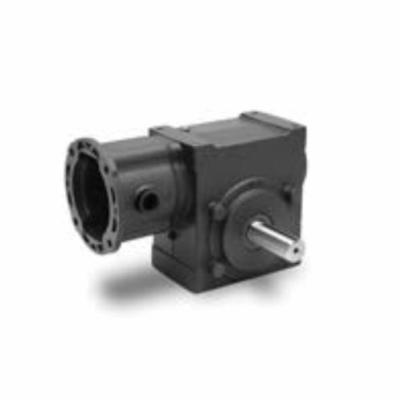

DODGE 47A05LR25WP TIGEAR-2 REDUCER W/ WHITE PAINT
- Brand: Dodge
- PartNumber: 47A05LR25WP
- PackageQuantity: 1
Attributes
| Key | Value |
|---|
| Base to output center h. | 5.3100 in, 134.874 mm |
| Case size | 47 |
| Center distance (in) | 4.7 in, Center distance. |
| Center to end of shaft . | 9.0600 in, 230.124 mm |
| Finish | White epoxy |
| Gearbox component type | Gearbox |
| Horsepower rating input | 28.4500 hp, 21.215 kW |
| Horsepower rating output | 26.8400 hp, 20.015 kW |
| Housing material | Cast iron |
| Input | 250TC Flange |
| Input flange | 250TC |
| Input HP | 28.45 |
| Input style | 3-Piece coupled |
| Lubrication type | PAG, standard temperatu. |
| Material | Class 30 grey iron |
| Max RPM | 350 rpm |
| Motor compatibility | NEMA motor, 250TC frame |
| Mounting bolt pattern l. | 11.0000 in, 279.4 mm |
| Mounting bolt pattern w. | 5.8100 in, 147.574 mm |
| Nominal ratio | 5 |
| Output | Double solid output sha. |
| Output bore/shaft diame. | 2 in |
| Output horse power | 26.84 |
| Output shaft center to . | 14.5100 in, 368.554 mm |
| Output style | Left, right |
| Overhung load | 5100 lbf, 22685.93 N |
| Paint type | White epoxy |
| Paint/coating | White |
| Rated torque output | 4832 in/lb, 4832.0 in/lb |
| Ratio | 5 to 1 |
| Seal type | Single-lip contact |
| Shaft diameter output | 2.0000 in, 50.8 mm |
| Shaft length output | 4.0100 in, 101.854 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 29.1200 hp, 21.715 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 47A05LR25WP | 5152.71 | 1 | In Stock | 10 | Dodge | | 5152.71 @ 1 |
 | MRO Supply | 143829 | 5839.53 | 1 | In Stock | | Dodge | | 5839.53 @ 1 |
 | Purvis | 47A05LR25WP | 6322.12 | 1 | In Stock | | Dodge | | 6322.12 @ 1 |
| factorysupplyoutlet.com | LI46DC | 7901.64 | 1 | In Stock | 25 | DODGE | | 7901.64 @ 1 |
