Marathon Electric X268

B0042GF9A4

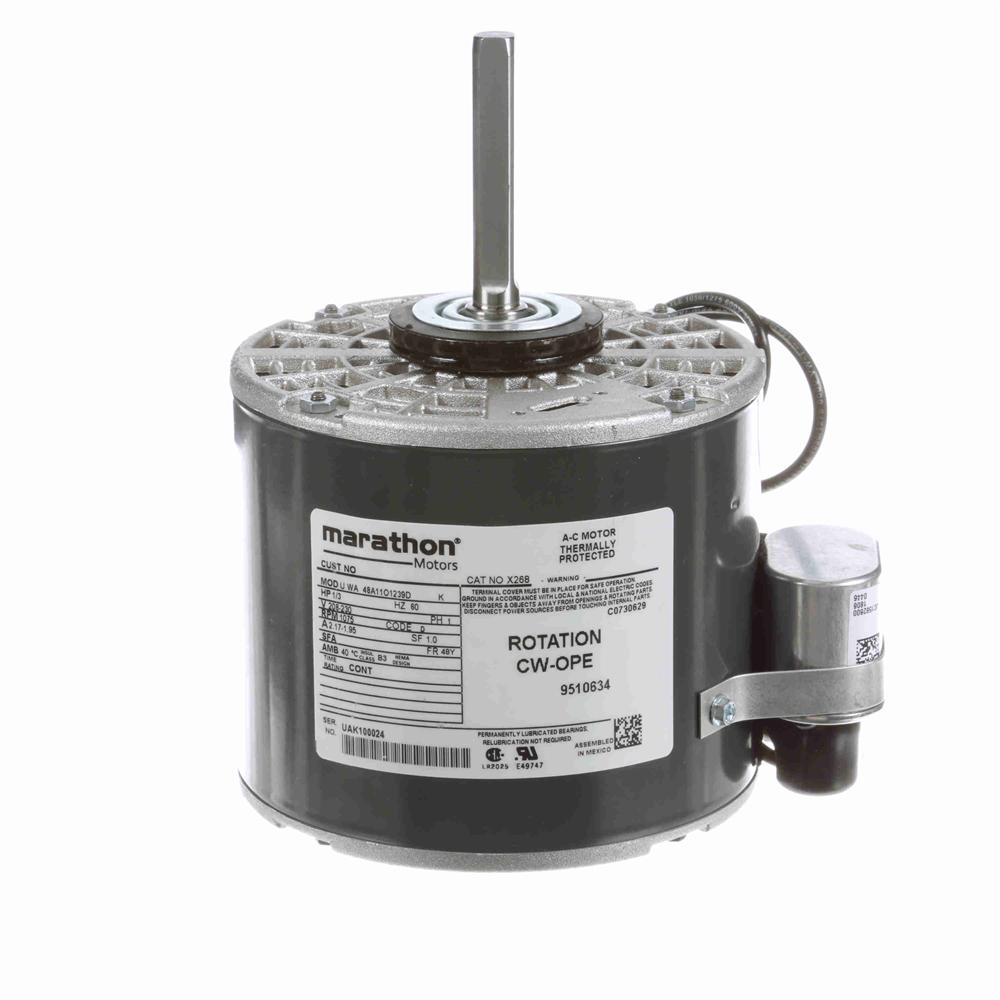

Marathon X268 HVAC Motor

Marathon X268 HVAC Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1239
Amps3
applications:Refrigeration Fan
ApprovalsCSA, UR
base rpm:1075 rpm
Bearing TypeBall
BearingsBall
CapacitorIncluded
CompositionRolled Steel
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency0.64
Efficiency %64 %
EnclosureOpen Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over)
enclosure type:OAO (Open Air-Over)
Family SeriesMarathon Electric Motors
Frame48Y
frame material:Rolled Steel
frame size:48Y
Frequency60 Hz
frequency rating:60 Hz
full load current:3.00 A
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
insulation class:B
ip rating:01
Item NumberX268
Kilowatts0.25 kW
ManufacturerMarathon Electric
Manufacturer Model #048A11O1239
Manufacturer Part Number048A11O1239
Maximum Ambient Tempera.40? C
motor category:Refrigeration Motor
Motor Diameter5-5/8"
motor horsepower:0.33 hp, 1/3 hp
motor phase:1 ph
motor supply voltage:208-230 V
MountingResilient Ring
Mounting OrientationHorizontal
Mounting TypeResilient Rings
mounting type:Resilient Ring
Net Weight14 lbs
Number of Poles6
Number of Speeds1
Overall Length8.6", 8.6 "
Phase1
Product TypePSC (Permanent Split Ca.
RotationCCW Shaft End
RPM1075, 1,075 RPM
Service Factor1
Shaft Diameter0.5 ", 1/2"
shaft diameter:0.50 in
Shaft Length2.91"
Ship Weight14 lbs.
standards met:UL, CSA
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
thermal protection:Automatic
Voltage (AC)208-230 VAC
Volts208, 230
weight:14 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotionindustries.com04739446234.771In StockMarathon Electric234.77 @ 1
thumbzoomGalcoX268-MARA283.5100In StockMarathon Electric14.0283.5 @ 100
thumbzoomemotorpro.comX268305.991In StockMarathon14.0305.99 @ 1
us.rs-online.com72649981322.761In StockMarathon Motors322.76 @ 1
