- mpn46109
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

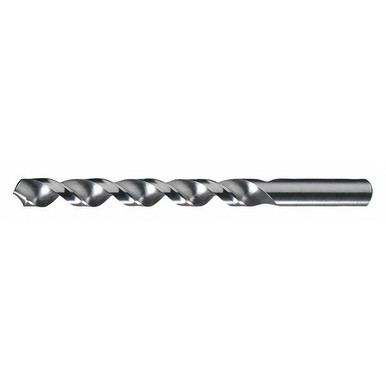

Chicago-Latrobe 46109 150B Jobber Length Drill Bit, 39 Drill - Wire, 0.0995 in Drill - Decimal Inch, 118 deg Point, HSS, Bright (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 46109
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Application | Chip Ejection, Carbon S. |
| Brand | Chicago-Latrobe |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 3 |
| Cutting Depth | 1-3/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0995 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0995", 0.0995 |
| Diameter (Wire/Let) | 39 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #39 |
| Drill Construction | High Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0299 in |
| Drill Size - Decimal In. | 0.0995 in |
| Drill Size - Wire | #39 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 1 3/8 in, 1.3750", 1-3/. |
| Flute Length (Metric) | 34.92mm |
| Flute Type | Right Spiral, Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 40 Degrees |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Left/Right Hand | Right |
| List Number | 150B |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 25/64 in |
| Measurement System | Wire |
| Mpn | 46109 |
| Number of Flutes | 2 |
| Overall Length | 2-3/8 in, 2 3/8 in, 2.3. |
| Overall Length (Metric) | 60.32mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Composite, Co. |
| Primary Material Applic. | N, O, P |
| Series | 150B |
| Shank Configuration | Straight |
| Shank Dia. | 3/32 in |
| Shank Length | 1 in, 1.0000" |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 0.0995 in Dia x 1 in L,. |
| Shank Size (Metric) | 2.53mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G2824217 |
| Spiral Direction | Right Hand |
| Standards | ANSI |
| Style | 150B |
| SubCategory | Machining |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | #39 |
| UPC | 662355461099 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129048 | 1.67 | 22 | 12 | | Chicago-Latrobe | | 1.67 @ 22 |
 | Global Industrial | WBB2546973 | 1.7186 | 12 | 12 | | Chicago-Latrobe | | 1.7186 @ 12 |
 | Zoro | G2824217 | 2.16 | 1 | 12 | | Chicago-Latrobe | | 2.16 @ 12 |
 | Megadepot | 46109 | 2.29 | 1 | 12 | | Chicago-Latrobe | | 2.29 @ 12 |
 | heavydutydepot.com | 46109 | 2.29 | 44 | 12 | | Chicago-Latrobe | | 2.29 @ 44 |
 | usmegastore.com | 46109 | 2.42 | 1 | 12 | | Chicago-Latrobe | | 2.42 @ 12 |
 | Guardian | 81142390 | 3.55 | 1 | 12 | | Chicago-Latrobe | | 3.55 @ 12 |
 | National Supply Network | 81142390 | 3.7425 | 12 | 12 | | Chicago-Latrobe | | 3.7425 @ 12 |
 | simsupply.com | ZO-G2824217 | 8.49 | 1 | 12 | | Chicago-Latrobe | | 8.49 @ 12 |
