- mpn46326
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

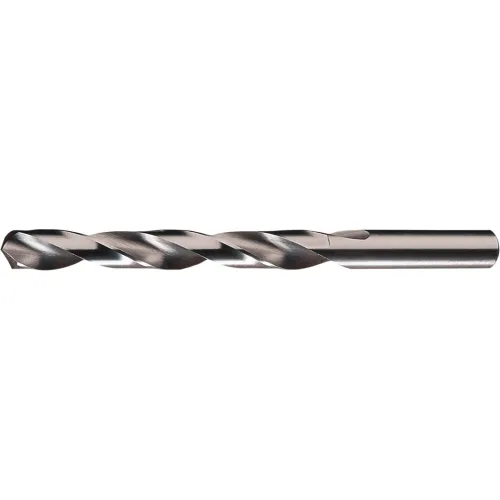

Chicago-Latrobe 46326 150C Jobber Length Drill Bit, 56 Drill - Wire, 0.0465 in Drill - Decimal Inch, 118 deg Point, HSS, Bright (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 46326
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Brass, Bronze, Dura-Pla. |
| Application | Chip Ejection, Brass, B. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 3/4 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0465 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0465", 0.0595 |
| Diameter (Wire/Let) | 56 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #56 |
| Drill Construction | Low Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.014 in |
| Drill Size - Decimal In. | 0.0465 in |
| Drill Size - Wire | #56 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 0.7500", 3/4 in |
| Flute Length (Metric) | 19.05mm |
| Flute Type | Right Spiral, Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 15 Degrees |
| Item | Jobber Length Drill Bit |
| Left/Right Hand | Right |
| List Number | 150C |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 11/64 in |
| Measurement System | Wire |
| Number of Flutes | 2 |
| Overall Length | 1.7500", 1 3/4 in, 1-3/. |
| Overall Length (Metric) | 44.45mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N, O |
| Series | 150C |
| Shank Configuration | Straight |
| Shank Dia. | 1/32 in |
| Shank Length | 1.0000", 1 in |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 0.0465", 0.0595, 0.0465. |
| Shank Size (Metric) | 1.18mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ANSI |
| Style | 150C |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | #56 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129178 | 2.08 | 17 | 12 | | Chicago-Latrobe | | 2.08 @ 17 |
 | usmegastore.com | 46326 | 2.23 | 1 | 12 | | Chicago-Latrobe | | 2.23 @ 12 |
 | heavydutydepot.com | 46326 | 2.23 | 45 | 12 | | Chicago-Latrobe | | 2.23 @ 45 |
 | Global Industrial | WBB2546637 | 2.2732 | 12 | 12 | | Chicago-Latrobe | | 2.2732 @ 12 |
 | Zoro | G2825477 | 2.97 | 1 | 15 | | Chicago-Latrobe | | 2.97 @ 12 |
 | Guardian | 81385569 | 4.97 | 1 | 12 | | Chicago-Latrobe | | 4.97 @ 12 |
