Cle-line C20462

B00J9LSJKY

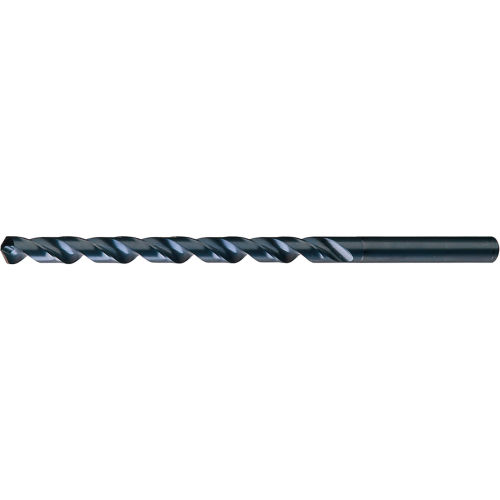

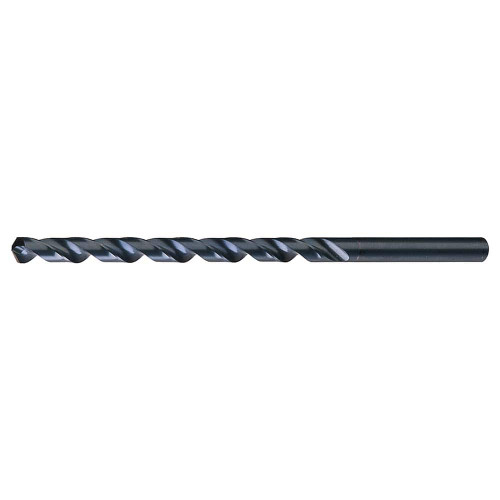

Cle-Line C20462 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 17/32" Drill Diameter

Cle-Line C20462 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 17/32" Drill Diameterzoom

Attributes

Key Value
Applicable MaterialsLow Carbon, Stainless S.
Coolant FedNon-Coolant Through
Cutting Depth9 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Decimal Equivalent0.5312
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.5312"
Diameter (Fraction)17/32"
Drill Bit Point Angle118 Degrees
Drill Bit Size17/32 in
Drill ConstructionGeneral Purpose
Drill Diameter Tolerance+0.0000 in /-0.0012 in
Drill Length ClassExtra Long
Drill Point Length0.1596 in
Drill Size - Decimal In.0.5312 in
Drill Size - Fraction17/32 in
Drill Size SystemFractional
Drill StyleExtra Length Drill
FinishBlack Oxide/Steam Oxide
Finish - MachiningBlack Oxide
Flute Length9 in, 9.0000"
Flute Length (Metric)228.60mm
Flute TypeSpiral
Hand of CutRight
Hand of SpiralRight
ItemExtra Long Drill Bit
MaterialHSS
Material - MachiningHigh Speed Steel
Maximum Drilling Depth2 1/8 in
Number of Flutes2
Overall Length12 in, 12.0000"
Overall Length (Metric)304.80mm
Point Angle118 deg, 118?
Point StyleNotched
Point TypeNotched
Primary Material Applic.Cast Iron, Steel
Primary Material Applic.K, P
Series1806
Shank ConfigurationStraight
Shank Dia.17/32 in
Shank Length3.0000", 3 in
Shank Length (Metric)76.20mm
Shank Size17/32 in, 0.5313"
Shank Size (Metric)13.50mm
Shank TypeStraight
Shank Type - MachiningStraight
SKUC20462
StandardsASME B94.11M
Style1806
Surface ConditionSteam Oxide
Through Coolant (Yes/No)No
Tool Size17/32"
TypeGeneral Purpose Heavy D.
UPC6.97E+11

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMegadepotC2046238.271In StockCle-Line38.27 @ 1
thumbzoomheavydutydepot.comC2046238.273In StockCle-Line38.27 @ 3
thumbzoomZoroG495882940.161In Stock10Cle-Line0.5240.16 @ 1
AmazonSCB00J9LSJKY43.881In StockCle-line43.88 @ 1
thumbzoomGlobal IndustrialWBB254379243.951In StockCle-Line43.95 @ 1
thumbzoomusmegastore.comC2046244.891In StockCle-Line44.89 @ 1
thumbzoomMRO Supply612382451.721In StockCle-Line51.72 @ 1
thumbzoomimsbolt.comC2046285.241In StockCLE-LINE85.24 @ 1
