- mpnC23017
- brandname: Cle-Line
- manufacturername: Cle-Line

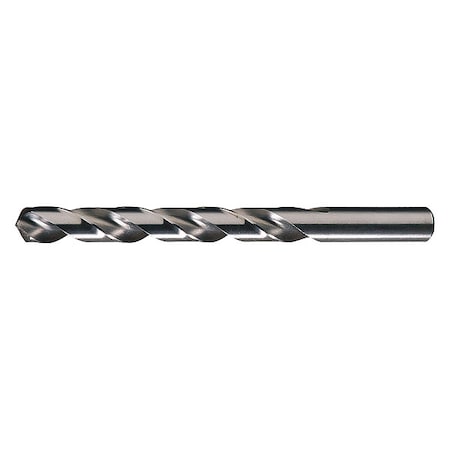

Cle-Line C23017 General Purpose Jobber Length Drill, High Speed Steel, Bright Finish, Straight Shank, 118-Degree Radial Point, 13/32" Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C23017
- Model: C23017
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.4063 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4062" |
| Diameter (Fraction) | 13/32" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright (Uncoated) |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 13/32 in |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.122 in |
| Drill Size - Decimal In. | 0.4062 in |
| Drill Size - Fraction | 13/32 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 3.8750", 3 7/8 in, 3-7/. |
| Flute Length (Metric) | 98.42mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1 5/8 in |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Overall Length | 5 1/4 in, 5-1/4 in, 5.2. |
| Overall Length (Metric) | 133.35mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, N, P |
| Series | 1898 |
| Shank Configuration | Straight |
| Shank Dia. | 25/64 in |
| Shank Length | 1 3/8 in, 1.3750" |
| Shank Length (Metric) | 34.92mm |
| Shank Size | 13/32 in Dia x 1-3/8 in. |
| Shank Size (Metric) | 10.32mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M, DIN 338 |
| Style | 1898 |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | 13/32" |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544940 | 4.227 | 6 | 6 | | Cle-Line | | 4.227 @ 6 |
 | Megadepot | C23017 | 4.67 | 1 | 6 | | Cle-Line | | 4.67 @ 6 |
 | heavydutydepot.com | C23017 | 4.67 | 22 | 6 | | Cle-Line | | 4.67 @ 22 |
 | usmegastore.com | C23017 | 4.87 | 1 | 6 | | Cle-Line | | 4.87 @ 6 |
 | MRO Supply | 6124556 | 5.13 | 10 | 6 | | Cle-Line | | 5.13 @ 10 |
 | Zoro | G4940437 | 5.34 | 6 | 6 | 10 | Cle-Line | 0.13 | 5.34 @ 6 |
