- mpnC23116
- brandname: Cle-Line
- manufacturername: Cle-Line

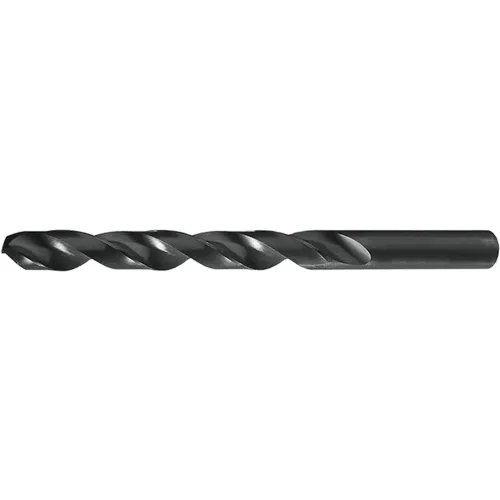

Cle-Line C23116 Heavy Duty Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Letter Size R Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C23116
- Model: C23116
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.339, 0.3390 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3390" |
| Diameter (Wire/Let) | R |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | R |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in,. |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0000 in |
| Drill Size - Decimal In. | 0.339 in |
| Drill Size - Letter | R |
| Drill Size System | Letter |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 7/16 in, 3.4375", 3-7. |
| Flute Length (Metric) | 87.31mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21? to 34? |
| Item | Jobber Length Drill Bit |
| Item? | 50CM50 |
| List Number | 1801 |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2 9/16 in, 1-11/32 in |
| Measurement System | Letter |
| Mfr. Model? | C23116 |
| Number of Flutes | 2 |
| Overall Length | 4.7500", 4-3/4 in, 4 3/. |
| Overall Length (Metric) | 120.65mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Aluminum; Brass; Bronze. |
| Primary Material Applic. | K; N; P |
| Series | 1801 |
| Shank Configuration | Straight |
| Shank Dia. | 21/64 in |
| Shank Length | 1-5/16 in, 1 5/16 in, 1. |
| Shank Length (Metric) | 33.34mm |
| Shank Size | 0.3390", 0.339 in Dia x. |
| Shank Size (Metric) | 8.61mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M; DIN 338 |
| Style | 1801 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | R |
| Type | Heavy Duty |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543199 | 3.8706 | 6 | 6 | | Cle-Line | | 3.8706 @ 6 |
 | Megadepot | C23116 | 4.25 | 1 | 6 | | Cle-Line | | 4.25 @ 6 |
 | heavydutydepot.com | C23116 | 4.25 | 24 | 6 | | Cle-Line | | 4.25 @ 24 |
 | usmegastore.com | C23116 | 4.37 | 1 | 6 | | Cle-Line | | 4.37 @ 6 |
 | MRO Supply | 6124639 | 4.72 | 11 | 6 | | Cle-Line | | 4.72 @ 11 |
| Grainger | 50CM50 | 6.38 | 1 | 6 | | CLE-LINE | | 6.38 @ 6 |
 | Zoro | G4941931 | 28.5 | 1 | 6 | | Cle-Line | 0.09 | 28.5 @ 6 |
