- mpnC23117
- brandname: Cle-Line
- manufacturername: Cle-Line

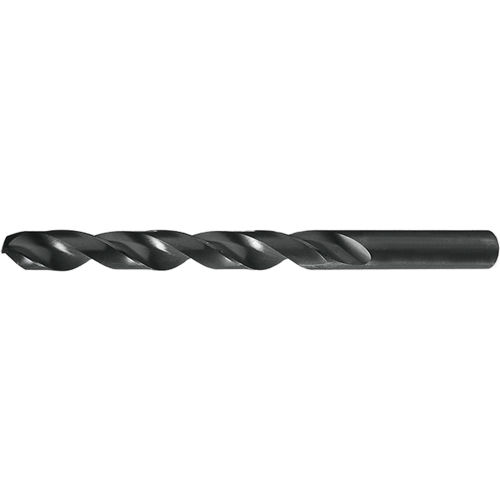

Cle-Line C23117 Heavy Duty Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Letter Size S Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C23117
- Model: C23117
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3480 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3480" |
| Diameter (Wire/Let) | S |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | S |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0000 in |
| Drill Size - Decimal In. | 0.348 in |
| Drill Size - Letter | S |
| Drill Size System | Letter |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 3.5000", 3 1/2 in, 3-1/. |
| Flute Length (Metric) | 88.90mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 5/8 in |
| Number of Flutes | 2 |
| Overall Length | 4.8750", 4-7/8 in, 4 7/. |
| Overall Length (Metric) | 123.82mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1801 |
| Shank Configuration | Straight |
| Shank Dia. | 11/32 in |
| Shank Length | 1 3/8 in, 1.3750" |
| Shank Length (Metric) | 34.92mm |
| Shank Size | 0.3480", 0.348 in Dia x. |
| Shank Size (Metric) | 8.84mm |
| Shank Type | Straight |
| Standards | ASME B94.11M |
| Style | 1801 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | S |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C23117 | 3.93 | 1 | 6 | | Cle-Line | | 3.93 @ 6 |
 | heavydutydepot.com | C23117 | 3.93 | 26 | 6 | | Cle-Line | | 3.93 @ 26 |
 | usmegastore.com | C23117 | 4.82 | 1 | 6 | | Cle-Line | | 4.82 @ 6 |
 | MRO Supply | 6124640 | 5.32 | 10 | 6 | | Cle-Line | | 5.32 @ 10 |
 | Zoro | G4941925 | 5.55 | 6 | 6 | 15 | Cle-Line | 0.09 | 5.55 @ 6 |
 | Global Industrial | WBB2543200 | 26.2194 | 1 | 6 | | Cle-Line | | 26.2194 @ 6 |
| AmazonSC | B00J9I3SVM | 38.01 | 1 | 6 | | Cle-line | | 38.01 @ 6 |
