Franklin AGP15-2UBH

B0078RQQVU

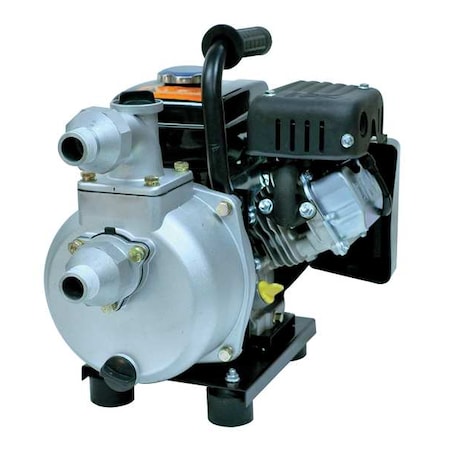

Engine Driven Pump, 2-13/32 HP, 1-1/2 NPT

Engine Driven Pump, 2-13/32 HP, 1-1/2 NPTzoom

Attributes

Key Value
Agency ComplianceEPA, Pump is CARB Exempt
ApplicationGeneral Purpose
Body MaterialAluminum
Casing AdapterAluminum
Check ValveNatural Rubber
Country of Origin (subj.China
Discharge1-1/2" FNPT
Discharge Dia.1-1/2"
Discharge GenderFemale
Discharge StandardNPT
Engine BrandNo Brand
Engine RPM3600
Engine Size87cc
Engine/Motor TypeGas
Flow Rate @ 10 Ft. of H.100.0 gpm
Flow Rate @ 20 Ft. of H.80.0 gpm
Flow Rate @ 40 Ft. of H.51.0 gpm
Flow Rate @ 60 Ft. of H.30.0 gpm
Flow Rate @ 80 Ft. of H.6.0 gpm
Frame Design - PumpsFrame Rails with Top Ha.
Frame MaterialAluminum
GPM of Water @ 10 Ft. o.100
GPM of Water @ 20 Ft. o.80
GPM of Water @ 30 Ft. o.60
GPM of Water @ 40 Ft. o.51
GPM of Water @ 50 Ft. o.42
GPM of Water @ 60 Ft. o.30
GPM of Water @ 70 Ft. o.20
GPM of Water @ 80 Ft. o.6
Height17-1/2"
HP2-2/5
Ignition TypeRecoil
Impeller DesignSemi-Open
Impeller MaterialAluminum
Impeller TypeSemi-Open
Inlet1-1/2" NPT
Inlet Dia.1-1/2"
Inlet StandardNPT
ItemEngine Driven Utility P.
Length19-1/16"
Material of ConstructionAluminum
Max. Diameter Solids1/2"
Max. Head88.0 ft.
Max. Liquid Temp.105 Degrees F
Max. Pressure38 psi
Max. Suction Lift25 ft.
Maximum Discharge Press.38 psi
Mechanical SealBuna N, Carbon Ceramic,.
Number of Impellers1
Outlet1-1/2" NPT
Overall Height17-1/2"
Overall Length19-1/16"
Overall Width14-5/16"
Power SourceGas
Pump MechanismCentrifugal
Roll Bar FrameNone
RPM3600
Seal MaterialBuna N, Carbon Ceramic,.
Self-PrimingYes
Sensor TypeNone
Solids Handling Capacity1/4"
Tank Capacity0.40 gal.
Temp. Range40 Degrees to 105 Degr.
Volute MaterialAluminum
Volute/Wear PlateAluminum
Width14-5/16"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2043142419.991In Stock35Franklin Electric419.99 @ 1
