- mpnPNL2500
- brandname: Mag-Mate
- manufacturername: Mag-Mate

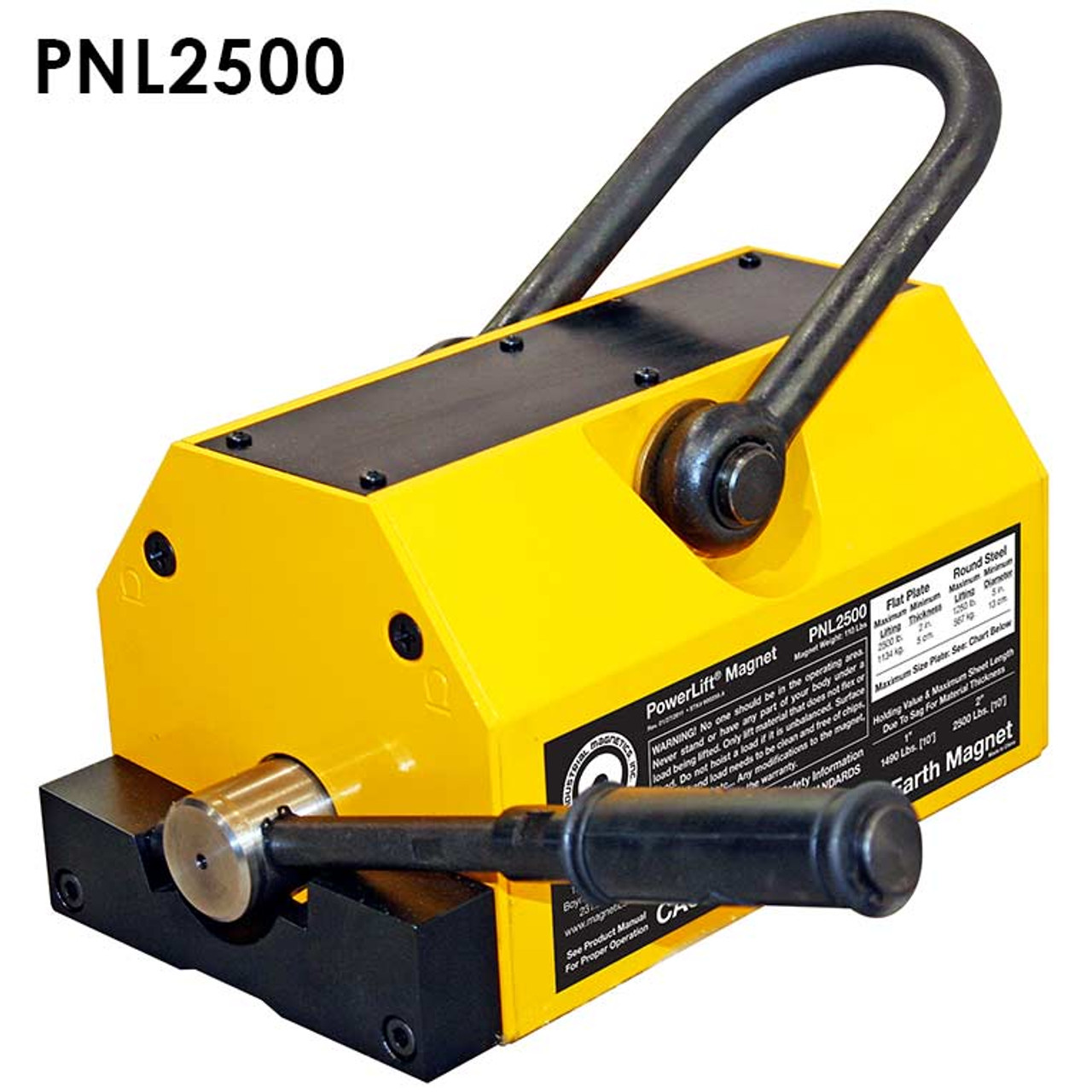

MAG-MATE PNL2500 Powerlift Magnet, Heavy Duty Magnet, with 3 to 1 Lift Saftey, Rare Earth Magnet with 2500 lbs Lifting Capacity, Yellow or Green in Color
- Brand: Mag-Mate
- PartNumber: PNL2500
- Model: PNL2500
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Industrial Magnetics Inc
- Label: Industrial Magnetics Inc
Attributes
| Key | Value |
|---|
| (hidden) series builder | PNL2500 MAG-MATE |
| Bail Opening Height | 4-3/4", 4 3/4 in |
| Bail Opening Width | 3-3/4", 3 3/4 in |
| Country of Origin (subj. | China |
| Features | RFID Enabled |
| Flat Capacity | Up to 5,000 lb Flat Cap. |
| Footnotes | Max. Rated Capacities B. |
| Handle (in) | 10-3/4 |
| Handle Length | 10 1/8 in, 10-1/8" |
| Item | Lifting Magnet |
| Magnet Activation | Locking On/Off Handle |
| Magnet Height | 6 1/2 in, 6-1/2" |
| Magnet Ht. (in) | 6-1/2 |
| Magnet Length | 10-5/8", 10 5/8 in |
| Magnet Material | Neodymium |
| Magnet Surface Size | 10 5/8 in x 7 1/8 in |
| Magnet Wd. (in) | 7-1/8 |
| Magnet Width | 7-1/8", 7 1/8 in |
| Max. Heat Resistant Tem. | 180 Degrees F, 180 Deg. |
| Max. Rated Capacity @ M. | 1490 lb., 1,490 lb |
| Max. Rated Flat Capacity | 2,500 lbs., 2,500 lb |
| Max. Rated Round Capaci. | 1,250 lb, 1,250 lbs. |
| Min. Material Thickness. | 1 in, 1" |
| Overall Height | 8 7/8 in, 8-7/8" |
| Overall Ht. (in) | 8-7/8 |
| Overall Length | 12-5/8", 12 5/8 in |
| Overall Ln. (in) | 12-5/8 |
| Overall Size | 12 5/8 in x 7 1/8 in |
| Overall Width | 7-1/8", 7 1/8 in |
| Product Type | Lift Magnet |
| Required Material Thick. | 3", 3 in |
| Series | PowerLift |
| Standards | ASME B30.20 |
| Weight (lbs) | 122 |
| Working Load Limit (fla. | 2500 lbs. |
| Working Load Limit (rou. | 1250 lbs. |
