MAGNECRAFT 784XDXC-120A

B00DED7L6G

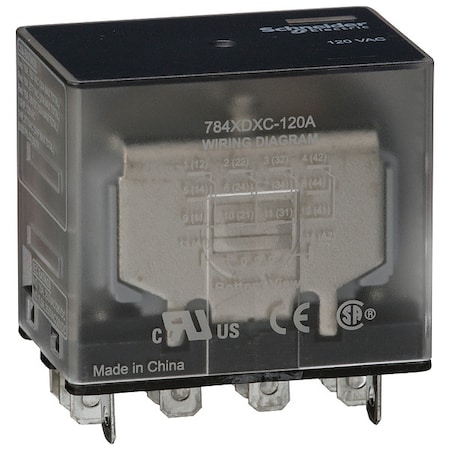

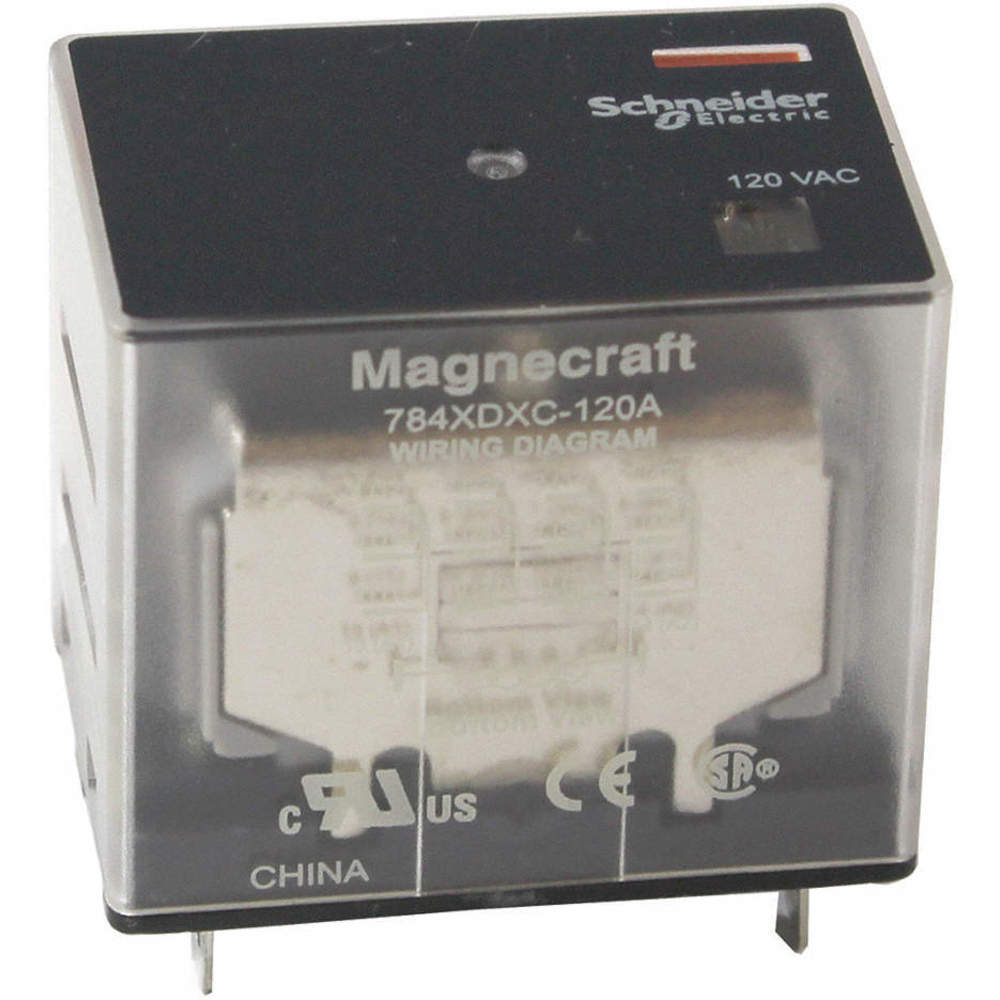

Plug in Relay, 14 Pins, Square, 120VAC

Plug in Relay, 14 Pins, Square, 120VACzoom

Attributes

Key Value
AC Contact Rating - Rel.12A @ 277V, 15A @ 120V
Alternate Mfr Part Numb.C844037
ApprovalsCE, CSA, UL
Base Type - Plug In Rel.Square
Bifurcated ContactNo
Body Depth1.37 in
Body Depth - Relay1.1 in
Body Height1.07 in
Body Height - Relay1.4 in
Body Width1.6 in
Body Width - Relay1.6 in
BrandSchneider Electric
Coil Resistance2220 Ohms
Coil Volts120V AC
Contact Current Rating15 A
Contact Form4PDT
Contact Form - Relay4PDT
Contact MaterialSilver Alloy, Gold Flas.
Contact Voltage Rating300
Contacts4PDT
Current Rating15 A
Current Stock47
DC Contact Rating - Rel.12A @ 28V
Depth0.157 in
DiodeNo
EnclosurePlastic
Family SeriesSchneider Relays, 700 S.
FeaturesGold Flashed Contacts
Flat Pin Width0.187 in
Gross Weight0.0022 lbs
Height1.098" (27.9mm)
HP @ 120V1/2 hp
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number784XDXC-120A
Lead TimeExpected to ship in 1-2.
Length1.397 in
Life10000000 (Mechanical), .
ManufacturerSchneider
Manufacturer Part NumberC844037M
Max Current15 A
Maximum Operating Tempe.55 ?C
Mechanical LatchNo
Minimum Operating Tempe.-40 ?C
MountingPlug In
Mounting - RelayPlug In
Mounting TypeSocket Mount
Mpn784XDXC-120A
Net Weight0.0022 lbs
Nominal Coil Voltage120 VAC
Number of Electrical Co.14
Number of Pins - Relay14
Overall Depth1.66 in
Overall Height - Relay1.64 in
Power Consumption - Rel.1.5 VA
Primary TypePower Relays
Product Series700
Published Coil Voltage120 VAC
Push-to-TestNo
Rating @ 120 VAC15 A
Rating @ 220/240/277 VAC12 A
Rating @ 24/28/30 VDC12 A
RoHSYes
Safety GuidedNo
Series784 Series
SKUZO-G3179303
StandardsCE Certified, CSA Certi.
Status IndicatorMechanical Flag, No
SubCategoryElectrical
Termination.187 " Flat Blade

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
gordonelectricsupply.com784XDXC120A11.691In Stock10SQUARE D11.69 @ 1
Onlinecomponents.com784XDXC-120A12.738114Magnecraft / Schneider Electric12.738 @ 1
Mouser528-784XDXC-120A16.8815Schneider Electric16.88 @ 1
Verical784XDXC-120A18.24352Schneider Electric18.24 @ 3
thumbzoomsustainablesupply.comC120977820.361In StockSchneider Electric0.1720.36 @ 1
thumbzoomNewark10M656823.48133SCHNEIDER ELECTRIC/LEGACY RELAY23.48 @ 1
thumbzoomZoroG317930323.99158Schneider Electric0.1723.99 @ 1
thumbzoomGalco784XDXC-120A-MGCR24.681In StockSchneider0.002224.68 @ 1
thumbzoomRaptor SuppliesAX3MNB32.50371151In StockSCHNEIDER ELECTRIC32.5037115 @ 1
thumbzoomsimsupply.comZO-G317930334.36147Schneider Electric34.36 @ 1
us.rs-online.com7018534647.33150Schneider Electric/Legacy Relays47.33 @ 1
