Marathon Electric X013

B0042GGOXA

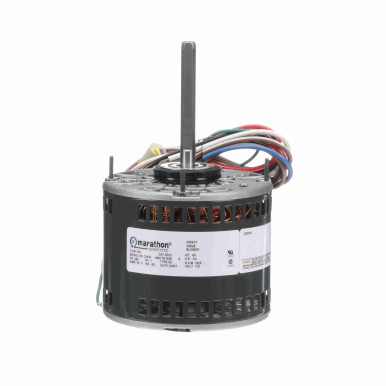

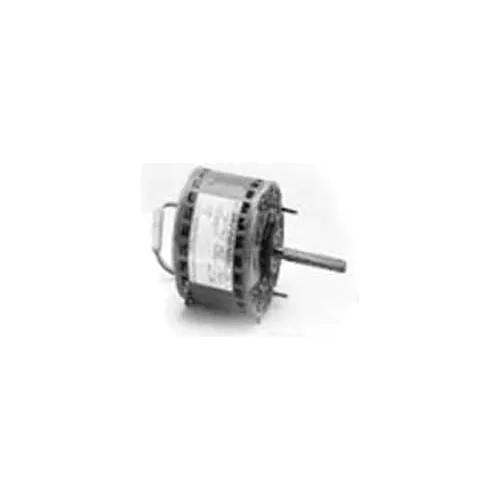

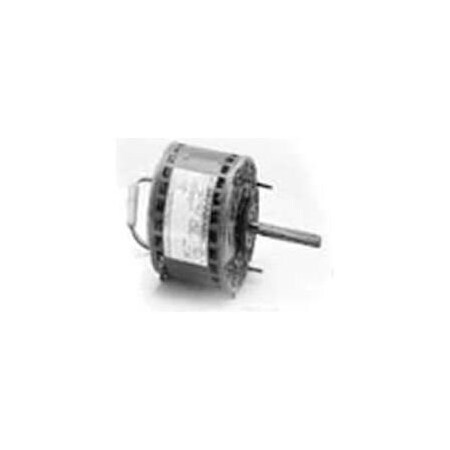

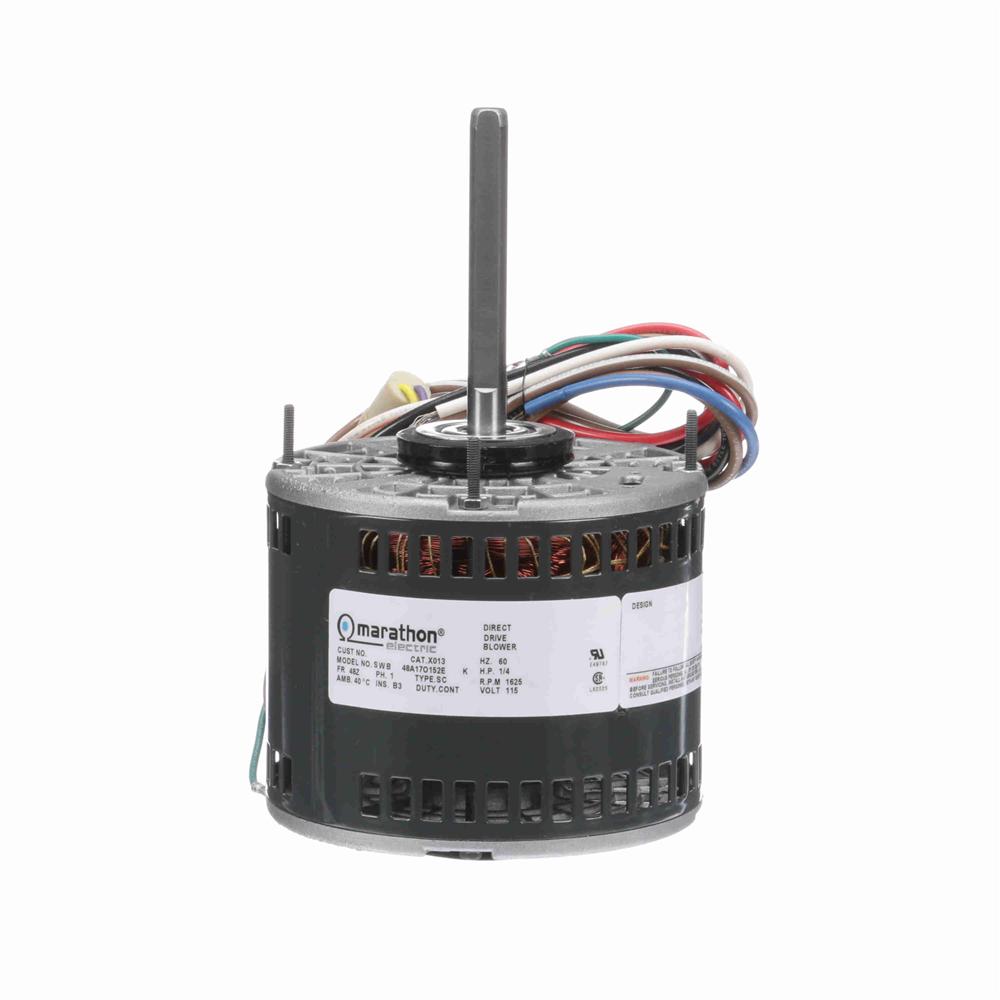

Marathon X013 48Y Frame Open Air Over 48A17O152 Direct Drive Motor 1/4 hp, 1625 RPM, 115 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X013 48Y Frame Open Air Over 48A17O152 Direct Drive Motor 1/4 hp, 1625 RPM, 115 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Boltzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A17O152
Amps2.9
applications:Blowers, Fans
ApprovalsCSA, UR
base rpm:1625 rpm
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.00 (in.) (in.)
Capacitor7.5MFD/370VAC Required
Catalog NumberX013
CEN
CompositionRolled Steel
Country of Origin (subj.United States
CSAY
Current Rating2.9 A
DE Bearing TypeBall
DEM ReferenceMA#X013
DutyContinous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency60, 0.6
Efficiency %60 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
enclosure type:OAO (Open Air-Over)
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:48Y
Frame Type48Z
Frequency60, 60 Hz
frequency rating:60 Hz
full load current:2.90 A
Gross Weight0 lbs
Horsepower1/4 hp
Horsepower Rating0.25 HP
HP1/4
Hz60
Insulation ClassB
insulation class:B
Insulation TypeClass B
IP Code10
ip rating:10
Item NumberX013
Kilowatts0.19 kW
KVA CodeC
ManufacturerMarathon Electric
Manufacturer Model #048A17O152
Manufacturer Part Number048A17O152
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Blower/Fan Motor
Motor Diameter5-5/8"
motor horsepower:1/4 hp, 0.25 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length4"
motor supply voltage:115 V
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Ring - Extend.
mounting type:Resilient Base/Extended.
Net Weight12 lbs
Number of Poles4
Number of Speeds3
ODE Bearing TypeBall
Overall Length10", 10 "
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1,625 RPM, 1625 rpm, 16.
RPM (Nameplate)1625
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1
service factor:1.00
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
shaft diameter:0.50 in
Shaft Extension4.06 (in.) (in.)
Shaft Length4.06"
Shaft TypeSingle Special Extension
Ship Weight12 lbs.
Special FeaturesService Factor - 1
Speeds3
StandardsUL Recognized
standards met:UL, CSA
Supply Voltage115 VAC
synchronous rpm:1800 rpm
Thermal ProtectionAutomatic
thermal protection:Automatic
TypePermanent Split Capacit.
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
UPC Code722856038616
Voltage115
Voltage (AC)115 VAC
Volts115
weight:12 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX013129.01In StockMARATHON129.0 @ 1
thumbzoommotionindustries.com04740842154.21In StockMarathon Electric154.2 @ 1
thumbzoomGalcoX013-MARA167.31In StockMarathon Electric12.0167.3 @ 1
thumbzoomapexindustrialautomation.comX013169.531219Marathon169.53 @ 1
thumbzoomMRO Supply2269564169.81In StockMarathon Electric169.8 @ 1
thumbzoomktool.netX013172.361In StockMarathon Motors172.36 @ 1
us.rs-online.com72238266198.311In StockMarathon Motors198.31 @ 1
thumbzoomemotorpro.comX013206.491In StockMarathon12.0206.49 @ 1
thumbzoomDreisilkerMA-RBC-X013207.371In StockMarathon207.37 @ 1
thumbzoommidwestapplianceparts.comX013-MT-P214.1611Marathon214.16 @ 1
thumbzoomNational Supply NetworkB871878220.111In StockMARATHON MOTORS220.11 @ 1
thumbzoomcbtcompany.comX013223.521In StockMarathon Electric Motors223.52 @ 1
thumbzoomVoomi SupplyX013232.621In StockMARATHON MOTORS232.62 @ 1
thumbzoomindustrialstores.comX013234.4711Marathon Motors234.47 @ 1
thumbzoomGlobal IndustrialWBB871878235.951In StockMarathon Motors235.95 @ 1
kirbyrisk.com1933280258.921In StockMarathon258.92 @ 1
thumbzoomGuardianMARSX013259.751In StockMarathon259.75 @ 1
thumbzoomZoroG104937278346.681In StockMarathon Motors346.68 @ 1
