Marathon Electric X016

B0042GD9IS

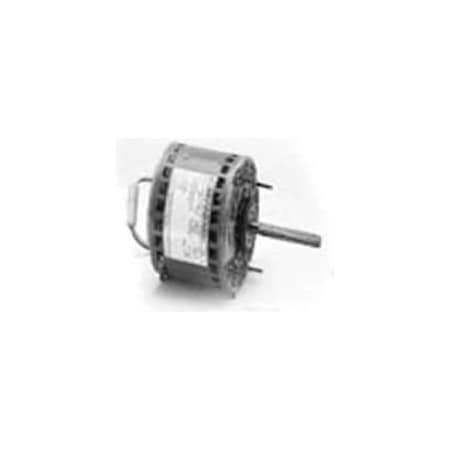

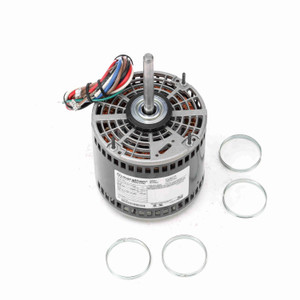

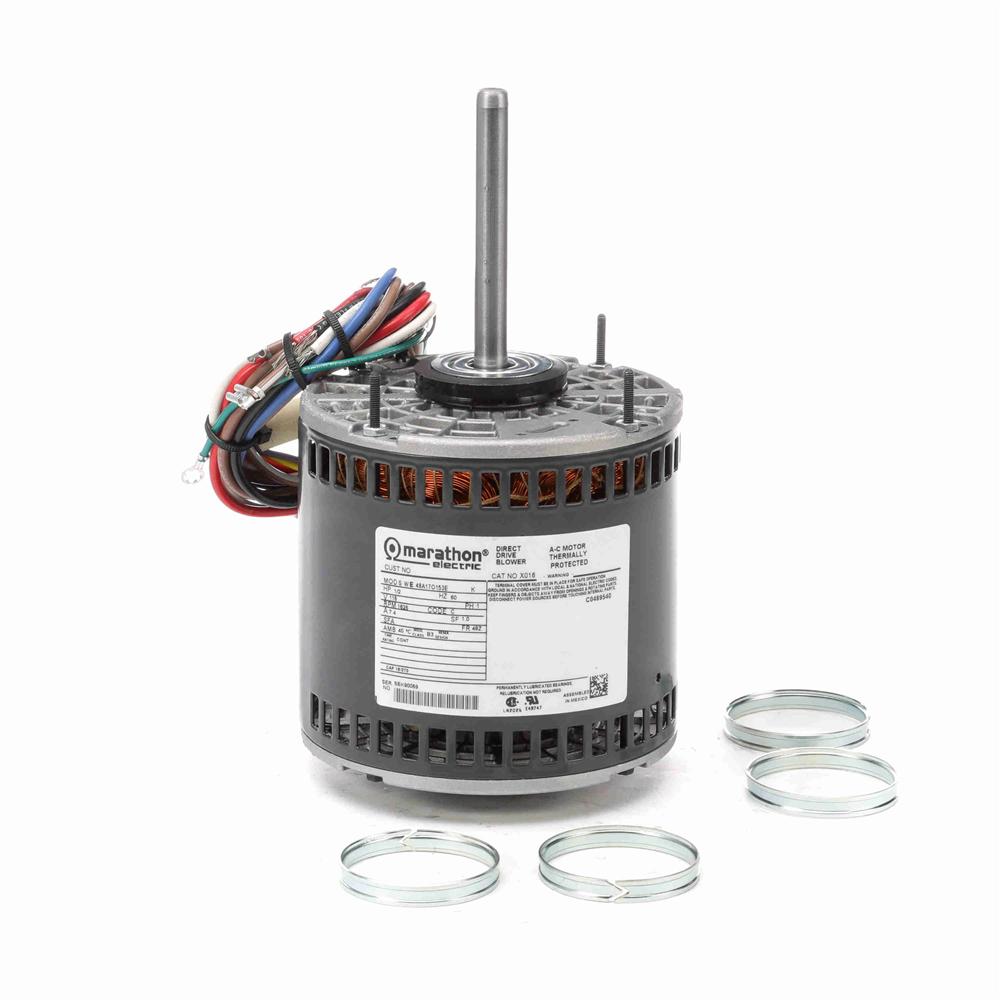

Marathon X016 48Y Frame 48A17O153 Open Air Over Direct Drive Motor, 1 Phase, Permanent Split Capacitor, Ball Bearing, 1/2 hp, 1625 RPM, 3 Speed, 115 VAC

Marathon X016 48Y Frame 48A17O153 Open Air Over Direct Drive Motor, 1 Phase, Permanent Split Capacitor, Ball Bearing, 1/2 hp, 1625 RPM, 3 Speed, 115 VACzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A17O153
Amps7.4
applications:Blowers, Fans
ApprovalsCSA, UR
base rpm:1625 rpm
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.25 (in.) (in.)
Capacitor15MFD/370VAC Required
Catalog NumberX016
CEN
CompositionRolled Steel
Country of Origin (subj.United States
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X016
DutyContinous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency0.717
Efficiency %71.7 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
enclosure type:OAO (Open Air-Over)
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:48Y
Frame Type48Z
Frequency60, 60 Hz
frequency rating:60 Hz
full load current:5.00 A
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Insulation ClassB
insulation class:B
IP Code10
ip rating:10
Item NumberX016
Kilowatts0.37 kW
KVA CodeC
ManufacturerMarathon Electric
Manufacturer Model #048A17O153
Manufacturer Part Number048A17O153
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Blower/Fan Motor
Motor Diameter5-5/8"
motor horsepower:0.50 hp, 1/2 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length4.75"
motor supply voltage:115 V
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Ring - Extend.
mounting type:Resilient Base/Extended.
Net Weight16 lbs
Number of Poles4
Number of Speeds3
ODE Bearing TypeBall
Overall Length10.25", 10.25 "
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1,625 RPM, 1625
RPM (Nameplate)1625
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1
service factor:1.00
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
shaft diameter:0.50 in
Shaft Extension4.06 (in.) (in.)
Shaft Length4.06"
Shaft TypeSingle Special Extension
Ship Weight16 lbs.
Speeds3
standards met:UL, CSA
synchronous rpm:1800 rpm
Thermal ProtectionAutomatic
thermal protection:Automatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage115
Voltage (AC)115 VAC
Volts115
weight:16 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX016148.01In StockMARATHON148.0 @ 1
AmazonTPB0042GD9IS164.611In Stock2Marathon Electric164.61 @ 1
thumbzoommotionindustries.com04740844182.531In StockMarathon Electric182.53 @ 1
thumbzoomGalcoX016-MARA198.431In StockMarathon Electric16.0198.43 @ 1
thumbzoomMRO Supply2269567200.361In StockMarathon Electric200.36 @ 1
thumbzoomapexindustrialautomation.comX016201.081308Marathon201.08 @ 1
thumbzoomktool.netX016204.041In StockMarathon Motors204.04 @ 1
us.rs-online.com72650100232.021In StockMarathon Motors232.02 @ 1
thumbzoomemotorpro.comX016244.431In StockMarathon16.0244.43 @ 1
thumbzoomDreisilkerMA-RBC-X016244.681In StockMarathon244.68 @ 1
thumbzoommidwestapplianceparts.comX016-MT-P253.4914Marathon253.49 @ 1
thumbzoomNational Supply NetworkB871944259.791In StockMARATHON MOTORS259.79 @ 1
thumbzoomcbtcompany.comX016265.111In StockMarathon Electric Motors265.11 @ 1
thumbzoomVoomi SupplyX016275.351In StockMARATHON MOTORS275.35 @ 1
thumbzoomindustrialstores.comX016277.5313Marathon Motors277.53 @ 1
kirbyrisk.com2196986305.511In StockMarathon305.51 @ 1
thumbzoomGuardianMARSX016307.821In StockMarathon307.82 @ 1
thumbzoomptacsolutions.comX016310.311In StockMarathon Motors310.31 @ 1
thumbzoomZoroG704937159472.461In StockMarathon Motors472.46 @ 1
