Marathon Electric X021

B007ZQPMHS

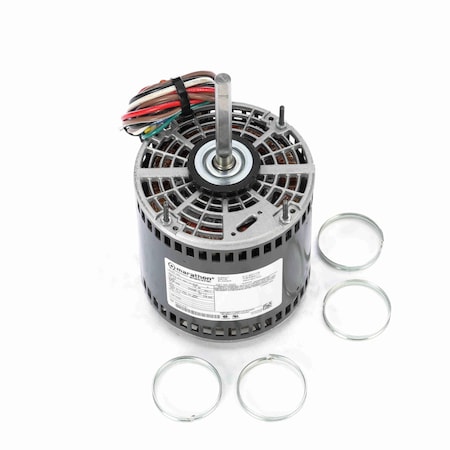

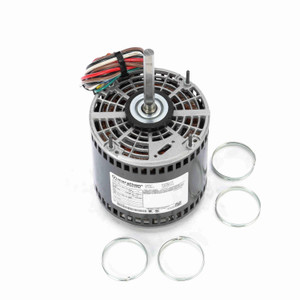

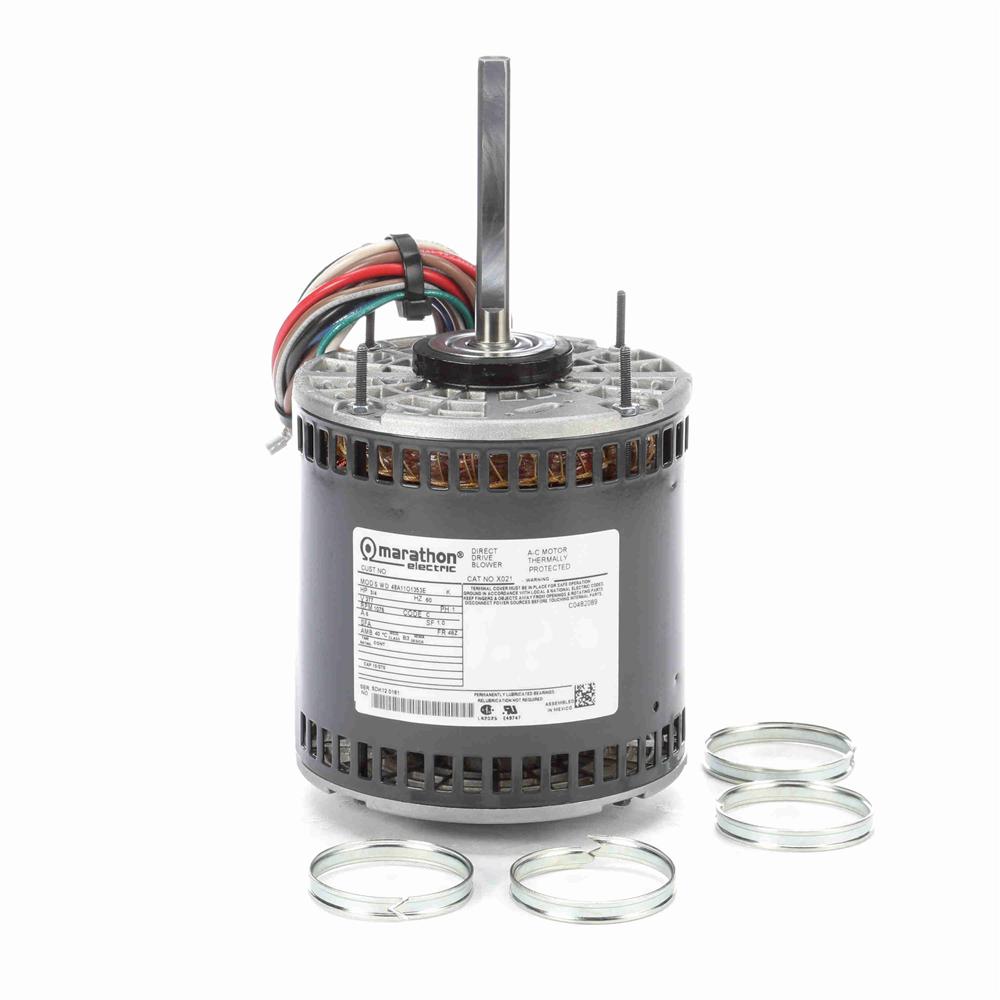

Marathon X021 48Y Frame Open Air Over 48A11O1353 Direct Drive Motor 3/4 hp, 1075 RPM, 277 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X021 48Y Frame Open Air Over 48A11O1353 Direct Drive Motor 3/4 hp, 1075 RPM, 277 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Boltzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1353
Amps5.0, 5
applications:Blowers, Fans
ApprovalsCSA, UR
base rpm:1075 rpm
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.75 (in.) (in.)
Capacitor10MFD/370VAC Required
Catalog NumberX021
CEN
CompositionRolled Steel
CSAY
Current Rating5 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency0.66, 66
Efficiency %66 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
enclosure type:OAO (Open Air-Over)
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:48Y
Frame Type48Z
Frequency60, 60 Hz
frequency rating:60 Hz
full load current:5.00 A
full load efficiency:66.00 %
Gross Weight0 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60
Insulation ClassB
insulation class:B
Insulation TypeClass B
IP Code10
ip rating:10
Item NumberX021
Kilowatts0.56 kW
KVA CodeC
ManufacturerMarathon Electric
Manufacturer Model #048A11O1353
Manufacturer Part Number048A11O1353
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Blower/Fan Motor
Motor Diameter5-5/8"
motor horsepower:0.75 hp, 3/4 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length5.25"
motor supply voltage:277 V
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
mounting type:Resilient Base/Extended.
Net Weight19 lbs
Number of Poles6
Number of Speeds3
ODE Bearing TypeBall
Overall Length10.75", 10.75 "
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075 rpm, 1075, 1,075 R.
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
service factor:1.00
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
shaft diameter:0.50 in
Shaft Extension4.06 (in.) (in.)
Shaft Length4.06"
Shaft TypeSingle Special Extension
Ship Weight20 lbs.
Special FeaturesService Factor - 1
Speeds3
StandardsUL Recognized
standards met:UL, CSA
Supply Voltage277 VAC
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
thermal protection:Automatic
TypePermanent Split Capacit.
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
UPC Code722856038692
Voltage277
Voltage (AC)277 VAC
Volts277
weight:19 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX021171.01In StockMARATHON171.0 @ 1
thumbzoommotionindustries.com04214113216.511In StockMarathon Electric216.51 @ 1
thumbzoomapexindustrialautomation.comX021229.3611Marathon229.36 @ 1
thumbzoomGalcoX021-MARA235.391In StockMarathon Electric19.0235.39 @ 1
thumbzoomMRO Supply2269534237.91In StockMarathon Electric237.9 @ 1
thumbzoomktool.netX021242.011In StockMarathon Motors242.01 @ 1
thumbzoomPurvisX021255.251In StockMarathon Electric255.25 @ 1
us.rs-online.com72237926279.041In StockMarathon Motors279.04 @ 1
thumbzoomemotorpro.comX021289.911In StockMarathon20.0289.91 @ 1
thumbzoomDreisilkerMA-RBC-X021290.531In StockMarathon290.53 @ 1
thumbzoomNational Supply NetworkB871968298.941In StockMARATHON MOTORS298.94 @ 1
thumbzoommidwestapplianceparts.comX021-MT-P300.71In StockMarathon300.7 @ 1
thumbzoomZoroG506629511305.811In StockMarathon305.81 @ 1
industrialmotors.comX021315.01196MARATHON ELECTRIC315.0 @ 1
thumbzoomGuardianMARSX021365.521In StockMarathon365.52 @ 1
thumbzoomGlobal IndustrialWBB871931643.01In StockMarathon Motors643.0 @ 1
