Marathon Electric X020

B007ZQPM28

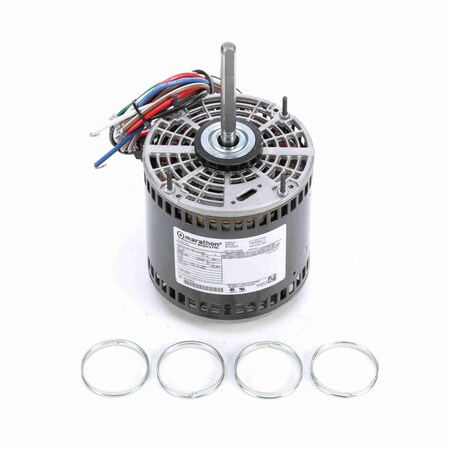

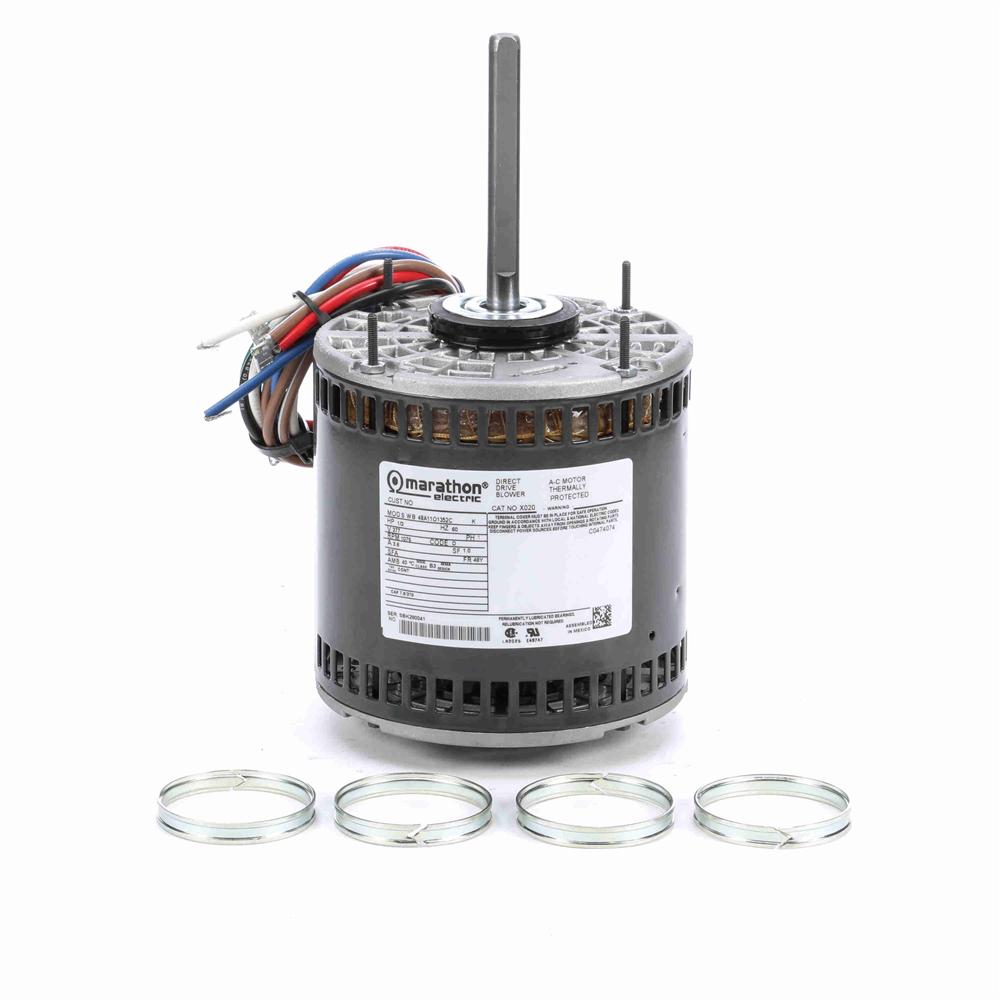

Marathon X020 48Y Frame Open Air Over 48A11O1352 Direct Drive Motor 1/2 hp, 1075 RPM, 277 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X020 48Y Frame Open Air Over 48A11O1352 Direct Drive Motor 1/2 hp, 1075 RPM, 277 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Boltzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1352
Amps3.6
BearingsBall
BrandMarathon
C-Dimension10.50 (in.) (in.)
Capacitor7.5MFD/370VAC Required
Catalog NumberX020
CEN
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinous
Duty CycleContinuous
Efficiency0.673
Electrical TypePermanent Split Capacit.
EnclosureOPAO
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60
Gross Weight0 lbs
HP1/2
Hz60
Insulation ClassB
IP Code10
KVA CodeD
Manufacturer Model #048A11O1352
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length5"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Ring - Extend.
Number of Speeds3
ODE Bearing TypeBall
Overall Length10.5"
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension4.06 (in.) (in.)
Shaft Length4.06"
Shaft TypeSingle Special Extension
Ship Weight17 lbs.
Speeds3
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage277
Volts277
