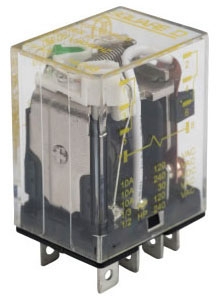

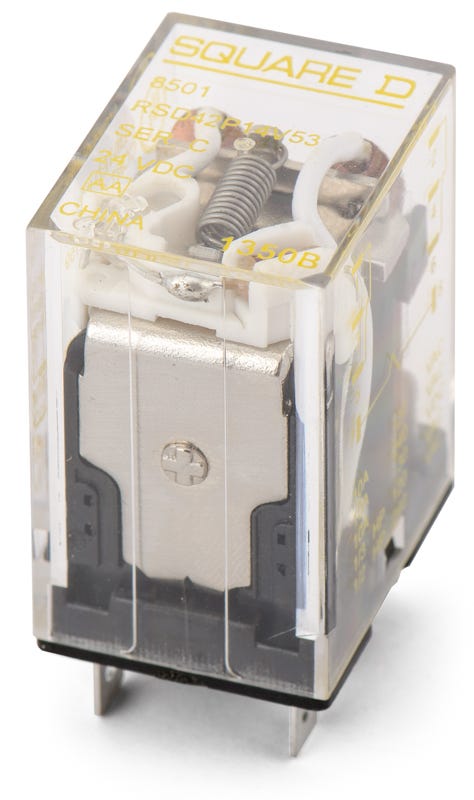

Square D 8501RSD42P14V53 Miniature GP Plug in Relay/DPDT / 10A / 24VDC

Square D 8501RSD42P14V53 Miniature GP Plug in Relay/DPDT / 10A / 24VDCzoom

Attributes

Key Value
Application8501NR42
Base Type - Plug In Rel.Square
Body Depth1.65 in
Body Depth - Relay1.07 in
Body Height1.07 in
Body Height - Relay1.37 in
Body Width0.83 in
Body Width - Relay0.83 in
BrandSquare D, Schneider Ele.
Catalog Number8501RSD42P14V53
CategoryRelays
Coil Insulation-
Coil TypeNon Latching
Coil Voltage24VDC, 24 V DC, 24 VDC
Coil Volts24V DC
ConnectionSPADE
Contact ConfigurationDPDT
Contact Current Rating15 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialSilver Tin Oxide, Silve.
Contact Rating (Current)15 A
Contact Voltage Rating300 VAC
Control Voltage24
Country of OriginCN - China, China
Current Rating15 A
Current Stock22
DC Contact Rating - Rel.15A @ 24V, 15 A @ 24V
Depth41.8 mm
DescriptionPLUG IN RELAY, TYPE R, .
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number4008-8501RSD42P14V53-ND
ECCNEAR99
FeaturesStandard Relay, Spade T.
Flat Pin Width0.18 in
FunctionGeneral Purpose
GTIN00785901131397
Gtin785901131397
Height27.3 mm
HP @ 120VNot Rated
HP @ 240VNot Rated
HP Rating0.5 120 V AC || 1 277 V.
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item TypeStandard;Miniature Rela.
Lead TimeExpected to ship in 1-2.
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.8501RSD42P14V53
Manufacturer Standard L.7 Weeks
Materialsilver alloy, gold flas.
MfrSchneider Electric
MountingSide, Socket
Mounting - RelayPlug In, Plug-In
Mounting TypeSocket Mount, Socketable
Mpn8501RSD42P14V53
Must Operate Voltage-
Must Release Voltage-
Number of Pins8
Number of Pins - Relay8
Operate Time20 ms
Operating Temperature-40-131 A Degrees F, -4.
Overall Depth1.65 in
Overall Height - Relay1.65 in
PackageBox
Power Consumption - Rel.1.2 W
Primary TypePower Relays
Product StatusActive
Push To TestNo
Relay TypeElectromechanical, Gene.
Release Time20 ms
Seal Rating-
Series8501R Series, 8501R, Sq.
SKUZO-G7573842
Socket Code - RelayD
Special FeaturesLED, Green indicator re.
StandardUL LISTED-UL RECOGNIZED.
StandardsCE Marked, CSA, UL, CE .
Status IndicatorLED
SubCategoryElectrical
Switching Voltage300VAC, 30VDC - Max
TerminationQC Tabs
Termination StylePlug In
Time Cycle20 ms - pick-up || 20 m.
Typestandard
UNSPSC39122325
Upc785901131397
UPC785901131397
UPC Code785901131397
Use With8501NR42
Voltage Rating240 V
Warranty DescriptionContractual Warranty:18.
Width21 mm
