Taco 0010-F3

B0009X0620

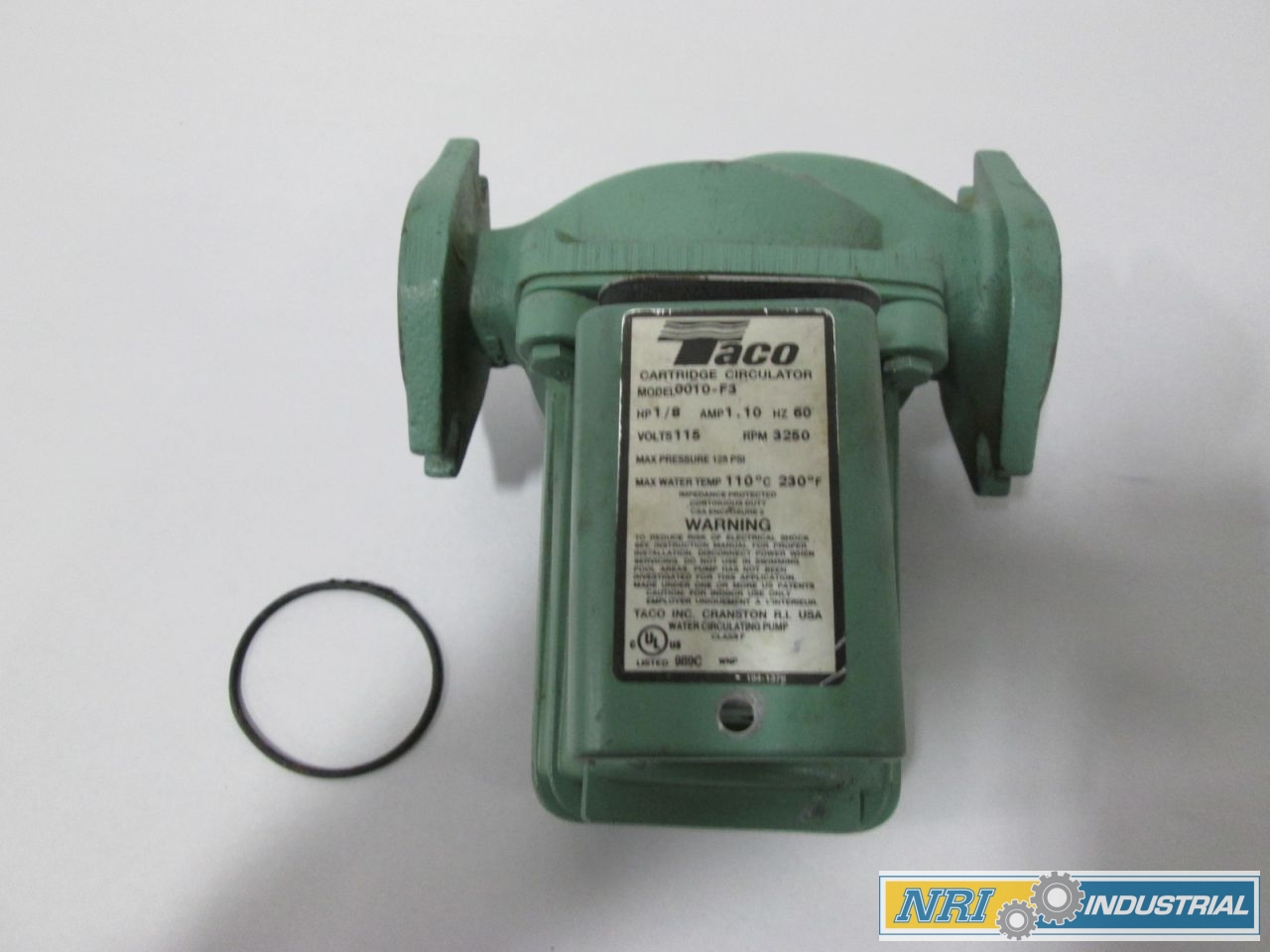

Taco 0010-F3 Cast Iron Cartridge Circulator-0010 Series, 115 V, Green

Taco 0010-F3 Cast Iron Cartridge Circulator-0010 Series, 115 V, Greenzoom

Attributes

Key Value
AMP1.1
Amps1.10 A
ANSIANSI 372
Body Gasket MaterialEPDM
CategoryIndustrial Automation a.
Compatible Discharge Pi.3/4 in, 1 in, 1 1/4 in,.
Compatible Intake Pipe .3/4 in, 1 in, 1 1/4 in,.
Compatible Media TypeWater
Connection StyleFlange
Connection TypeFlanged, Flange
Depth7-1/4 in
Face to Face Dimension6 3/8 in
Flange or Union IncludedNo
Flow Rate30 gpm
For Use With Potable Sy.Yes
Frequency60 Hz
Height6-3/8 in
Horsepower1/8 hp, 1/8
Housing MaterialCast iron
HP1/8 hp
Impeller MaterialPolypropylene
IncludesFlange Gaskets, Impedan.
Inlet/Outlet Size3/4 in to 1-1/2 in
ItemHydronic Circulating Pu.
Length7 1/4 in, 7-1/4 in
Manufacturer Warranty L.3 yr
Manufacturers Warranty .3 yr
Max. GPM @ Head30.5 gpm @ 1 ft
Maximum Feet of Head9, 10 ft
Maximum Flow Rate @ 1 F.32 gpm
Maximum Flow Rate @ 10 .0 gpm
Maximum Flow Rate @ 15 .0 gpm
Maximum Flow Rate @ 5 F.22 gpm
Maximum Flow Rate @ 50 .22 gpm
Maximum Media Temperatu.230 Degrees F
Maximum Operating Press.150 psi
Maximum RPM3,250 RPM
Maximum Temperature230
MfrTaco
Min. GPM @ Head4 gpm @ 10 ft
Minimum Media Temperatu.40 Degrees F
Minimum Temperature40
Mounting LocationIn-Line
Nameplate Voltage115V AC
NSFNSF 372
NSF CertifiedYes
Number of Speeds1
Overall Height6.38 in
Overall Length7.25 in
Overall Width5.38 in
PackageBox
Part StatusActive
Phase1, Single
Phase - Pumps1
Pressure - Maximum125 psi
Product TypeCirculator Pump
Pump Body MaterialCast iron
Pump Housing MaterialCast iron
Pump Phase1
Pump TypeSelf Lubricating, Stand.
Rotor TypeWet
RPM3,250 RPM, 3250
Series0010-f3, *, 0010
Series Family00
StandardsUL-CUS
UL ListedYes
Voltage115V
Volts115V
Width5 3/8 in, 5-3/8 in
