WALTER TITEX A6181TFT-6.8

mpnA6181TFT-6.8
brandname: Walter Titex
manufacturername: Walter Titex

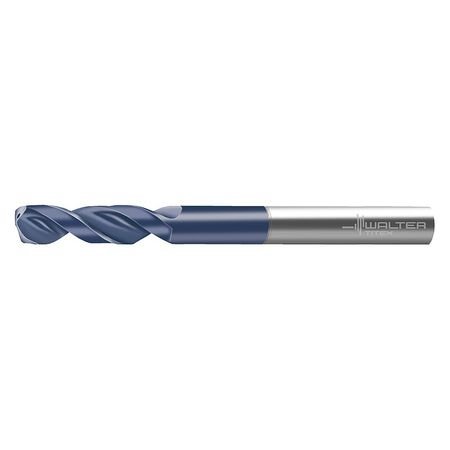

Jobber Drill,6.80mm,Carbide

Jobber Drill,6.80mm,Carbide

zoom

Brand: WALTER TITEX
PartNumber: A6181TFT-6.8
Manufacturer: WALTER TITEX
Label: WALTER TITEX

Attributes

Key	Value
Application	Steel, Stainless Steel,.
Coolant Fed	Coolant Through
Coolant Through	Yes
Country of Origin (subj.	France
Cutting Direction	Right Hand
Decimal Equivalent	0.2677
Depth x Dia. Ratio	2xD
Depth:Dia. Ratio	2xD
Drill Bit Dimension Type	Metric
Drill Bit Finish	TiNAl
Drill Bit Grouping	Drill Bit
Drill Bit Material	Solid Carbide
Drill Bit Point Angle	150 Degrees
Drill Bit Point Type	Self-Centering Point
Drill Bit Size	6.80 mm
Drill Diameter Tolerance	P7
Drill Length Class	Jobber Length
Drill Point Length	0.036 in
Drilling Depth	23.00mm
Finish - Machining	TiNAl
Flute Length	34.00 mm
Flute Type	Spiral
Grade	K30F
Item	Jobber Length Drill Bit
List Number	A6181
Material - Machining	Carbide
Material Grade - Machin.	K30F
Maximum Drilling Depth	34 mm
Measurement System	Metric
Number of Coolant Holes	2
Number of Pieces	1
Overall Length	91.00 mm
Point Type	Self-centering
Primary Material Applic.	Aluminum, Brass, Bronze.
Primary Material Applic.	K, M, N, P, S
Series	XD-pilot
Shank Dia.	8.00 mm
Shank Length	36 mm
Shank Type - Machining	Straight
Sheeter Drill	No
Standards	DIN 6537

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G6123607	121.99	1	In Stock		Walter Titex	0.15	121.99 @ 1
	AmazonTP	B017D6T2S4	180.35	1	In Stock	30	Walter		180.35 @ 1
	Raptor Supplies	AF8QHT	202.9666275	1	In Stock		WALTER		202.9666275 @ 1
