- mpnIDCSWDM3554T
- brandname: Baldor
- manufacturername: Baldor

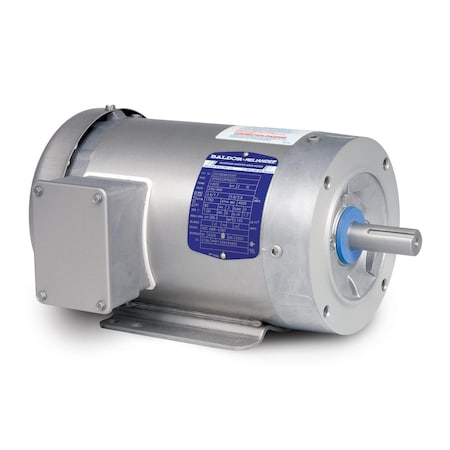

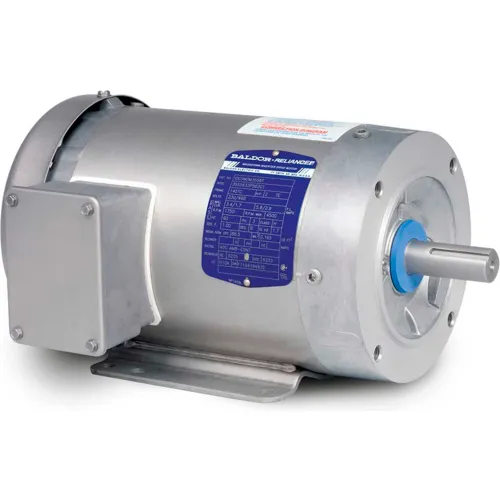

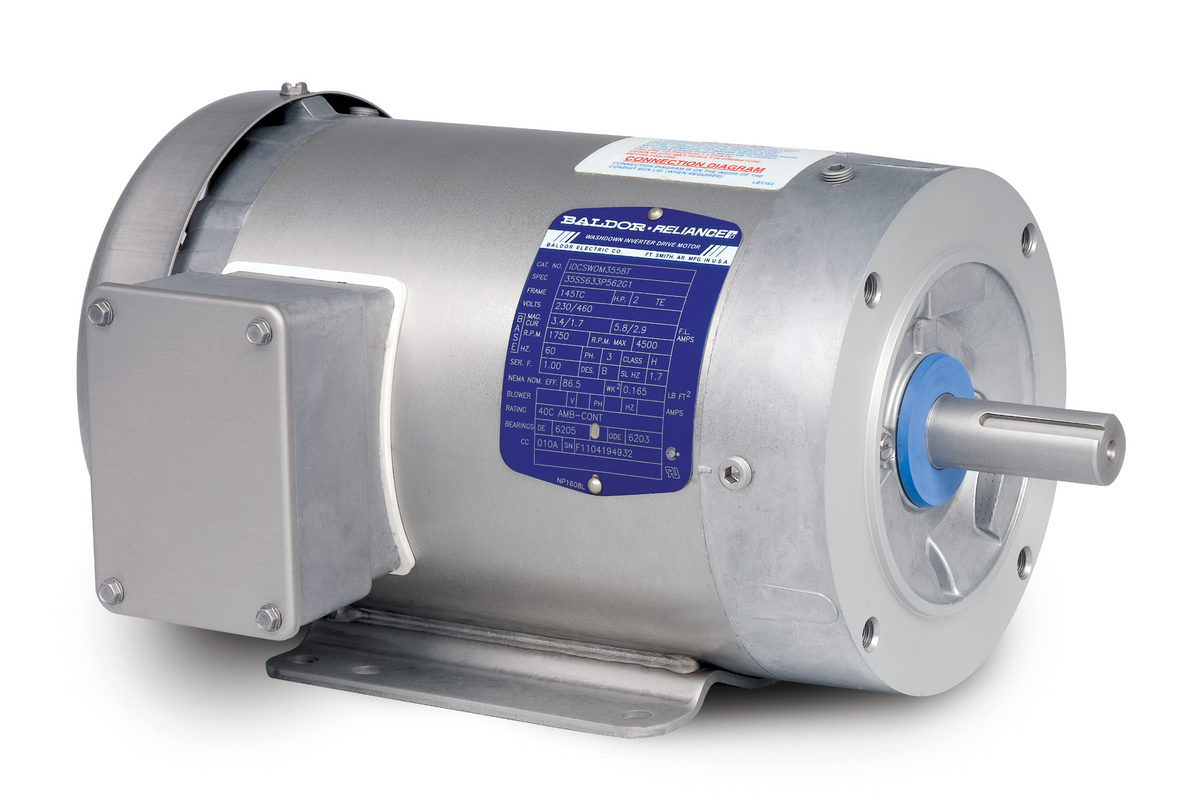

Baldor IDCSWDM3554T 1.5HP 1750RPM 3PH 60HZ 145TC 3528M TEFC
- Brand: Baldor Electric Motors
- PartNumber: IDCSWDM3554T
Attributes
| Key | Value |
|---|
| Amps | 4.2/2.1 |
| Bearings | Sealed |
| Comments | 60 Hz |
| Composition | Stainless Steel |
| Construction | Stainless Steel |
| Country of Origin (subj. | United States |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 88.5% |
| Efficiency % | 88.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Material | Stainless Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 49.00 |
| Family Series | Baldor Motors |
| FL Amps | 4.2/2.1 |
| FL Efficiency | 88.5 |
| Frame | 145TC |
| Frequency | 60 Hz |
| Gross Weight | 50 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Insulation Class | H |
| Inverter Duty | Yes |
| Item Number | IDCSWDM3554T |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 35SS633P802G1 |
| Manufacturer Part Number | IDCSWDM3554T |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, C-Face/Rigid |
| Mounting Type | Foot Mount |
| NEMA Frame | 145TC |
| Net Weight | 50 lbs |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Speeds | 1 |
| Overall Length | 14.17" |
| Part Number | IDCSWDM3554T |
| Phase | 3 |
| Product Type | Washdown Duty, Three Ph. |
| Rotation | Reversible |
| RPM | 1760, 1700 - 1800, 1,76. |
| Service Factor | 1, 1.00 |
| Shaft Diameter | 0.875" |
| Ship Weight | 49 lbs. |
| Speed (RPM) | 1760 |
| Voltage | 230V, 460V, 230/460 |
| Voltage (AC) | 230 VAC |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Purvis | IDCSWDM3554T | 1805.7 | 1 | In Stock | | Baldor-Reliance | | 1805.7 @ 1 |
 | emotorpro.com | IDCSWDM3554T | 1826.29 | 1 | In Stock | | Baldor | 49.0 | 1826.29 @ 1 |
| factorysupplyoutlet.com | EN78QH | 2000.58 | 1 | In Stock | | Baldor-Reliance | | 2000.58 @ 1 |
 | Galco | IDCSWDM3554T-BLDR | 2020.79 | 1 | In Stock | | Baldor | 50.0 | 2020.79 @ 1 |
 | Walker Industrial | IDCSWDM3554T | 2020.79 | 1 | In Stock | | Baldor | | 2020.79 @ 1 |
 | Global Industrial | WBB909652 | 2023.0 | 1 | In Stock | 15 | Baldor-Reliance | | 2023.0 @ 1 |
| motorsandcontrol.com | IDCSWDM3554T | 2104.98 | 1 | In Stock | | Baldor Reliance | 49.0 | 2104.98 @ 1 |
 | cbtcompany.com | IDCSWDM3554T | 2394.64 | 1 | In Stock | | Baldor Reliance | | 2394.64 @ 1 |
| kirbyrisk.com | 1895390 | 2649.64 | 1 | In Stock | | Baldor | | 2649.64 @ 1 |
 | Zoro | G5531798 | 2758.62 | 1 | In Stock | | Baldor-Reliance | | 2758.62 @ 1 |
| motionindustries.com | 02057483 | 2914.86 | 1 | In Stock | | Baldor-Reliance | | 2914.86 @ 1 |
 | pumpproducts.com | IDCSWDM3554T | 3591.5 | 1 | In Stock | | Baldor | | 3591.5 @ 1 |
 | Raptor Supplies | AJ6WBU | 6018.8180715 | 1 | In Stock | | BALDOR MOTOR | | 6018.8180715 @ 1 |
