Cle-Line C20528

mpnC20528
brandname: Cle-Line
manufacturername: Cle-Line

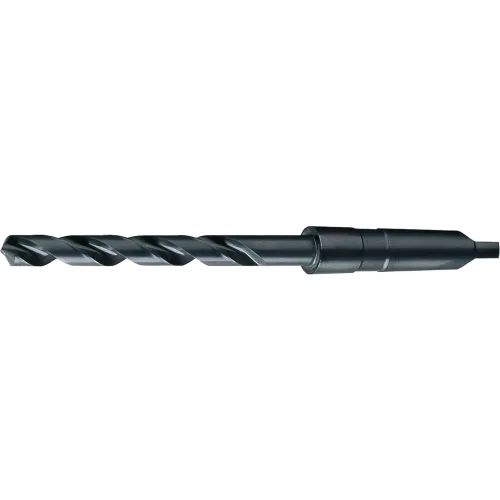

Cle-Line C20528 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.1 Morse Taper Shank, 118-Degree Radial Point, 7/16" Drill Diameter

Brand: Cle-Line
PartNumber: C20528
Model: C20528
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Application	General Purpose Drilling
Catalog Page	N/A
Coolant Fed	Non-Coolant Through
Country of Origin	USA
Cutting Depth	3-7/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.4375
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.4375"
Diameter (Fraction)	7/16"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 ?, 118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	7/16 in
Drill Construction	General Purpose
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Size - Decimal In.	0.4375 in
Drill Size - Fraction	7/16 in
Drill Size System	Fractional
Drill Style	Taper Shank Drill
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	3.8750", 3 7/8 in, 3-7/.
Flute Length (Metric)	98.42mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
Item	Taper Shank Drill Bit
Item?	50AZ37
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	3 7/8 in, 3-7/8 in
Measurement System	Fractional Inch
Mfr. Model?	C20528
Number of Flutes	2
Overall Length	7 1/4 in, 7.2500", 7-1/.
Overall Length (Metric)	184.15mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Primary Material Applic.	Cast Iron; Steel
Primary Material Applic.	K; P
Series	1894
Shank Configuration	#1 Morse Taper
Shank Length	3.3750"
Shank Length (Metric)	85.72mm
Shank Taper Designation	#1 Morse Taper
Shank Type - Machining	Taper
Spiral Direction	Right Hand
Standards	ASME B94.11M
Style	1894
Surface Condition	Steam Oxide
Taper Shank Size	MT1
Through Coolant (Yes/No)	No
Tool Size	7/16"
Type	General Purpose Regular.
UNSPSC	27112801

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G4952958	13.59	1	In Stock	Cle-Line	0.24	13.59 @ 1
Global Industrial	WBB2544223	15.5	1	In Stock	Cle-Line		15.5 @ 1
Megadepot	C20528	15.67	1	In Stock	Cle-Line		15.67 @ 1
heavydutydepot.com	C20528	15.67	7	In Stock	Cle-Line		15.67 @ 7
usmegastore.com	C20528	16.57	1	In Stock	Cle-Line		16.57 @ 1
MRO Supply	6123857	18.52	3	In Stock	Cle-Line		18.52 @ 3
Grainger	50AZ37	22.63	1	In Stock	CLE-LINE		22.63 @ 1
