- mpnC20564
- brandname: Cle-Line
- manufacturername: Cle-Line

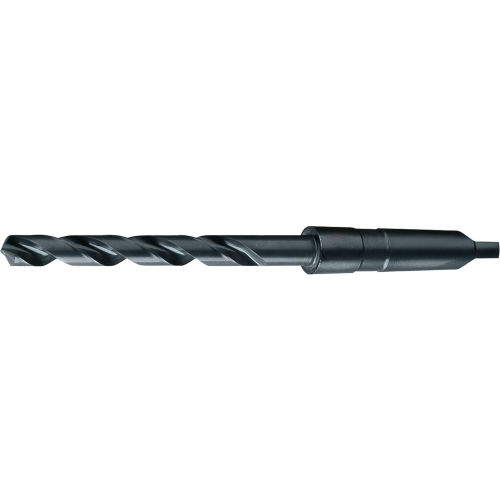

Cle-Line C20564 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.3 Morse Taper Shank, 118-Degree Radial Point, 1" Drill Diameter
- Brand: Cle-line
- PartNumber: C20564
- Model: C20564
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | General Purpose Drilling |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Cutting Depth | 6-3/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 1.0000 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 1.0000" |
| Diameter (Fraction) | 1" |
| Diameter (Metric) | 25.40mm |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 1 in |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.0394 in |
| Drill Size - Fraction | 1 in |
| Drill Size System | Fractional |
| Drill Style | Taper Shank Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 6-3/8 in, 6 3/8 in, 6.3. |
| Flute Length (Metric) | 161.92mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21? to 34? |
| Item | Taper Shank Drill Bit |
| Item? | 50AY61 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 6-3/8 in, 6 3/8 in |
| Measurement System | Fractional Inch |
| Mfr. Model? | C20564 |
| Number of Flutes | 2 |
| Overall Length | 11 in, 11.0000" |
| Overall Length (Metric) | 279.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Cast Iron, Steel, Cast . |
| Primary Material Applic. | K, P, K; P |
| Series | 1894 |
| Shank Configuration | #3 Morse Taper |
| Shank Length | 4.6250" |
| Shank Length (Metric) | 117.47mm |
| Shank Taper Designation | #3 Morse Taper |
| Shank Type - Machining | Taper |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1894 |
| Surface Condition | Steam Oxide |
| Taper Shank Size | MT3 |
| Through Coolant (Yes/No) | No |
| Tool Size | 1" |
| Type | General Purpose Regular. |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C20564 | 40.0 | 1 | In Stock | | Cle-Line | | 40.0 @ 1 |
 | heavydutydepot.com | C20564 | 40.0 | 3 | In Stock | | Cle-Line | | 40.0 @ 3 |
 | Global Industrial | WBB2544558 | 40.95 | 1 | In Stock | | Cle-Line | | 40.95 @ 1 |
 | usmegastore.com | C20564 | 46.48 | 1 | In Stock | | Cle-Line | | 46.48 @ 1 |
 | Zoro | G4953700 | 47.3 | 1 | In Stock | 26 | Cle-Line | 1.55 | 47.3 @ 1 |
| AmazonSC | B00J9M4VV4 | 53.87 | 1 | In Stock | | Cle-line | | 53.87 @ 1 |
 | MRO Supply | 6123879 | 54.17 | 1 | In Stock | | Cle-Line | | 54.17 @ 1 |
| Grainger | 50AY61 | 70.65 | 1 | In Stock | | CLE-LINE | | 70.65 @ 1 |
