Marathon Electric X002

B0042GBKFW

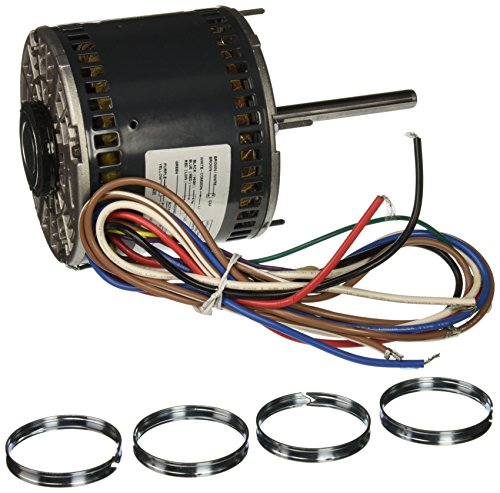

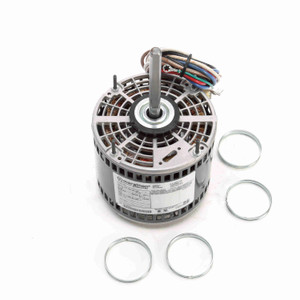

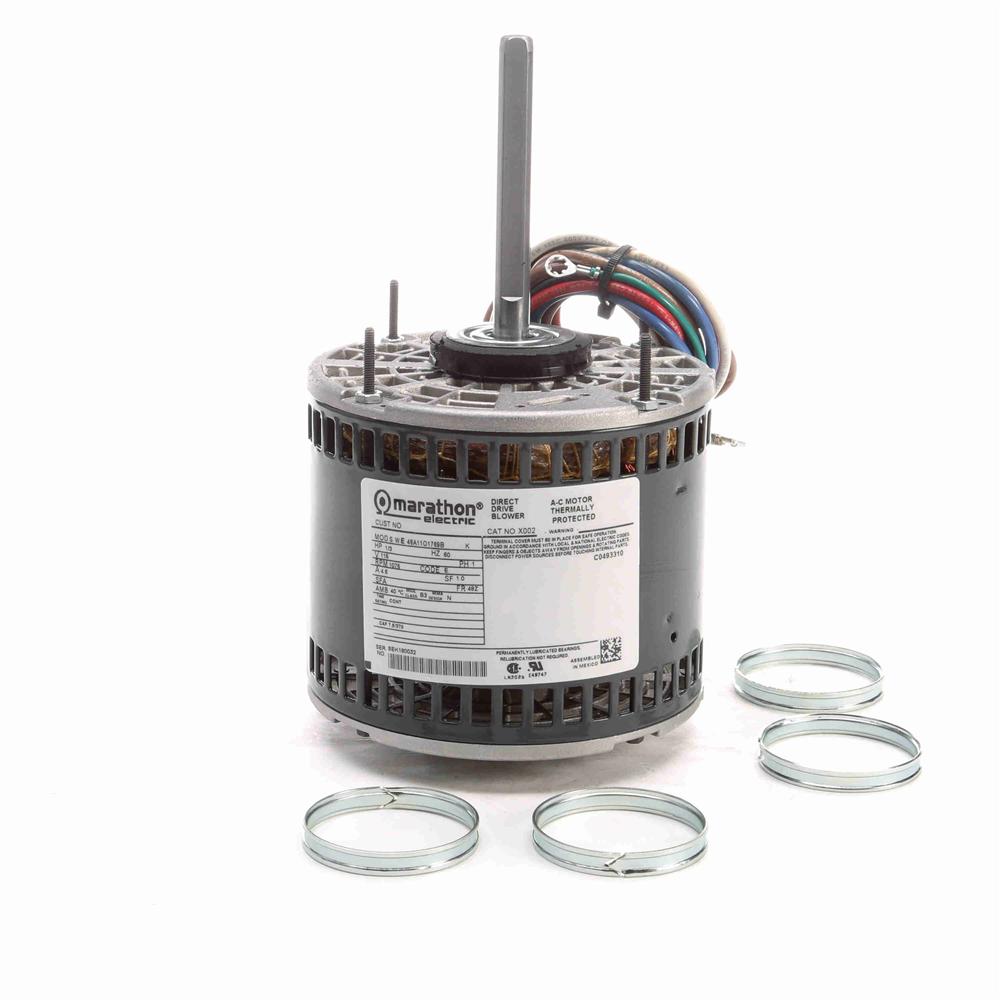

Marathon X002 48Y Frame Direct Drive Blower Motor, Single Phase PSC, Thru-Bolt Mount, Open Air Over, Shaft Dimension 1/2" x 4", 4.6 amp, 1/3 hp, 1075/3 RPM, 115V

Marathon X002 48Y Frame Direct Drive Blower Motor, Single Phase PSC, Thru-Bolt Mount, Open Air Over, Shaft Dimension 1/2" x 4", 4.6 amp, 1/3 hp, 1075/3 RPM, 115Vzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1769
Amps4.6
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension9.75 (in.) (in.)
Capacitor7.5MFD/370VAC Required
Catalog NumberX002
CEN
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.575
Efficiency %57.5 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
Frame Type48Z
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
IP Code10
ItemMotor,1/3Hp,115V,1140Rp.
Item NumberX002
Kilowatts0.25 kW
KVA CodeE
ManufacturerMarathon Electric
Manufacturer Model #048A11O1769
Manufacturer Part Number048A11O1769
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length4.25"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Ring - Extend.
Net Weight14 lbs
Number of Poles6
Number of Speeds3
ODE Bearing TypeBall
Overall Length9.75", 9.75 "
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075, 1,075 RPM
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension4.06 (in.) (in.)
Shaft Length4.06"
Shaft TypeSingle Special Extension
Ship Weight14 lbs.
Speeds3
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage115
Voltage (AC)115 VAC
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.netX002120.891In StockMarathon Motors120.89 @ 1
thumbzoomelectricmotorwholesale.comX002131.01In StockMARATHON131.0 @ 1
thumbzoomapexindustrialautomation.comX002139.11In StockMarathon139.1 @ 1
thumbzoomcshincorporated.comMX002140.71In StockMarathon14.0140.7 @ 1
thumbzoomemotorpro.comX002144.831In StockMarathon14.0144.83 @ 1
thumbzoomgsistore.comX002145.9111Marathon145.91 @ 1
thumbzoomGalcoX002-MARA155.01In StockMarathon Electric14.0155.0 @ 1
thumbzoomNational Supply NetworkB871765158.01In StockMARATHON MOTORS158.0 @ 1
us.rs-online.com72650083160.791In StockMarathon Motors160.79 @ 1
thumbzoomindustrialstores.comX002160.8611Marathon Motors160.86 @ 1
thumbzoomVoomi SupplyX002163.161In StockMARATHON MOTORS163.16 @ 1
thumbzoommidwestapplianceparts.comX002-MT-P168.341In StockMarathon168.34 @ 1
thumbzoomMRO Supply2269560173.291In StockMarathon Electric173.29 @ 1
thumbzoomDreisilkerMA-RBC-X002175.261In StockMarathon175.26 @ 1
thumbzoomGuardianMARSX002193.851In StockMarathon193.85 @ 1
thumbzoomZoroG6460741206.851In Stock20Marathon15.1206.85 @ 1
kirbyrisk.com507227207.521In StockMarathon207.52 @ 1
