Marathon Electric X024

mpnX024
brandname: Marathon Motors
manufacturername: Marathon Motors

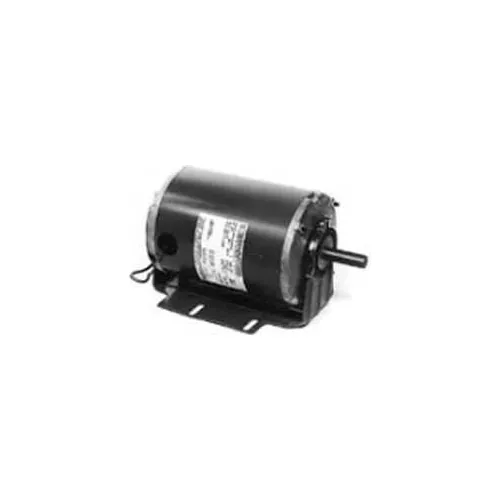

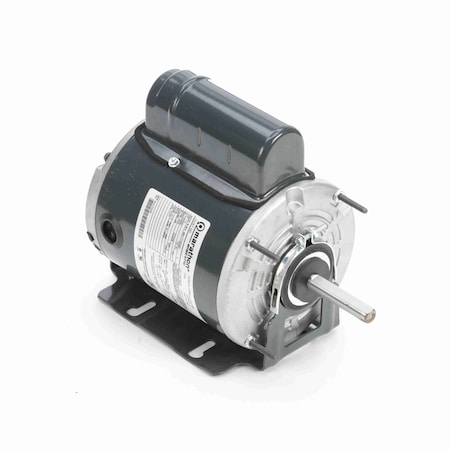

Marathon X024 48YZ Frame Totally Enclosed Marathon-Farm Duty Exhaust Fan Motor 1/4 hp, 1625 RPM, 115/230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Base

Brand: Marathon Electric
PartNumber: X024
Model: MX024
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	048A17T2002
Amps	2.95/1.45, 3.0/1.5
Approvals	CSA, UR
Bearing Type	Ball
Bearings	Ball
Brand	Marathon
C-Dimension	10.09 (in.)
Capacitor	Included
Catalog Number	X024
CE	N
Composition	Rolled Steel
Country of Origin (subj.	Mexico
CSA	Y
Current Rating	3 ; 1.5 A
DE Bearing Type	Ball
DEM Reference	MA#X024
Duty	Continuous
Duty Cycle	Continuous
Efficiency	0.653, 65.3
Efficiency %	65.3 %
Electrical Type	Permanent Split Capacit.
Enclosure	TEAO, Totally Enclosed .
Enclosure Material	Steel
Enclosure Type	TEAO (Totally Enclosed .
Family Series	Marathon Electric Motors
Frame	48Z
Frame Material	Rolled Steel
Frame Type	48Z
Frequency	60, 60 Hz
Gross Weight	0 lbs
Horsepower	1/4 hp
Horsepower Rating	0.25 HP
HP	1/4
Hz	60
Insulation Class	B
Insulation Type	Class B
IP Code	43
Item Number	X024
Kilowatts	0.19 kW
KVA Code	J
Manufacturer	Marathon Electric
Manufacturer Model #	048A17T2002
Manufacturer Part Number	048A17T2002
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Diameter	5-5/8"
Motor Orientation	Horizontal
Motor Shell Length	5.5"
Mounting	Base/Stud
Mounting Orientation	Horizontal
Mounting Type	Resilient Base - Extend.
NEMA Frame	48Z
Net Weight	19 lbs
Nominal Voltage	120 VAC, 240 VAC
Number of Poles	4
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	10.09 ", 10.09"
Phase	1, 1 Phase
Product Category	Low Voltage NEMA Farm /.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible, Selective C.
RPM	1,625 RPM, 1625 RPM, 16.
RPM (Nameplate)	1625
RPM (Number of Poles)	4 (1201 RPM to 1800 RPM)
Service Factor	1
Shaft Diameter	0.5 ", 1/2 (in.), 1/2"
Shaft Extension	2.56 (in.)
Shaft Length	2.56"
Shaft Type	Single Special Extension
Ship Weight	18 lbs.
Special Features	Service Factor - 1
Speeds	1
Standards	UL Recognized
Supply Voltage	115/230 VAC
Thermal Protection	Automatic
Type	Permanent Split Capacit.
Type of Overload Protec.	Automatic Lock Rotor On.
UL	Recognized
UPC Code	722856027993
Voltage	115-230
Voltage (AC)	115 VAC, 230 VAC
Volts	115, 230, 115/230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
electricmotorwholesale.com	X024	143.0	1	In Stock		MARATHON		143.0 @ 1
emotorpro.com	X024	187.49	1	In Stock		Marathon	18.0	187.49 @ 1
Galco	X024-MARA	190.62	1	In Stock		Marathon Electric	19.0	190.62 @ 1
MRO Supply	2270166	191.63	1	In Stock		Marathon Electric		191.63 @ 1
apexindustrialautomation.com	X024	193.16	1	165		Marathon		193.16 @ 1
midwestapplianceparts.com	X024-MT-P	223.11	1	In Stock		Marathon		223.11 @ 1
us.rs-online.com	72238364	225.95	1	1		Marathon Motors		225.95 @ 1
National Supply Network	B868826	227.94	1	In Stock		MARATHON MOTORS		227.94 @ 1
Global Industrial	WBB868826	229.95	1	In Stock		Marathon Motors		229.95 @ 1
Dreisilker	MA-RBC-X024	234.02	1	In Stock		Marathon		234.02 @ 1
industrialstores.com	X024	244.27	1	In Stock	10	Marathon Motors		244.27 @ 1
Zoro	G006629400	247.64	1	In Stock	10	Marathon		247.64 @ 1
ptacsolutions.com	X024	273.12	1	In Stock		Marathon Motors		273.12 @ 1
