Marathon Electric X025

B0042GHE48

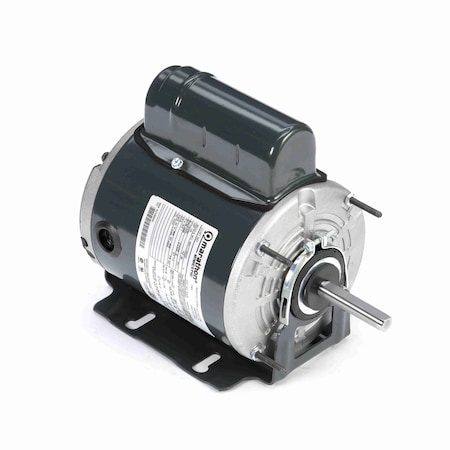

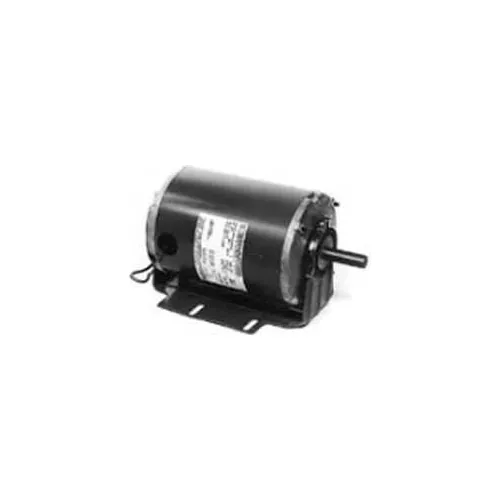

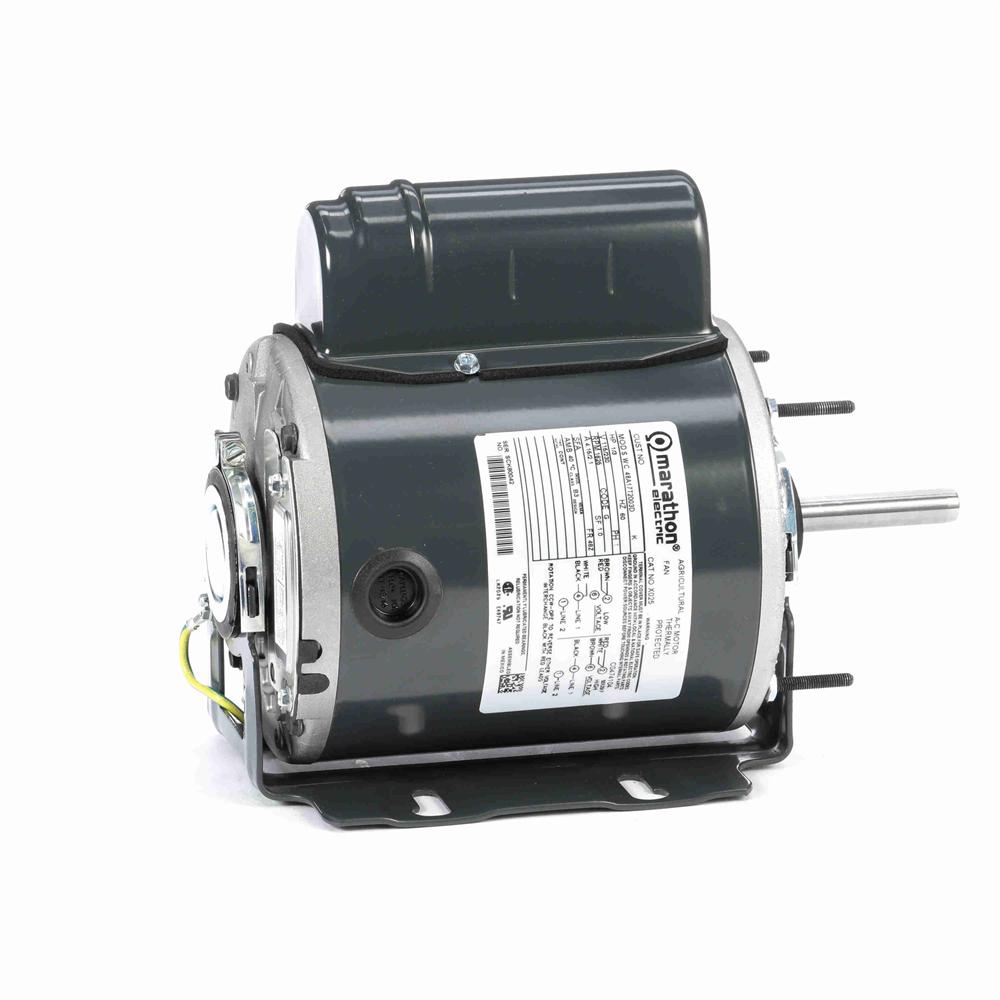

Marathon X025 48YZ Frame Totally Enclosed Farm Duty Exhaust Fan Motor 1/3 hp, 1625 RPM, 115/230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Base

Marathon X025 48YZ Frame Totally Enclosed Farm Duty Exhaust Fan Motor 1/3 hp, 1625 RPM, 115/230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.048A17T2003
Amps4.15/2.1, 4.2/2.1
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.09 (in.)
CapacitorIncluded
Catalog NumberX025
CEN
CompositionRolled Steel
Country of Origin (subj.United States
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X025
DutyContinuous
Duty CycleContinuous
Efficiency0.685
Efficiency %68.5 %
Electrical TypePermanent Split Capacit.
EnclosureTEAO, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEAO (Totally Enclosed .
enclosure type:TEAO (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:48Z
Frame Type48Z
Frequency60, 60 Hz
frequency rating:60 Hz
full load current:4.40 / 2.20 A
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
IP Code43
Item NumberX025
Kilowatts0.25 kW
KVA CodeG
ManufacturerMarathon Electric
Manufacturer Model #048A17T2003
Manufacturer Part Number048A17T2003
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Aeration Fan Motor
Motor Diameter5-5/8"
motor horsepower:0.33 hp, 1/3 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length5.5"
motor supply voltage:115/230 V
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
mounting type:Resilient Extended Thru.
NEMA Frame48Z
Net Weight20 lbs
Nominal Voltage120 VAC, 240 VAC
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length10.09 ", 10.09"
overall length (c-dimen.10.09 in
Phase1
Product CategoryLow Voltage NEMA Farm /.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1,625 RPM, 1625
RPM (Nameplate)1625
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1
service factor:1.00
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
shaft diameter:0.50 in
Shaft Extension2.56 (in.)
Shaft Length2.56"
Shaft TypeSingle Special Extension
Ship Weight18 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1800 rpm
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage115-230
Voltage (AC)115 VAC, 230 VAC
Volts115, 230, 115/230
weight:18 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX025156.01In StockMARATHON156.0 @ 1
thumbzoommotionindustries.com04488816200.211In StockMarathon Electric200.21 @ 1
thumbzoomGalcoX025-MARA212.041In StockMarathon Electric20.0212.04 @ 1
thumbzoomMRO Supply2270167213.161In StockMarathon Electric213.16 @ 1
thumbzoomemotorpro.comX025237.751In StockMarathon18.0237.75 @ 1
us.rs-online.com72650307238.841In StockMarathon Motors238.84 @ 1
thumbzoomNational Supply NetworkB868841256.941In StockMARATHON MOTORS256.94 @ 1
thumbzoomGlobal IndustrialWBB868841257.951In StockMarathon Motors257.95 @ 1
thumbzoomDreisilkerMA-RBC-X025260.321In StockMarathon260.32 @ 1
thumbzoomcbtcompany.comX025272.911In StockMarathon Electric Motors272.91 @ 1
industrialmotors.comX025305.4138MARATHON ELECTRIC305.4 @ 1
thumbzoomZoroG502203722366.671In StockMarathon366.67 @ 1
