Omron Z-15GD

B008L5S260

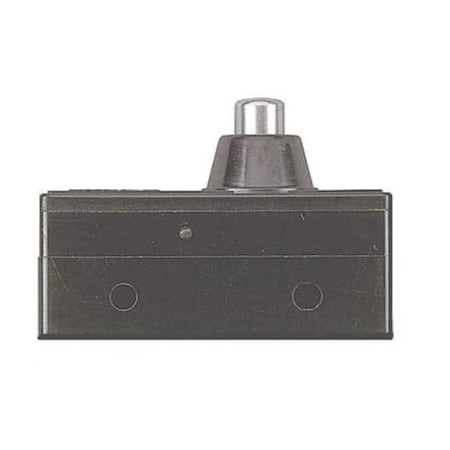

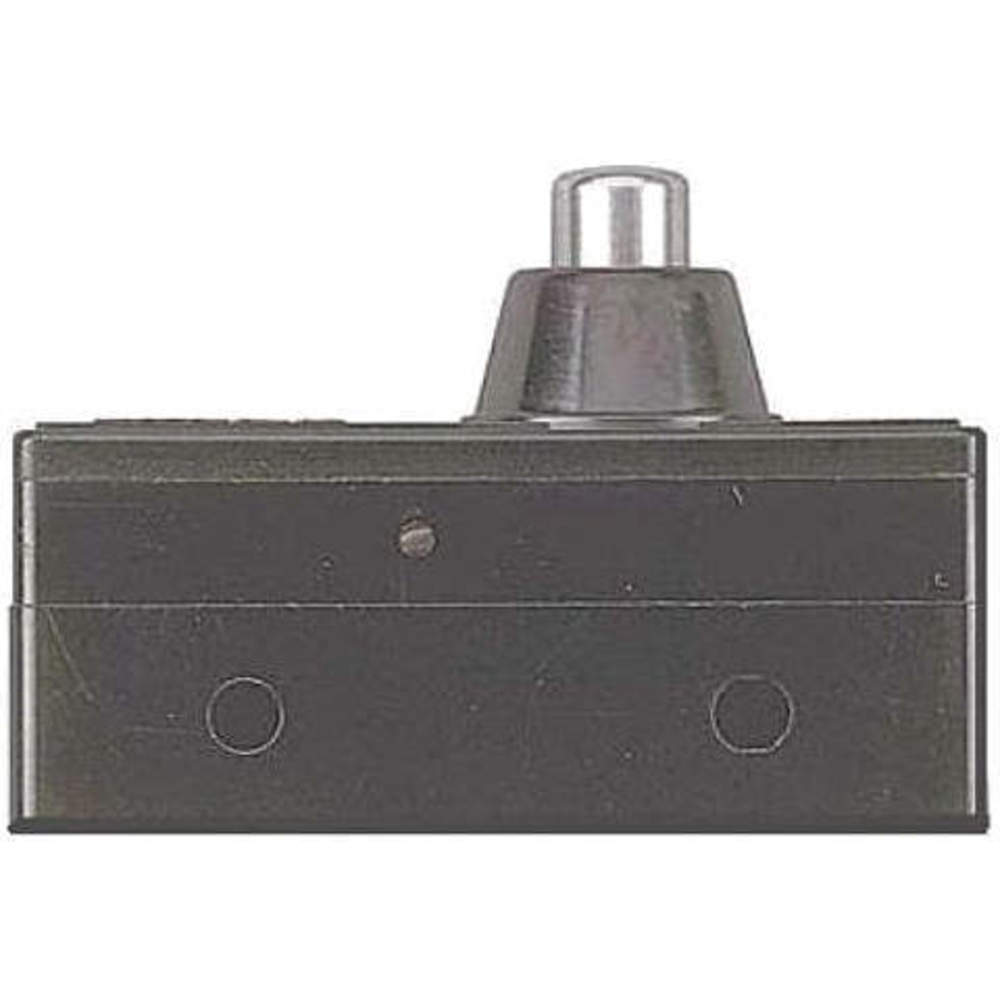

Omron Z-15GD General Purpose Basic Switch, Short Spring Plunger, Solder Terminal, 0.5mm Contact Gap, 15A Rated Current

Omron Z-15GD General Purpose Basic Switch, Short Spring Plunger, Solder Terminal, 0.5mm Contact Gap, 15A Rated Currentzoom

Attributes

Key Value
AC Contact Rating - Sna.15 A @ 480 V, 15 A @ 48.
Actuator Length0.27"
Actuator TypeRound (Pin Plunger), Pl.
Actuator Type - Snap Ac.Plunger, Short
Alternate Mfr Part Numb.Z15GD
Basic Actuator Type - S.Plunger
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating15 A
Current Rating (Amps)15A (AC), 6A (DC)
Current typeAC/DC
DC Contact Rating - Sna.15 A @ 14 V, 15 A @ 14V
Depth0.69"
Depth - Snap Action Swi.0.69 in
Differential Travel0.002" (0.05mm), 0.002 .
Electrical Connection -.Solder Lug
Electrical Life500,000 Cycles
Features-
Head TypePlunger
Height0.84"
Height - Snap Action Sw.0.84 in
Housing MaterialPhenolic
Ingress ProtectionIP00
ItemSnap Switch, Industrial.
Length1.94"
Lever Actuator Length -.Not Applicable
Max. Pretravel0.016 in
Mechanical Life20,000,000 Cycles
MfrOmron Automation and Sa.
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting TypeChassis Mount
Number of Circuits - Sn.1
Operating Force8.83 to 12.36 oz, 250 ~.
Operating Position0.846" (21.5mm)
Operating Temp. Range-13 Degrees to 176 Deg.
Operating Temperature-25?C ~ 80?C
Over Travel0.063 in
Overtravel0.062" (1.6mm)
Part StatusActive
Pretravel0.015" (0.4mm)
Release Force114gf, 4.02 oz
SeriesZ Series, Z
Snap Action Switch TypeIndustrial Snap Action .
StandardsUL/CSA/EN 61058-1, UL; .
Switch FunctionOn-Mom
Termination StyleSolder Lug
Voltage Rating125 V, 125/250VAC
Voltage Rating - AC125 V
Voltage Rating - DC30 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.94 in
