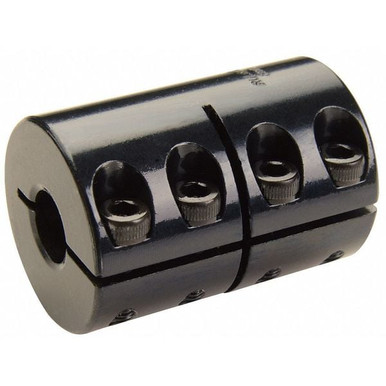

Ruland Manufacturing Co Inc CLX-12-10-F - Clamp-On Rigid Coupling - CLX Series, Black Oxide, 1215 Lead-Free Steel, Bore - Side 1: .7500 in, Bore - Side 2: .6250 in

Ruland Manufacturing Co Inc CLX-12-10-F - Clamp-On Rigid Coupling - CLX Series, Black Oxide, 1215 Lead-Free Steel, Bore - Side 1: .7500 in, Bore - Side 2: .6250 inzoom

Attributes

Key Value
ApplicationFor Applications where .
B1 Max Shaft Penetration1.125 in
B2 Max Shaft Penetration1.125 in
Bore (B1)0.7500 in
Bore Dia.5/8 in x 3/4 in
Bore Tolerance+0.0020 in / +0.0005 in
BrandRULAND
Clearance Dia.1.842 in
Clearance Dia. (In.)1.842
Clearance Diameter (C) .1.842 in
ColorBlack Oxide
Country of OriginUSA
Country of Origin (subj.United States
Current Stock9
DesignFour Vibration Resistan.
FinishBlack Oxide
Finish SpecificationHot Process Black Oxide.
Forged Clamp Screw1/4-28
Full Bearing Support Re.No
Hex Wrench Size3/16 in
International ShippingNo
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Lead TimeExpected to ship in 1-2.
Length (L)2 1/4 in
Machined FromBar Stock
ManufacturerRuland Manufacturing
MaterialBlack Oxide 1215 Lead F.
Material - Couplings1215 Lead Free Steel
Material Specification1215 Carbon Steel Bar
Max. Torque3,200 in-lb
Max. Torque (In.-Lbs.)3200
Maximum Speed4,000 RPM
Moment of Inertia0.2844 lb-in
MpnCLX-12-10-F
Note 1Performance ratings are.
Number of Screws4 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)1 1/2 in
Outside Dia.1 1/2 in
Overall Length2 1/4 in
Prop 65Warning: This product c.
ProvidesExtra Holding Power for.
Rated Torque3,200 lb-in
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw Location (R)0.545 in
Screw MaterialAlloy Steel with
Screw Size1/4"-28
Screw Size (In.)1/4-28
Seating Torque170 lb-in
Shaft Locking Type - Co.1 Piece Clamp
SKUZO-G0703945
Small Bore (B2)0.6250 in
StandardsREACH Compliant, RoHS2 .
SubCategoryPower Transmission
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeOne Piece Clamp Type, W.
UNSPC31163009
UPC634529003770
UPC Code63452900377
Weight (lbs)0.827600
With Keyway / Without K.Without Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com7219847660.671In StockRuland Manufacturing60.67 @ 1
thumbzoomRulandCLX-12-10-F65.921In StockRuland0.827665.92 @ 1
AmazonTPB0060LWJA268.851In Stock2Ruland Manufacturing68.85 @ 1
thumbzoomsimsupply.comZO-G070394576.6719RULAND76.67 @ 1
thumbzoomsustainablesupply.comC167157684.491In StockRuland Manufacturing0.884.49 @ 1
motionindustries.com0233664592.751In StockRuland Manufacturing Co Inc92.75 @ 1
thumbzoomZoroG070394593.791In StockRuland0.893.79 @ 1
thumbzoomRaptor SuppliesAB8ZFH124.64039251In StockRULAND MANUFACTURING124.6403925 @ 1
