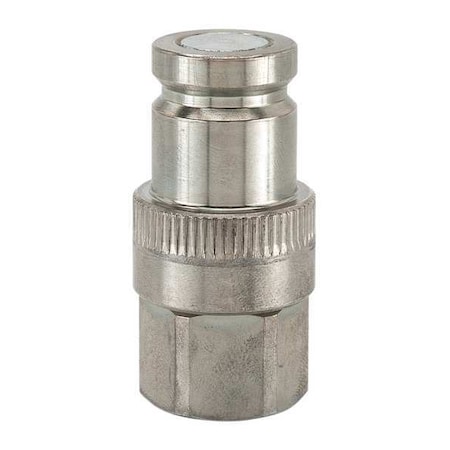

Snap-Tite 71-3N4-4FV

mpn71-3N4-4FV
brandname: SNAP-TITE
manufacturername: SNAP-TITE

Quick Connect,Plug,1/4",1/4"-18

Quick Connect,Plug,1/4",1/4"-18

zoom

Brand: Snap-Tite
PartNumber: 71-3N4-4FV
Model: 71-3N4-4FV
PackageQuantity: 1
Binding: Misc.
Manufacturer: Snap-Tite
Label: Snap-Tite

Attributes

Key	Value
Body Material	Steel
Connection Type	NPTF
Coupler Body Material	Steel
Coupler Body Size	1/4"
Coupler Connection Type	NPFT
Coupler Finish	Zinc Plated
Coupler Flow Rate	5.0 gpm
Coupler Interchange Type	71
Coupler Thread Size	1/4"-18
Coupling Locking Type	Push-to-Connect
Coupling Size	1/4 in
Item	Hydraulic Quick Connect.
Locking Mechanism	Ball
Max. Outside Dia.	57/64 in
Max. Pressure	10,000 psi
Operating Temp. Range	-20 Degrees to 375 Deg.
Overall Length	1 53/64 in
Quick Coupler Type	Hydraulic Coupler Nipple
Seal Material	Fluorocarbon
Series	71
Shut Off	Yes
Sleeve Material	Steel
Thread Size	1/4"-18
Valve Design	Flush Face
