TE Connectivity 5-534206-1

B08WJ46M5Y

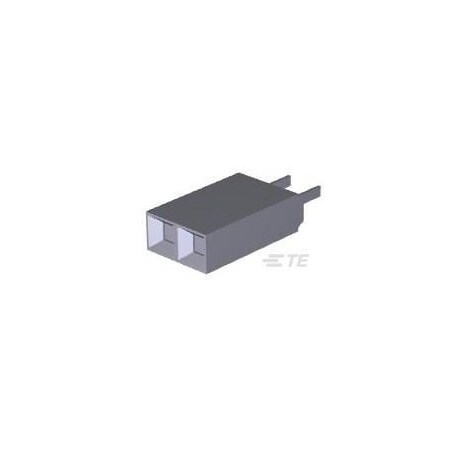

Conn Socket Strip SKT 2 POS Solder ST Top Entry Thru-Hole Tube

Conn Socket Strip SKT 2 POS Solder ST Top Entry Thru-Hole Tubezoom

Attributes

Key Value
Alternate Mfr Part Numb.5-534206-1
ApplicationsPolyester, Glass Filled.
Base Product Number534206
CategoryConnectors, Interconnec.
Connector StyleReceptacle
Connector TypeConnector Assembly, Rec.
Contact ConfigurationShort Point
Contact Finish - MatingGold, 30.0?in (0.76?m)
Contact Finish - PostTin, -
Contact Finish Thicknes.Black, 30.0?in (0.76?m)
Contact Finish Thicknes.150.0?in (3.81?m), 2
Contact Length - Post0.115" (2.92mm), -65?C .
Contact Material150.0?in (3.81?m), Phos.
Contact Resistance12 MOhms
Contact ShapeSquare, Phosphor Bronze
Contact TypeFemale Socket, Board to.
Country of Origin (subj.China
Current Rating (Amps)-, 2A
DescriptionCONN RCPT 2POS GOLD PCB
Detailed Description2 Position Receptacle C.
Digi-Key Part NumberA32932-ND
Family NameAMPMODU Interconnect Sy.
Fastening TypePush-Pull, Gold
Features-, 2A
For Use WithMates with Headers
Height5.03 mm[.198 in]
Ingress Protection-
Insulation ColorBlack, 0.320"" (8.13mm)
Insulation Height0.320" (8.13mm), 0.115".
Insulation MaterialPolyester, Glass Filled.
Insulation Resistance5000 MegaOhms
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5-534206-1
Manufacturer Standard L.16 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0, Tin
MfrTE Connectivity AMP Con.
Mounting TypeSolder, Through Hole
Number of Contacts2
Number of PositionsAll, 2
Number of Positions Loa.All, -
Number of Rows2
Operating TemperatureUL94 V-0, -65?C ~ 125?C
PackageActive, Tube
Part StatusReceptacle
Pitch2.54 mm (0.100")
Pitch - Mating0.100"" (2.54mm), -
Primary TypeBoard Mount
Product StatusActive
Product TypeConnector
ProfileStandard
Row Spacing - MatingThrough Hole, 0.100" (2.
SeriesTube, AMPMODU Mod II Se.
Style2, Board to Board or Ca.
TerminationSolder, Push-Pull
TypeReceptacle
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com5-534206-10.62422012811TE Connectivity0.624 @ 220
WaldomTE CONNECTIVITY AMP BRAND 5-534206-10.7122039287TE CONNECTIVITY/AMP BRAND0.71 @ 220
HotendaH14179690.831220TE Connectivity AMP Connectors0.83 @ 220
thumbzoomZoroG2009663011.032200220Te Connectivity1.03 @ 2200
thumbzoomNewark16M31621.2111707AMP - TE CONNECTIVITY1.21 @ 220
thumbzoomDigi-Key10930031.39692121626TE Connectivity AMP Connectors1.39692 @ 220
us.rs-online.com703465901.87220220TE Connectivity1.87 @ 220
RS Delivers797-3214P2.011212145TE Connectivity2.0112 @ 220
AmazonTPB00DJUH4UW5.9912202TE CONNECTIVITY / AMP5.99 @ 220
