Scotchlok MH10-8FLX

mpnMH10-8FLX
brandname: 3-M
manufacturername: 3-M

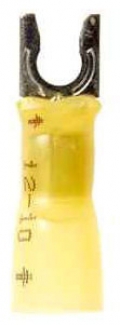

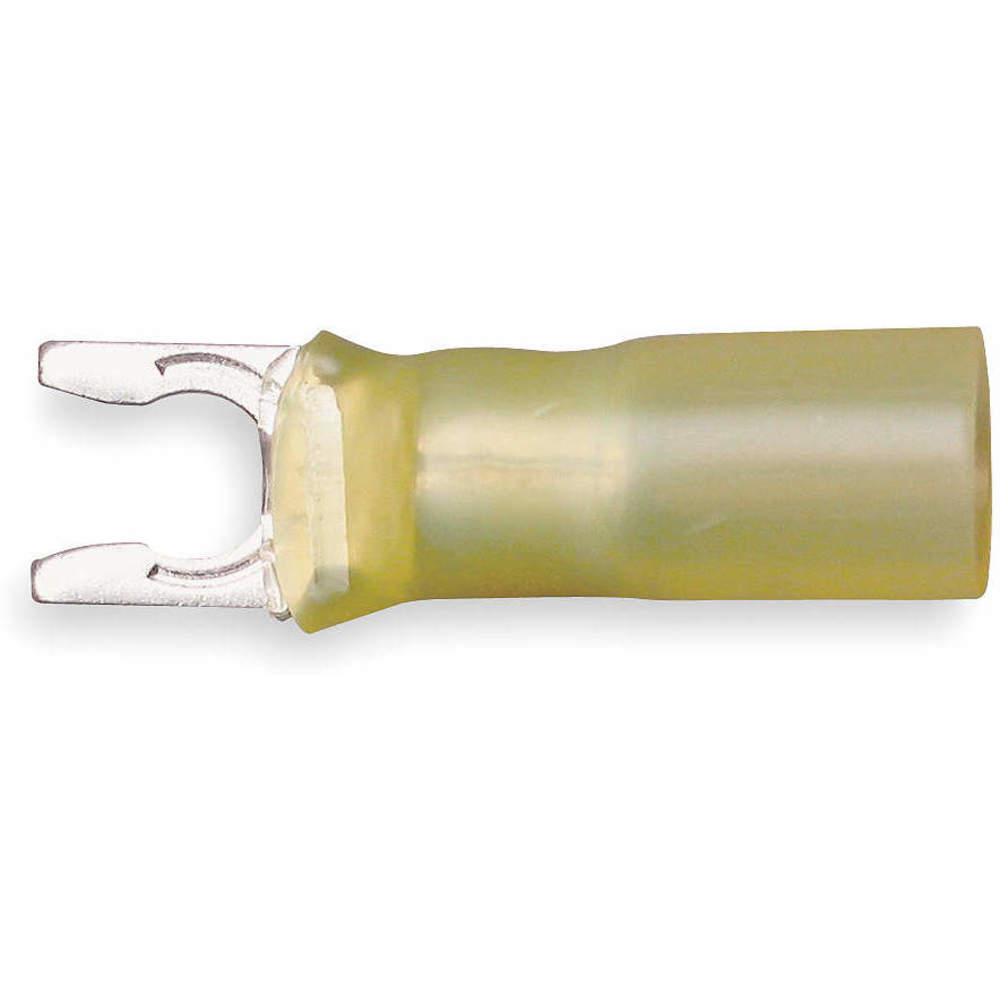

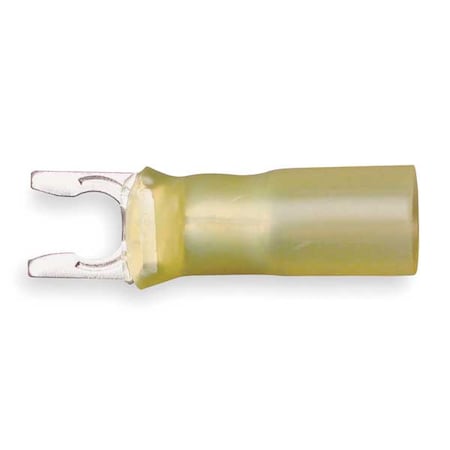

Scotchlok Locking Fork Heatshrink, MH10-8FLX (Pack of 25)

Scotchlok Locking Fork Heatshrink, MH10-8FLX (Pack of 25)

zoom

Brand: Scotchlok
PartNumber: MH10-8FLX
Color: Yellow
PackageQuantity: 25
Binding: Misc.
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MH10-8FLX
Barrel Length Type	Brazed
Brand	3M

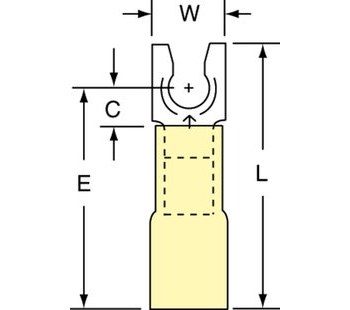

Clearance	0.16 in
Color	Yellow
Connection Material	Copper
Connection Type	Crimp
Country of Origin (subj.	United States
Fastening Mechanism	Locking
Fork Width	0.32 in
Inside Diameter	0.135 in
Insulation Color	Yellow
Insulation Length	0.8 in
Insulation Material	Nylon
Insulation Type	Heat Shrink
Item	Fork Terminal
Material	ETP Copper, Polyolefin
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Wire Size	10 AWG
Minimum Conductor Leg D.	12 AWG
Minimum Wire Size	12 AWG
Overall Length	1.0 in, 1 in
Overall Width	0.32 in
Package Quantity	25 per bottle, 125 per .
Seam	Brazed
Size	8
Standards	CSA Certified, UL Listed
Stud Size	#8
Terminal Connection	Crimp
Terminal Type	Locking
Tongue Width - Wire Con.	0.3 in
Trade Name	Scotchlok
Type	Fork, Heat Shrink
Wire Range	12 to 10 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	turtle.com	MMM MH10-8FLX	1.6	1	25		3M		1.6 @ 25
	Platt.com	0860856	2.75	1	25		3M		2.75 @ 25
	rshughes.com	051128-58889	32.5	25	25		3M		32.5 @ 25
	gordonelectricsupply.com	MH10-8FLX	33.65	1	25	455	3-M		33.65 @ 25
	Zoro	G3423095	40.0	1	123		3M	0.1	40.0 @ 25
	Carlton Bates Company	05112858889	41.0	1	25		3M		41.0 @ 25
	Newark	10M9522	49.03	1	25		3M		49.03 @ 25
	Raptor Supplies	AC9XCA	63.2531835	1	25		3M		63.2531835 @ 25
