B00LQR009M

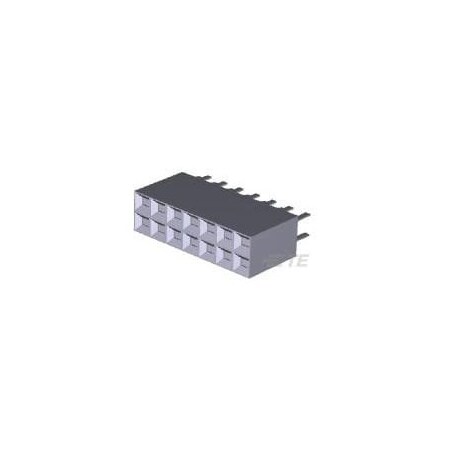

TE CONNECTIVITY / AMP 5-534206-7 BOARD-BOARD CONNECTOR RECEPTACLE, 14WAY, 2ROW (10 pieces)

TE CONNECTIVITY / AMP 5-534206-7 BOARD-BOARD CONNECTOR RECEPTACLE, 14WAY, 2ROW (10 pieces)zoom

Attributes

Key Value
Alternate Mfr Part Numb.5-534206-7
Applications-
Base Product Number534206
CategoryConnectors, Interconnec.
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Length - Post0.115" (2.92mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Country of Origin (subj.China
Current Rating (Amps)2A
DescriptionCONN RCPT 14POS 0.1 GOL.
Detailed Description14 Position Receptacle .
Digi-Key Part NumberA32938-ND
Family NameAMPMODU Interconnect Sy.
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.320" (8.13mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5-534206-7
Manufacturer Standard L.16 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts14
Number of Positions14
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 125?C
PackageTube
Pitch2.54 mm (0.100")
Pitch - Mating0.100" (2.54mm)
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesAMPMODU Mod II Series, .
StyleBoard to Board or Cable
TerminationSolder
TypeReceptacle
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers863-82742.5056110TE Connectivity2.5056 @ 10
thumbzoomNewark67K24922.76192010AMP - TE CONNECTIVITY2.76 @ 1000
Onlinecomponents.com5-534206-72.88322797TE Connectivity / AMP2.88 @ 32
HotendaH14182233.07110TE Connectivity AMP Connectors3.07 @ 10
us.rs-online.com700871423.71192010TE Connectivity3.71 @ 1920
thumbzoomZoroG6010435264.543210Te Connectivity4.54 @ 32
thumbzoomDigi-Key10930094.716113770TE Connectivity AMP Connectors4.716 @ 10
AmazonSCB010IIGPQG19.23110TE Connectivity19.23 @ 10
