Baldor-Reliance EJMM3714T

B08KTKFL7D

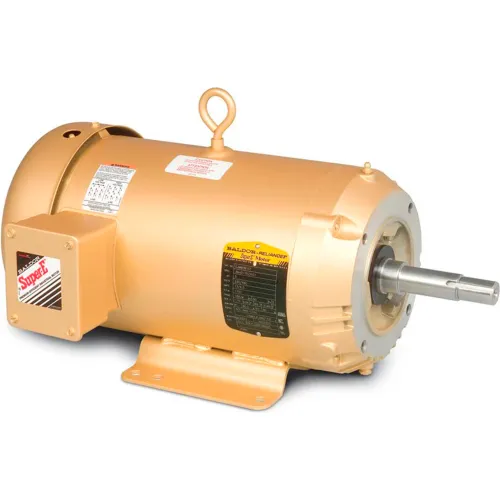

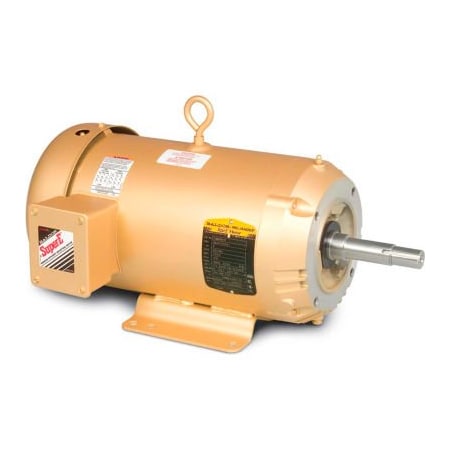

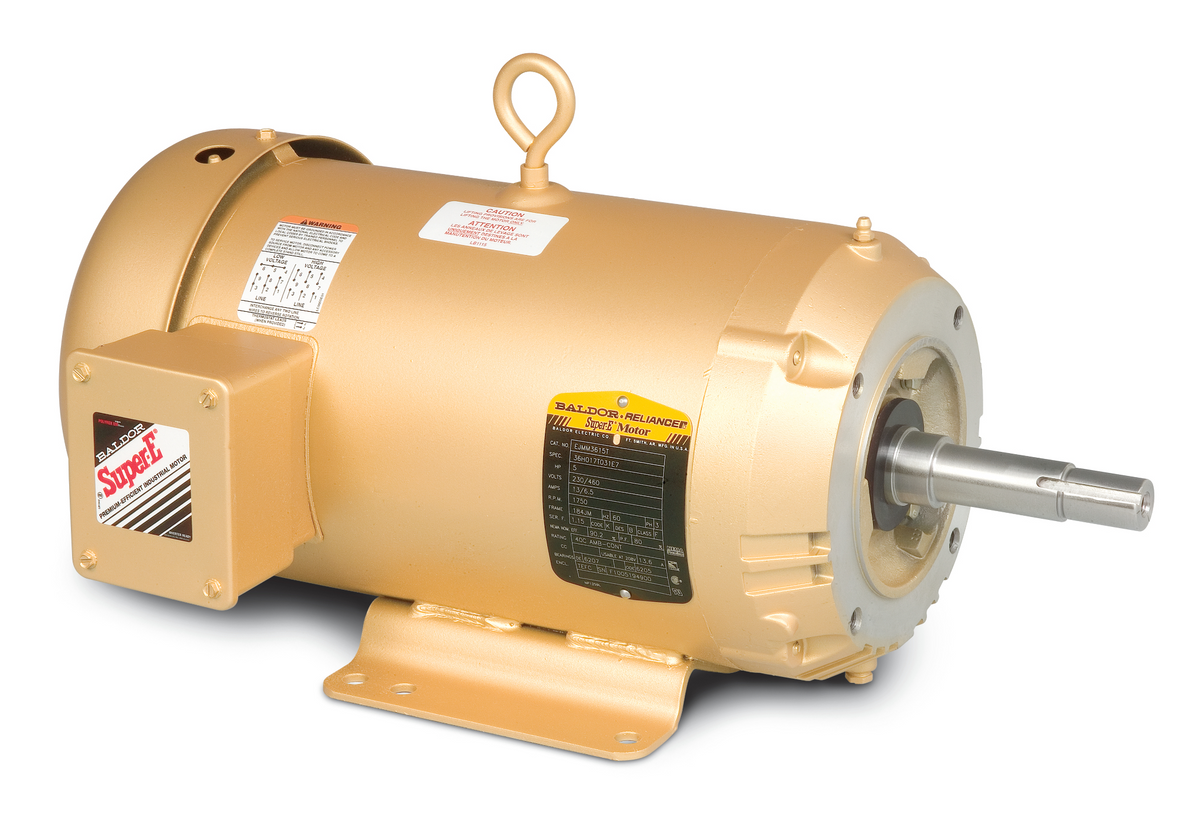

Baldor-Reliance EJMM3714T Close Coupled Pump Motor - 3 ph, 10 hp, 1800 rpm, 208-230/460 V, 215JM Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz

Baldor-Reliance EJMM3714T Close Coupled Pump Motor - 3 ph, 10 hp, 1800 rpm, 208-230/460 V, 215JM Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hzzoom

Attributes

Key Value
Amps12.5/25/27
Bearing TypeBall
BearingsBall
ConstructionCast Iron
Country of Origin (subj.United States
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency91.7%
Efficiency %91.7 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight165.00
Family SeriesBaldor Motors, JMM Seri.
FL Amps25.4-24/12
FL Efficiency91.7
Frame215JM
Gross Weight165 lbs
Hertz60
Horsepower10 hp
HP10
Hz60
Insulation ClassF
Inverter DutyYes, No
Item NumberEJMM3714T
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #37M031L865G1
Manufacturer Part NumberEJMM3714T
Maximum Ambient Tempera.40? C
MountingFoot Mount, C-Face/Rigid
Mounting TypeC-Face Footed
NEMA Frame215JM
Net Weight165 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Poles4
Number of Speeds1
Overall Length22.39", 22.44 "
Part NumberEJMM3714T
Phase3
Product SeriesJMM
Product TypePump, Three Phase
RotationReversible
RPM1,800 RPM, 1770
Service Factor1.15
Shaft Diameter0.875"
Ship Weight165 lbs.
Speed (RPM)1770
Voltage208V, 230V, 460V, 230/4.
Voltage (AC)208-230 VAC, 460 VAC
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comEJMM3714T1317.891In StockBaldor1317.89 @ 1
thumbzoomMRO Supply242381663.061In StockBaldor1663.06 @ 1
thumbzoommidwestapplianceparts.comEJMM3714T-BM-P1741.081In StockBaldor1741.08 @ 1
thumbzoomemotorpro.comEJMM3714T1753.491In StockBaldor165.01753.49 @ 1
thumbzoomGalcoEJMM3714T-BLDR1927.391In StockBaldor165.01927.39 @ 1
us.rs-online.com730329421931.431In StockBaldor-Reliance1931.43 @ 1
factorysupplyoutlet.comOP44WQ1935.391In StockBaldor-Reliance1935.39 @ 1
thumbzoomgalesburgelectric.comEJMM3714T1940.231In StockBaldor1940.23 @ 1
thumbzoomWalker IndustrialEJMM3714T1940.241In StockBaldor1940.24 @ 1
motorsandcontrol.comEJMM3714T2021.081In StockBaldor Reliance165.02021.08 @ 1
thumbzoomPurvisEJMM3714T2046.11In StockBaldor-Reliance2046.1 @ 1
thumbzoomGlobal IndustrialWBB3902142079.01In StockBaldor-Reliance2079.0 @ 1
thumbzoompumpproducts.comEJMM3714T2295.331In StockBaldor2295.33 @ 1
kirbyrisk.com22449522544.031In StockBaldor2544.03 @ 1
thumbzoomZoroG7049498793802.711In StockBaldor-Reliance3802.71 @ 1
thumbzoomRaptor SuppliesAJ6TBU5778.8895061In StockBALDOR MOTOR5778.889506 @ 1
motionindustries.com0271985514013.751In StockBaldor-Reliance14013.75 @ 1
