AO Smith FE1076

B0092LL3FE

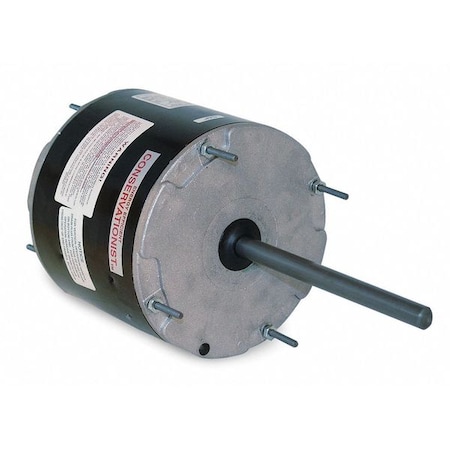

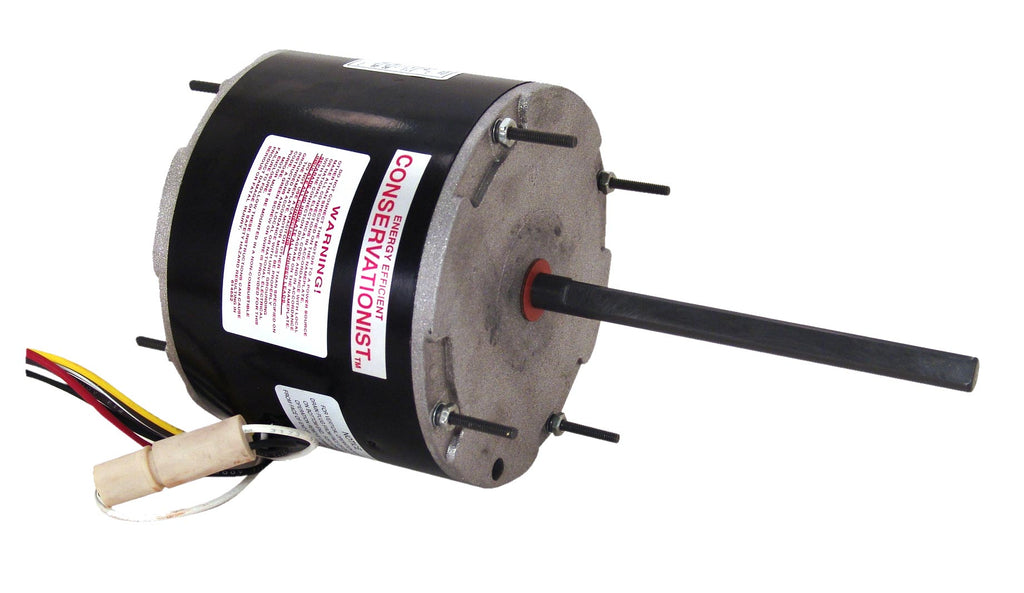

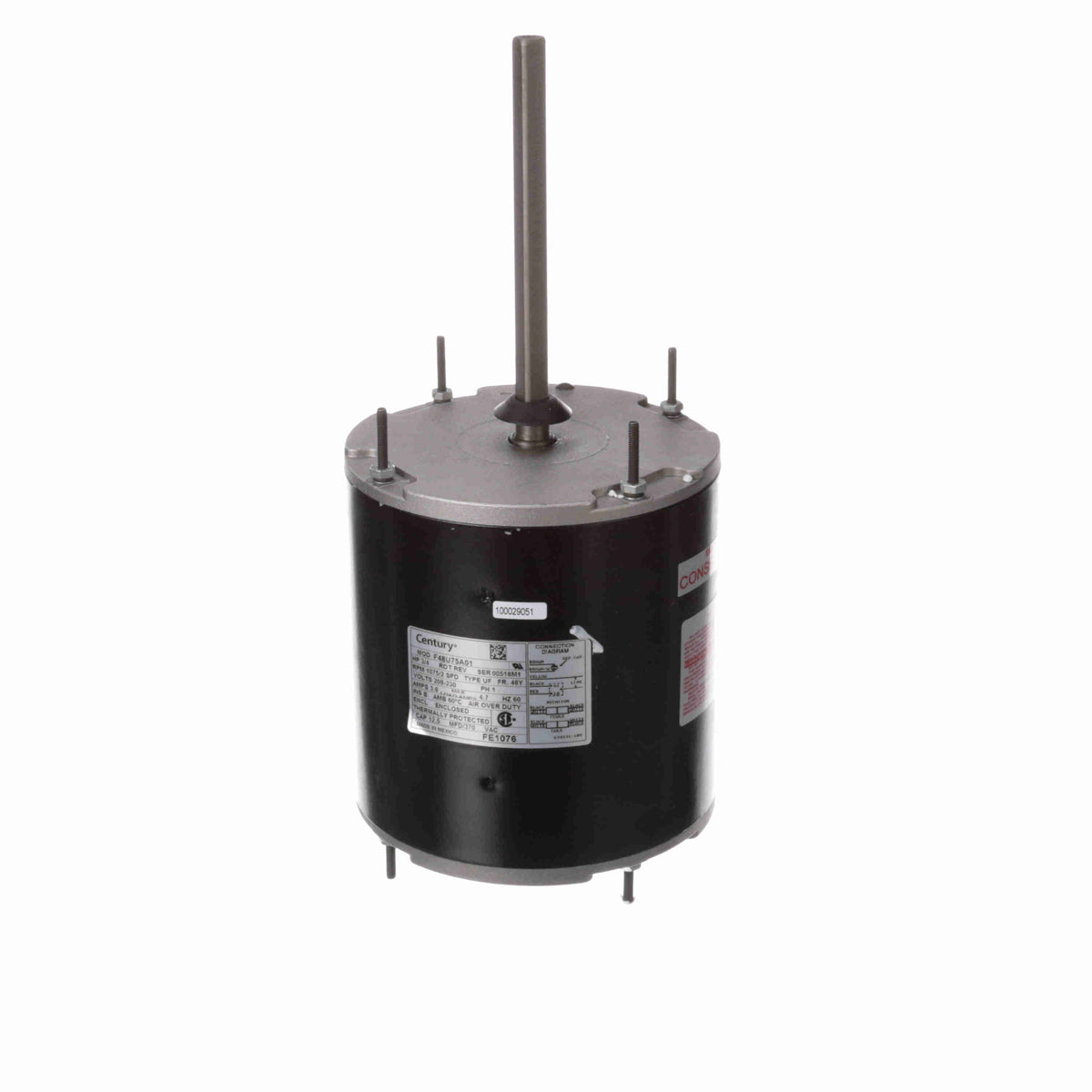

AO Smith FE1076 5.6-Inch Frame Diameter 3/4 HP 1075 RPM 208-230-Volt 3.8-Amp Ball Bearing Condenser

AO Smith FE1076 5.6-Inch Frame Diameter 3/4 HP 1075 RPM 208-230-Volt 3.8-Amp Ball Bearing Condenserzoom

Attributes

Key Value
Amps3.8
BearingsBall
Body Dia.5-5/8"
Capacitor12.5MFD @ 370VAC Requir.
Capacitor Required2MDV8
Country of Origin (subj.Mexico
DutyContinuous Air-over
Duty CycleContinuous
Enclosure TypeTEAO (Totally Enclosed .
FE1076 is listed in Cen.A.O. Smith F48SQ6V51, A.
FeaturesEnergy Efficient, Auto .
Frame48Y
Full Load Amps3.4-3.8
HP3/4
Hz60
Ins. ClassB
Insulation ClassB
ItemCondenser Fan Motor
Lead Length27"
Length Less Shaft5-7/8"
Max. Ambient Temp.60 Degrees C
Maximum Ambient Tempera.60? C
Motor ApplicationHVAC/R
Motor BearingsBall
Motor Diameter5-5/8"
Motor Mounting PositionAll Angle
Motor Service Factor1.00
Motor Sub ApplicationCondenser Fan
Motor Thermal ProtectionAuto
MountingBand/Stud
Mounting Stud Pattern3-5/8" x 3-5/8"
Nameplate RPM1075
No. of Speeds2
Number of Speeds2
Overall Length11-7/8"
Phase1
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1075
RPM Range1001-1100
Service Factor (SF)1.00
Shaft Dia.1/2"
Shaft Diameter1/2"
Shaft Length6"
Ship Weight21 lbs.
StandardsUL Recognized (E46412/E.
Stud Quantity4
Stud Size8-32 x 7/8, 8-32 x 9/16"
Thermal ProtectionAutomatic
Voltage208-230
Voltage Compatibility115/208-230, 208-230, 2.
Volts208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2528994147.841In StockCentury147.84 @ 1
thumbzoomemotorpro.comFE1076191.091In StockCentury21.0191.09 @ 1
thumbzoomsustainablesupply.comC2090886195.591In StockCentury15.0195.59 @ 1
thumbzoommidwestapplianceparts.comFE1076-AO-P222.331In StockAO Smith222.33 @ 1
