- mpnC22710
- brandname: Cle-Line
- manufacturername: Cle-Line

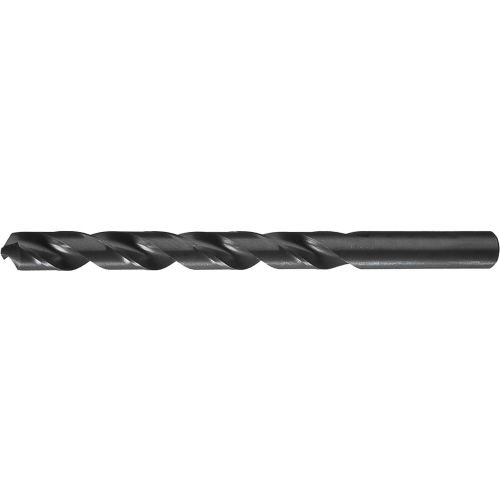

Jobber Bit, 5, High Speed Steel
- Brand: Cle-line
- PartNumber: C22710
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2055 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2055" |
| Diameter (Wire/Let) | 5 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black and Gold Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | #5 |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0617 in |
| Drill Size - Decimal In. | 0.2055 in |
| Drill Size - Wire | #5 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Black Oxide, Black and . |
| Flute Length | 2.5000", 2-1/2 in, 2 1/. |
| Flute Length (Metric) | 63.50mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 7/8 in |
| Number of Flutes | 2 |
| Overall Length | 3.7500", 3 3/4 in, 3-3/. |
| Overall Length (Metric) | 95.25mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 13/64 in |
| Shank Length | 1.2500", 1 1/4 in |
| Shank Length (Metric) | 31.75mm |
| Shank Size | 0.2055", 0.2055 in Dia . |
| Shank Size (Metric) | 5.22mm |
| Shank Type | Straight |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | #5 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C22710 | 1.42 | 1 | 12 | | Cle-Line | | 1.42 @ 12 |
 | heavydutydepot.com | C22710 | 1.42 | 71 | 12 | | Cle-Line | | 1.42 @ 71 |
 | MRO Supply | 6124303 | 1.97 | 26 | 12 | | Cle-Line | | 1.97 @ 26 |
 | usmegastore.com | C22710 | 2.16 | 1 | 12 | | Cle-Line | | 2.16 @ 12 |
 | Zoro | G1774141 | 2.29 | 1 | 228 | | Cle-Line | 0.02 | 2.29 @ 12 |
 | Raptor Supplies | AD6THH | 2.6257725 | 1 | 12 | | CLE-LINE | | 2.6257725 @ 12 |
 | sustainablesupply.com | C1465156 | 2.64 | 1 | 12 | | Cle-Line | 0.02 | 2.64 @ 12 |
 | National Supply Network | 57603268 | 3.9925 | 1 | 12 | | Cle-Line | | 3.9925 @ 12 |
 | Global Industrial | WBB2545135 | 18.5364 | 1 | 12 | | Cle-Line | | 18.5364 @ 12 |
