- mpnC22744
- brandname: CLE-LINE
- manufacturername: CLE-LINE

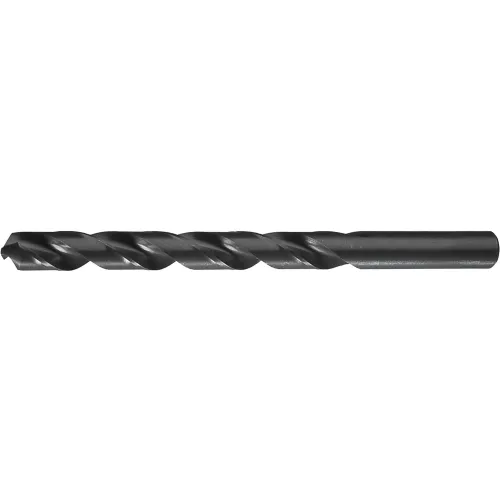

Jobber Bit, U, High Speed Steel
- Brand: Cle-line
- PartNumber: C22744
- PackageQuantity: 1
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3680 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3680" |
| Diameter (Wire/Let) | U |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Black and Gold Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | U |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0000 in |
| Drill Size - Decimal In. | 0.368 in |
| Drill Size - Letter | U |
| Drill Size System | Letter |
| Drill Style | Jobber Drill |
| Finish | Black Oxide, Black and . |
| Flute Length | 3.6250", 3 5/8 in, 3-5/. |
| Flute Length (Metric) | 92.07mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 23/32 in |
| Number of Flutes | 2 |
| Overall Length | 5 in, 5.0000" |
| Overall Length (Metric) | 127.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 23/64 in |
| Shank Length | 1 3/8 in, 1.3750" |
| Shank Length (Metric) | 34.92mm |
| Shank Size | 0.3680", 0.368 in Dia x. |
| Shank Size (Metric) | 9.35mm |
| Shank Type | Straight |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | U |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545144 | 3.9106 | 6 | 6 | | Cle-Line | | 3.9106 @ 6 |
 | Megadepot | C22744 | 4.56 | 1 | 6 | | Cle-Line | | 4.56 @ 6 |
 | usmegastore.com | C22744 | 4.61 | 1 | 6 | | Cle-Line | | 4.61 @ 6 |
 | heavydutydepot.com | C22744 | 4.61 | 22 | 6 | | Cle-Line | | 4.61 @ 22 |
 | MRO Supply | 6124337 | 4.77 | 11 | 6 | | Cle-Line | | 4.77 @ 11 |
 | Zoro | G1886972 | 5.25 | 1 | 179 | | Cle-Line | 0.07 | 5.25 @ 6 |
 | sustainablesupply.com | C1465182 | 6.58 | 1 | 6 | | Cle-Line | 0.07 | 6.58 @ 6 |
 | Raptor Supplies | AD7KXP | 6.6482325 | 1 | 6 | | CLE-LINE | | 6.6482325 @ 6 |
| AmazonSC | B00J9GKTO8 | 27.78 | 1 | 6 | | Cle-line | | 27.78 @ 6 |
