- mpnC23850
- brandname: CLE-LINE
- manufacturername: CLE-LINE

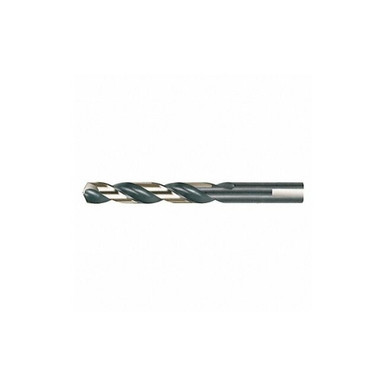

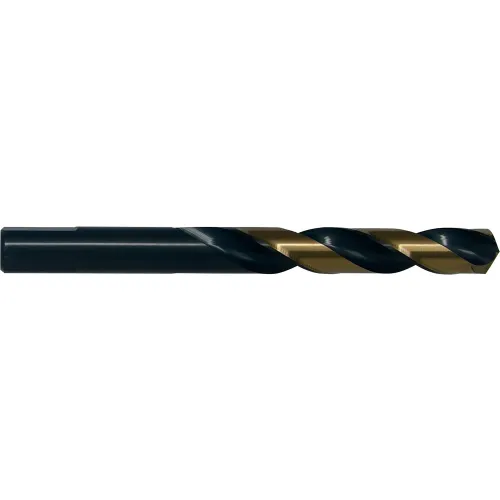

Mechanics Drill, HSS, 3/8, 135 Deg
- Brand: Cle-line
- PartNumber: C23850
- Model: C23850
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Low Carbon/Stainless St. |
| Application | For Use On Alloy, Stain. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 797 |
| Cutting Depth | 2-11/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3750 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3750" |
| Diameter (Fraction) | 3/8" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black/Gold |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 3/8 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Mechanics Length |
| Drill Point Length | 0.0777 in |
| Drill Size - Decimal In. | 0.375 in |
| Drill Size - Fraction | 3/8 in |
| Drill Size System | Fractional |
| Drill Style | Mechanics Length Drill |
| Finish | Black/Gold Oxide |
| Flute Length | 2-11/16 in, 2 11/16 in,. |
| Flute Length (Metric) | 68.26mm |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1875 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 1/2 in |
| Measurement System | Imperial |
| Mpn | C23850 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 4 1/4 in, 4-1/4 in, 4.2. |
| Overall Length (Metric) | 107.95mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 1875R |
| Shank Configuration | Straight w/ 3 Flats |
| Shank Dia. | 3/8 in |
| Shank End Feature | 3 Flats |
| Shank End Feature Length | 0.8750" |
| Shank Length | 1.5625", 1 9/16 in |
| Shank Length (Metric) | 39.69mm |
| Shank Size | 3/8 in, 0.3750" |
| Shank Size (Metric) | 9.52mm |
| Shank Type | Straight |
| SKU | ZO-G1810952 |
| Style | 1875R |
| SubCategory | Machining |
| Surface Condition | Black & Gold |
| Tool Size | 3/8" |
| Type | Heavy Duty |
| UPC | 697334238508 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545574 | 5.3 | 6 | 6 | | Cle-Line | | 5.3 @ 6 |
 | MRO Supply | 6125100 | 5.58 | 9 | 6 | | Cle-Line | | 5.58 @ 9 |
 | Zoro | G1810952 | 5.99 | 1 | 2349 | | Cle-Line | 0.09 | 5.99 @ 6 |
 | Megadepot | C23850 | 6.28 | 1 | 6 | | Cle-Line | | 6.28 @ 6 |
 | usmegastore.com | C23850 | 6.4 | 1 | 6 | | Cle-Line | | 6.4 @ 6 |
 | heavydutydepot.com | C23850 | 6.4 | 16 | 6 | | Cle-Line | | 6.4 @ 16 |
 | sustainablesupply.com | C1465313 | 8.29 | 1 | 6 | | Cle-Line | 0.09 | 8.29 @ 6 |
 | simsupply.com | ZO-G1810952 | 12.83 | 1 | 797 | | Cle-Line | | 12.83 @ 6 |
| AmazonTP | B000LDJJUI | 15.29 | 1 | 6 | 2 | Cle-Line | | 15.29 @ 6 |
