- mpnC09455
- brandname: CLEVELAND
- manufacturername: CLEVELAND

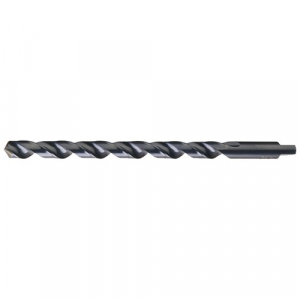

Cleveland 2540 High Speed Steel Long Length Drill Bit, Black Oxide, Round Shank with Flats, 118 Degree Notch Point, 5/32" (Pack of 10)
- Brand: CLEVELAND
- PartNumber: C09455
- Model: C09455
- Size: 5/32"
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Stainless . |
| Application | Automotive For Stainles. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 3 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1562 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | 5/32 in |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.0469 in |
| Drill Size - Decimal In. | 0.1562 in |
| Drill Size - Fraction | 5/32 in |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 in, 3 3/4 in |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 21 Degrees /34 Degrees |
| Item | Taper Length Drill Bit |
| List Number | 2540 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | Heavy Duty |
| Maximum Drilling Depth | 3 3/4 in |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Overall Length | 5 3/8 in, 5-3/8 in |
| Point Angle | 118 deg |
| Point Type | Notched |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Secondary Material Appl. | Alloy Steel, Cast Iron,. |
| Secondary Material Appl. | K, M, P |
| Series | 2540 |
| Shank Dia. | 5/32 in |
| Shank Length | 2 3/8 in |
| Shank Size | 0.1562 in |
| Shank Type | Tanged, Straight |
| Shank Type - Machining | Straight |
| Sizes Included | 5/32" |
| Spiral Direction | Right Hand |
| Standards | AIS |
| Style | 2540 |
| Surface Condition | Steam Oxide |
| Tool Size | 5/32" |
| Type | General Purpose Heavy D. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6110157 | 8.96 | 4 | 10 | | Cleveland | | 8.96 @ 10 |
 | usmegastore.com | C09455 | 9.3 | 1 | 10 | | Cleveland | | 9.3 @ 10 |
 | Zoro | G2996992 | 10.55 | 10 | 10 | 8 | Cleveland | 0.02 | 10.55 @ 10 |
 | sustainablesupply.com | C2975074 | 12.17 | 1 | 10 | | Cleveland | 0.02 | 12.17 @ 10 |
