CLEVELAND C16433

mpnC16433
brandname: CLEVELAND
manufacturername: CLEVELAND

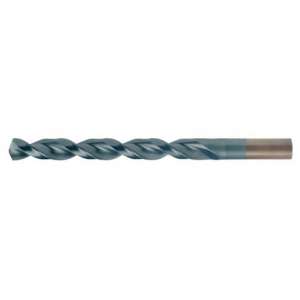

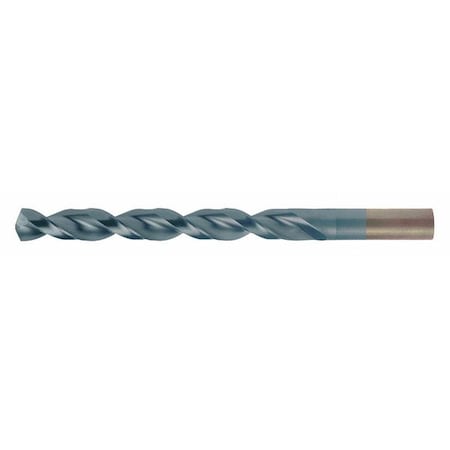

Cleveland 2075N Cobalt Steel Jobbers' Length Drill Bit, TiCN-Coated, Round Shank, 135 Degree Notch Point, D, (Pack of 1)

Cleveland 2075N Cobalt Steel Jobbers

zoom

Brand: CLEVELAND
PartNumber: C16433
Size: D
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Application	For Drilling Carbon Ste.
Construction	Wide Land Parabolic
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	United States
Cutting Direction	Right Hand
Decimal Equivalent	0.2460, 0.2460" / 6.25mm
Depth x Dia. Ratio	10xD
Depth:Dia. Ratio	10xD
Drill Bit Dimension Type	Letter
Drill Bit Finish	TiCN
Drill Bit Material	Cobalt Steel
Drill Bit Point Angle	135 Degrees
Drill Bit Point Type	Split Point
Drill Bit Size	D
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Jobber Length
Drill Point Length	0.0000 in
Finish - Machining	TiCN
Flute Length	2 3/4 in
Flute Type	Parabolic
Grade	Heavy-Duty
Hand of Spiral Cut	RHS / RHC
Helix Angle	35 Degrees to 45 Degre.
Item	Jobber Length Drill Bit
Length of Flute	2.7500" / 69.85mm
List Number	2075-TC
List Style:	2075-TC
Material	HSS-CO 8% (M42), Cobalt
Material - Machining	Cobalt
Material Grade - Machin.	M42
Maximum Drilling Depth	1 61/64 in
Measurement System	Letter
Number of Flutes	2
Overall Length	4.0000" / 101.60mm, 4 in
Point	135? Split
Point Type	Split
Primary Material Applic.	Aluminum, Brass, Bronze.
Primary Material Applic.	N, P
Secondary Material Appl.	Cast Iron, Stainless St.
Secondary Material Appl.	K, M
Series	2075-TC
Shank	Straight
Shank Dia.	15/64 in
Shank Length	1 1/4 in
Shank Size	0.2460" / 6.25mm
Shank Type	Straight
Shank Type - Machining	Straight
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	2075-TC
Surface Condition	TiCN
Tool Size	D

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6111682	15.48	3	10		Cleveland		15.48 @ 10
	Megadepot	C16433	17.29	1	10		Cleveland		17.29 @ 10
	usmegastore.com	C16433	17.68	1	10		Cleveland		17.68 @ 10
	Zoro	G2991228	22.1	1	10		Cleveland	0.04	22.1 @ 10
